EN

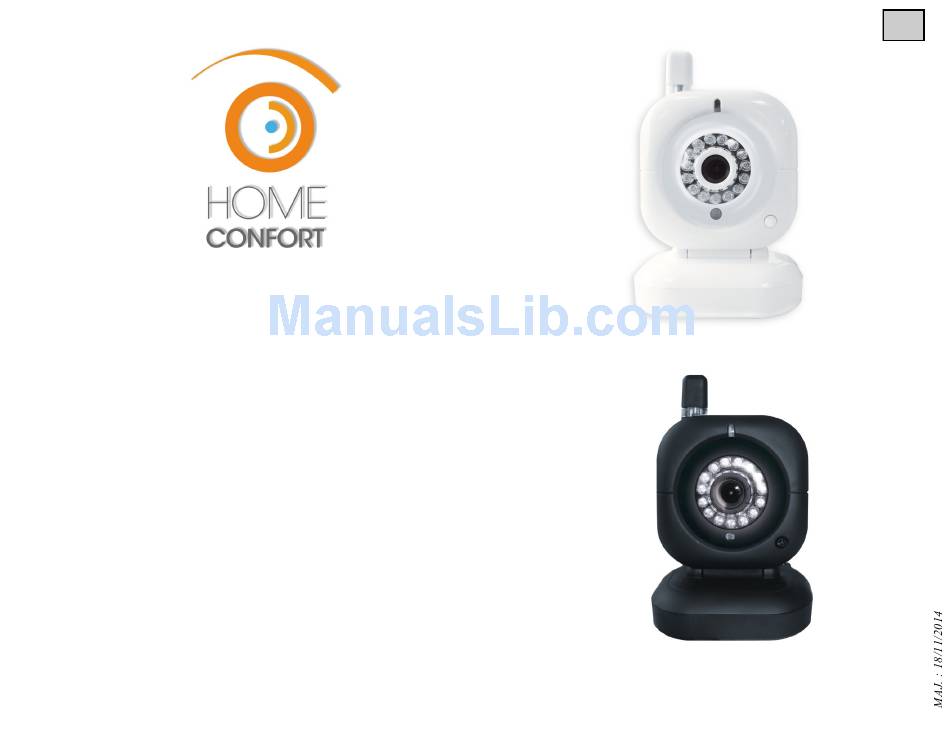

SURVEILLANCE KIT
IP camera : ELASA V2
Reference: CAM-I44FB V2 Gencod : 3539290022678
Distributed by IDK MULTIMEDIA
User GUIDE*
Version 1.4
* Please visit our website for the latest version.
Runs exclusively on our Home Confort platform.
Reference: CAM-I45FN V2 Gencod : 3539290023668
www.home-confort.net
1
Advertisement
Table of Contents
Summary of Contents for Home Confort ELASA V2
-
Page 1: User Guide
IP camera : ELASA V2 Reference: CAM-I44FB V2 Gencod : 3539290022678 Distributed by IDK MULTIMEDIA User GUIDE* Version 1.4 * Please visit our website for the latest version. Runs exclusively on our Home Confort platform. Reference: CAM-I45FN V2 Gencod : 3539290023668 www.home-confort.net... - Page 2 STANDARD SURVEILLANCE PACK: Free services included EN OPTION • Protected access to the secure Home Confort platform - Additional recording time • Direct, unlimited access to video surveillance cameras • Control up to 3 different locations (e.g. primary residence, holiday home, office) - Text alerts •...
- Page 3 - Internet access using cable/DSL box or router, or WiFi 802.11b/g/n Note: You must use a high-speed Internet connection to remotely view the images taken by the IP camera. CONTENT OF THE HOME CONFORT SURVEILLANCE PACK CAM-I44FB (white) / CAM-I45FN (black) Model ELASA Ref: ...
- Page 4 - In the event of a breakdown or defect, do not attempt to disassemble or repair the camera yourself; only individuals or organisations authorised by Home Confort can do this. - For outdoor use, you are advised to use a waterproof box to protect all of the camera's connections including the power supply unit.
-
Page 5: Safety Instructions
SAFETY INSTRUCTIONS · Keep out of the reach of children under the age of 36 months. · This camera can be used outdoors. However, be sure to protect its connections in a waterproof box (not included), including the power supply unit if is also located outdoors. ·... -
Page 6: Wifi Antenna
Camera description* Facing WIFI ANTENNA Infrared LEDs (x15) NETWORK LED SIGNAL For night vision LENS Manual adjustment ring Focus (blurry image) PHOTOSENSOR (Level of day/night light) MICRO SOCLE * photo no contractual www.home-confort.net... - Page 7 Camera description* Back view Green LED Indicates the network presence Yellow LED Indicates communications activity AUDIO OUT* *available according to version PLUG POWER Connect the AC adapter plug RJ 45 ETHERNET 100-240V~ Connection to your network access * photo no contractual www.home-confort.net...
- Page 8 Camera description* View from the side Back view (Down) RESET (Reset Tools) MULTI WALL SUPPORT POSITIONS Screws on the underside of the camera by tightening the knob * photo no contractual If the camera hangs, you can restart it without switching off the power. Hold down the Reset button for 20 seconds, then release.
- Page 9 Home Confort / Quick installation To install and register your camera, type in the following address into your Internet browser http://service.home-confort.net and follow the instructions to install your kit in just 5 minutes! You can download the latest version of the installation guide from our website: www.home-confort.net...
- Page 10 Should you encounter any problems during the installation or use of the product (software or hardware), only the HOME CONFORT technical support team is authorized to diagnose the problem. If you have any questions related to the installation of this product, or if you experience a failure upon installation (camera not recognised, cannot identify the WiFi network, cannot consult remotely, equipment failure, missing components, etc.):...
-
Page 11: Physical Specifications
Home Confort / Kit de surveillance INFORMATIONS ET CARACTÉRISTIQUES TECHNIQUES DE LA CAMERA Fonctions Éléments Description Sensor CMOS 1/5‘’colors Pixels 300k Image capture Minimum illumination 0.5 Lux (with active infrared LEDs) f=3.6mm, F=2.0, (Focus manually adjustable) Lens 60° viewing angle... - Page 12 This device functions on transmission frequencies: 2.4 GHz. It complies with European R&TTE Directive 1999/5/EC. You can download the declaration of conformity from our website: www.home-confort.net The product reference is: Réf: CAM-I45FN (Black) ou Réf: CAM-I44FB (White) www.home-confort.net...
