Summary of Contents for OPAX 60SD

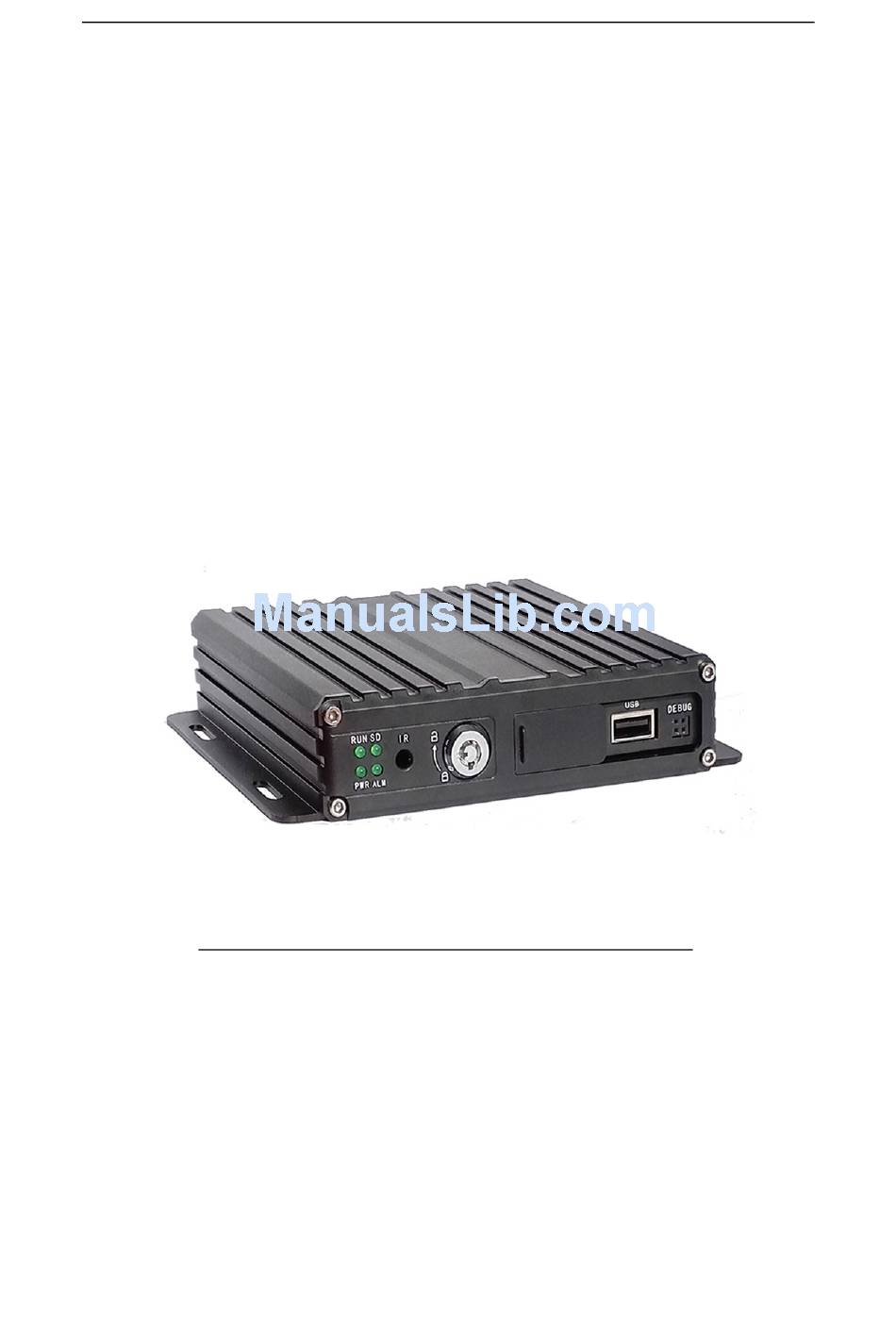

- Page 1 AHD MOBILE DVR Hardware User Manual OPAX-60SD AHD MOBILE DVR Hardware User Manual (OPAX-60SD) OPAX-60SD Modelimiz Wifi, 3G ve Wifi Desteklememektedir.
-
Page 2: Table Of Contents
AHD MOBILE DVR Hardware User Manual OPAX-60SD Catalogue Chapter 1 Accessories and Interface ..................1 1．MDVR and accessories ....................1 2．System connection ......................2 3．Panel introduction......................3 4．Interfaces Definition ....................... 3 4.1 Power interface ....................... 3 4.2 I/O Interface definition ....................4 4.3 Aviation interface definition .................. -
Page 3: Chapter 1 Accessories And Interface
AHD MOBILE DVR Hardware User Manual OPAX-60SD Chapter 1 Accessories and Interface 1．MDVR and accessories Before you use this product please check the accessories in the packing box. If there is anything missing or damaged please contact your seller. The MDVR and... -
Page 4: System Connection
AHD MOBILE DVR Hardware User Manual OPAX-60SD 2．System connection System connection... -
Page 5: Panel Introduction
AHD MOBILE DVR Hardware User Manual OPAX-60SD 3．Panel introduction Figure 1. Front panel Figure 2. Back panel 4．Interfaces Definition Here we introduce the definition of the interfaces of Power, I/O, AV Input & Output. See as following: 4.1 Power interface Figure 3. -
Page 6: I/O Interface Definition
AHD MOBILE DVR Hardware User Manual OPAX-60SD 4.2 I/O Interface definition Figure 4. Front view of I/O Interface I/O Interface definition Color Definition Color Definition Blue Alarm output Black Ground Alarm input Purple Purple Alarm input 1 2( Positive) Alarm input... -
Page 7: Antennas Connection
AHD MOBILE DVR Hardware User Manual OPAX-60SD open status, then pull the cover toward right, you will see the SD card slot. Figure 5. SD card Installation Please insert the SD card and SIM card into the slot as per the icon indication, Then close... -
Page 8: Power Connection
AHD MOBILE DVR Hardware User Manual OPAX-60SD Figure 7. Antennas Connection 3．Power Connection Please connect the power as per the definition of power interface. Positive pole (RED) connects with power input 10-36V DC, ACC ignition (YELLOW) connects with 5-36V DC. -
Page 9: Monitor Connection
AHD MOBILE DVR Hardware User Manual OPAX-60SD Figure 9. Cameras connection PS: Before you connecting the cameras, please double check the definition of the AV interface, please make sure your cameras are with same aviation interface definition with the DVR. -
Page 10: I/O Wires Connection
AHD MOBILE DVR Hardware User Manual OPAX-60SD 6．I/O wires connection When you're going to use it, please connect the wires as the I/O interface definition. You will also find tips of the interface definition in the DVR menu. 6.1 IR extension connection Figure 11. -
Page 11: Application Of Alarm Input（Reverse Assistant
AHD MOBILE DVR Hardware User Manual OPAX-60SD Figure 12. Alarm Input Connection I/O wires Alarm Trigger Definition Color Color Alarm trigger Alarm input2 Purple 5-32V Alarm input4 Purple Alarm input1 Purple Black Ground Alarm input3 Purple Alarm input Connection 6.2.1 Application of Alarm input（Reverse assistant）... -
Page 12: Application Of Alarm Input (Emergency Alarm)
AHD MOBILE DVR Hardware User Manual OPAX-60SD Positive pole of Alarm input 2 Purple Reverse light Reverse Assistance Connection Setup it in the DVR menu “Advanced” “RearCamera”, see as following, click “OK” to save your setting. Click”Zone” Adjust the lines by dragging the blue points AV: Please select the reverse camera’s channel... -
Page 13: Serial Ports Connection
AHD MOBILE DVR Hardware User Manual OPAX-60SD 1 with one terminal of the Emergency button, and connect the other terminal of the Emergency button with ground. Figure 15. Emergency button connection PS: (If the connected Alarm input is Positive trigger, the other end of the Emergency button will be 5-32V DC power) Setup it in the DVR menu “Alarm”... - Page 14 AHD MOBILE DVR Hardware User Manual OPAX-60SD Figure 17. Serial ports Connection I/O wires Peripherals Definition Color Color Definition Ground Black Black Ground TXD(TTL White Yellow level) RXD(TTL Yellow White level) Serial ports connection...
