Summary of Contents for FPVModel RESCUE-1

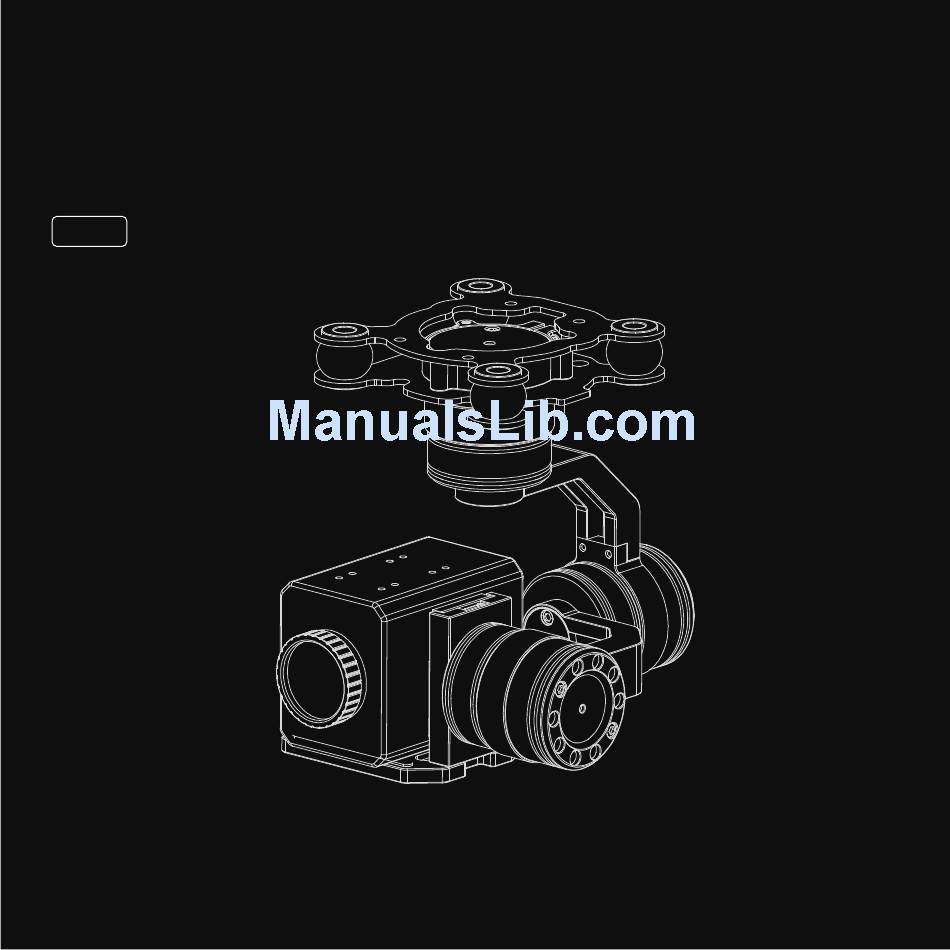

- Page 1 10x3D RESCUE-1 User Manual 10X Zoom Camera / Gimbal V1.1...
-
Page 2: Warning And Disclaimer
Product Introduction RESCUE-1 Gimbal is specially designed for 10X Zoom Camera. Factory default setting with parameters adjusted.The camera mounted on the gimal. And fix the gimbal on the aircraft upon received. -
Page 3: Gimbal Description
Gimbal Description [10] [1] Gimbal mounting plate Damping ball [2] Cable connector Cable jack [3] Cable jack Cable jack [4] Heading direction motor Pitch axis direction motor [5] Horizontal rollers direction motor [10] Camera Mounts Make sure that the motor is not blocked by anything during the rotation. If the gimbal from being blocked during the rotation , clear the obstacle immediately. -
Page 4: Packing List
Packing list Screw package x1 Gimbal x1 Ｍ2 x４ Phillips screws Ｍ2.５x５ Hex screw Spare damping ball x4 Rack mount x2 Mounting plate dimension drawing Unit：mm... - Page 5 Electrical @ Characteristics Working Current： Static current：220mA(@12V) Dynamic current：450mA(@12V) Input voltage： 3Ｓ（11.1Ｖ） Operating Temperature： -10° Ｃ ~ 50° Ｃ Dimensions： Ｌ90xW110xH115mm Weight：280g (不含相机) Working Performance Pitching Angle motion ranges: ±180° Roll axis control:±45° Pan axis control: ±360°continuous rotation Angle amount of jitter: pitch and roll directions：±0.02° Horizontal Direction：±0.03° INSTALLATIONS 10x Zoom Gimbal Suit Accessories...
- Page 6 Replace the damping ball according to individual demands...
- Page 7 Install the rack mount...
- Page 8 Install the camera...
- Page 9 Install the connecting cable...
- Page 10 Function Description ＶＴＸ of connect cable Ｒｉｇｈｔ Ｔｕｒｎ ｏｆ ｔｈｅ Ｇｉｍｂａｌ Ｚｏｏｍ Ｒｅｃｏｒｄｉｎｇ Ｍａｎｕａｌ Ｆｏｃｕｓ Ｐｉｎｃｈ ｏｆ ｔｈｅ Ｇｉｍｂａｌ...
- Page 11 Reminder：1. Pay attention to the voltage when using. 2. Notice the cathode and anode of the power supply. 3. Notice the needles row location when connecting cables. User's Manual updates without additional notice. You can browse and download on the FPVModel website.
