CIRCUIT DIAGRAMS

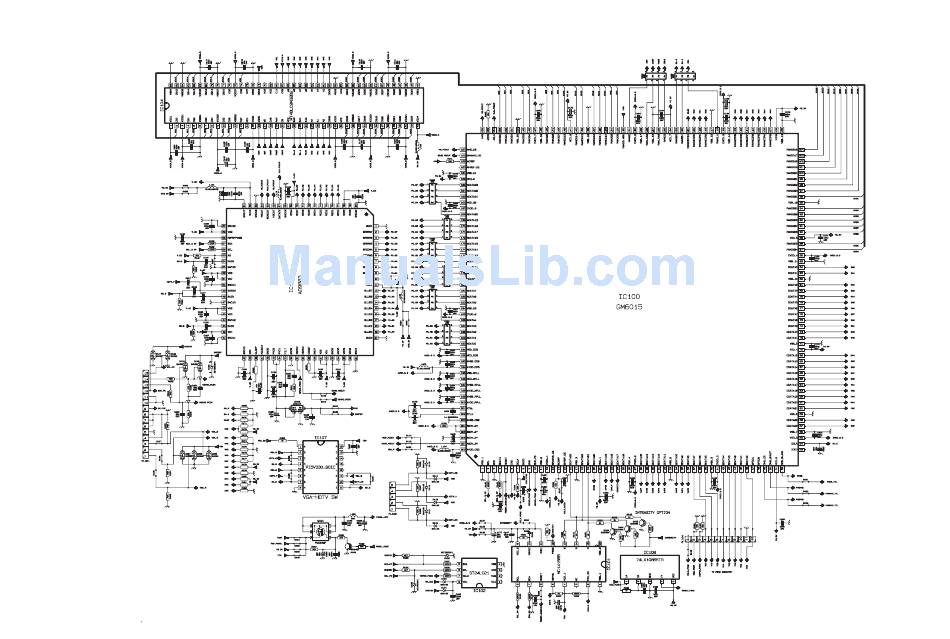

MAIN PWB CIRCUIT DIAGRAM (1/12)

MAIN PWB ASS'Y (1/12)
VE-20228287
(No.YA354)2-7
2-8(No.YA354)
