E-TOP PR626g User Manual

Power line router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

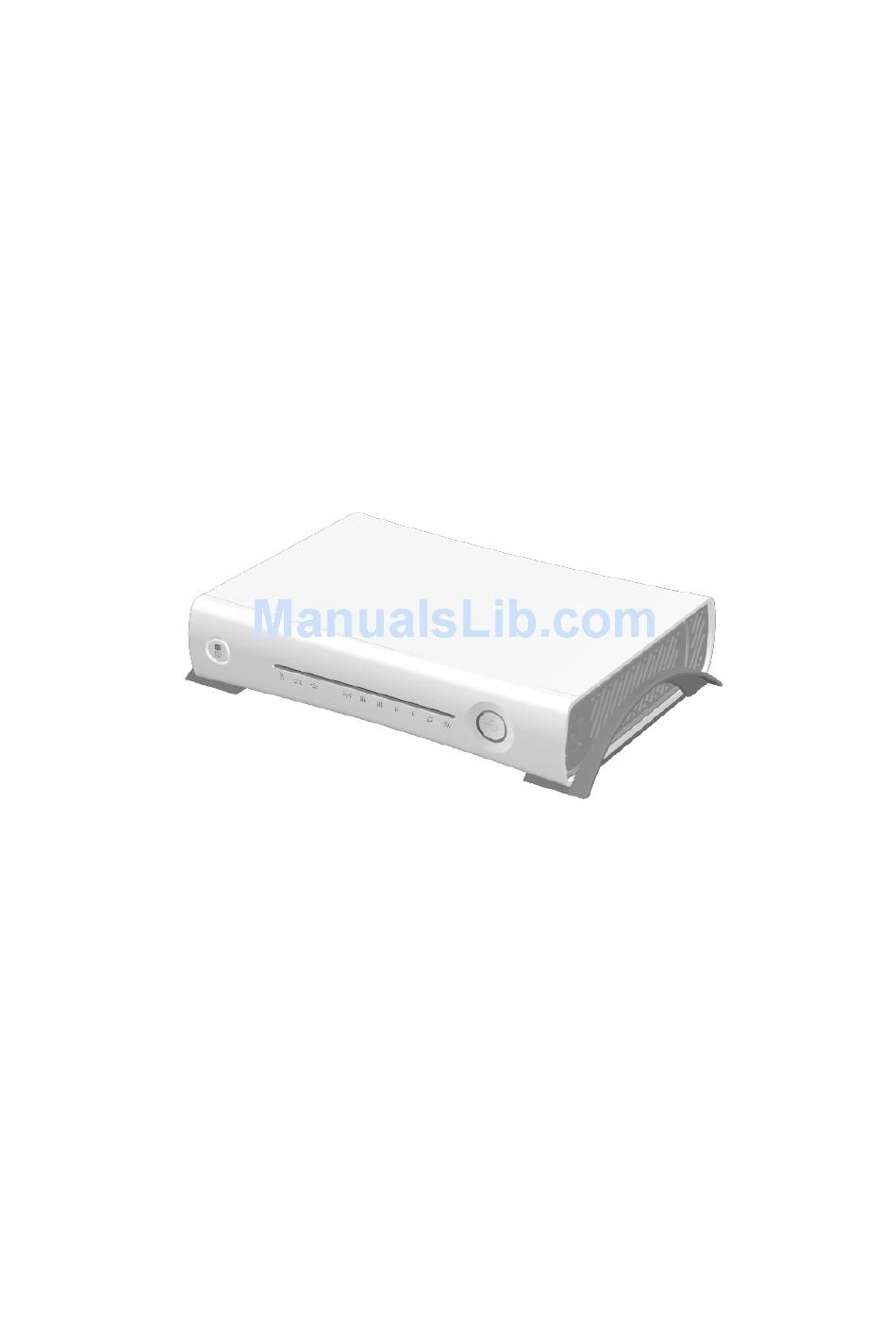

PR626g
Power Line Router
User Guide
1
Quick Setup Guide V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR626g and is the answer not in the manual?

Questions and answers

Related Manuals for E-TOP PR626g

Summary of Contents for E-TOP PR626g

  • Page 1 PR626g Power Line Router User Guide Quick Setup Guide V1.0...

  • Page 2: Table Of Contents

    Table of Contents TABLE OF CONTENTS ........................... 2 CHAPTER 1 INTRODUCTION......................4 PR626 NSTRUCTION OF ................4 EATURES ........................4 HE INTRODUCTION OF FUNCTION OF THREE ODES UICK ETUP ......5 1.3.1 The introduction of Quick Setup of Router mode........5 　...
  • Page 3 ARGET PPLICATIONS ......................23 Quick Setup Guide V1.0...

  • Page 4: Chapter 1 Introduction

    Navi PR626g also features with the Power Line, which can replace with Ethernet line, is very easy to use and much convenient for the users.

  • Page 5: The Introduction Of Function Of Three Modes Quick Setup

    wire mode. Encryption and authentication system It has the encryption and authentication system of WEP, WPA, WPA2, and 802.11x, provide the users with more data protection. 10. In-time monitoring function It can record the video of webcam for home safety monitoring. 11.

  • Page 6: The Introduction Of Quick Setup Of Ap Mode

    1.3.2 The introduction of Quick Setup of AP mode When you choose the AP mode, Navi PR626g will become a wireless AP. Navi PR626g can connect with the up Router or AP via LAN port, Wireless(WDS), and attain the IP via up DHCP.

  • Page 7: Basic Setup

    1.3.4 The main introduction of PC Utility Navi PR626g provides with the utility program, which can automatically detect the operation mode of Router and its connected USB device, so that it will help the users can easily and quickly do the setup step-by-step without entering GUI;...

  • Page 8: Hardware Specification

    Hardware specification 1.4.1 Hardware Features Item Specification Key Components Star 9105gu Flash ROM 8MByte (NAND Gate) DRAM 64MByte Communication Interfaces WAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX LAN Port 4 x 10/100 Mbps RJ45, with auto MDI/MDIX USB Port 2 x USB2.0 host interface, for USB printer, web cam, speaker and HD, MFP…etc.

  • Page 9: Hardware Block Diagram

    Receive Sensitivity Nominal Temp Range: 11Mbps: 10-5 BER @ -83 dBm, TYP. Dimensions 225mm(L) x 162mm(W) x 48mm(H) Button 1.Reset button – Press one second for device reset and press over 5 second for restore to factory default setting Power supply Adapt AC 100 V ~ 240 V in / DC 5V 2.5A output 1.4.2 Hardware Block Diagram...

  • Page 10: Led Feature Spec

    1.4.3 LED Feature SPEC Function Color Status Description Power Power indication Power is being applied to this Green product Active status Status System status Green Blinking Reset/Firmware updates in progress 120ms Connected at 100Mbps Yellow Blinking 10Mbps TX/RX Activity 30ms WAN port activity Connected at 10Mbps Yellow...

  • Page 11: Router Mode

    1.5.1 Router Mode Item Specification Major Modules Kernel uc Linux 2.4.x Protocol TCP/IP v4 Functions WAN connection Dynamic IP PPPoE Static IP PPTP Routing DHCP server/client, DNS server UPnP (Universal plug and play) One-to-Many NAT: Max 253 users Virtual Server: 20 sets virtual server DMZ Host: One DMZ host Firewall URL blocking: 20 sets rule based URL blocking...

  • Page 12: Ap Mode

    FTP Server Anonymous login User login MFP Server Printing via USB printer Support LPR protocol Provide the all in one printer sharing including scanner, printer and card reader. Support NPAP(Networking Printer Alliance Protocol) Two-way communication. Samba Server Provide share folder on LAN. Audio Server Provide share music on LAN.
  • Page 13 Web Camera Webcam view via browser by internet real time Video/Picture monitor and record to LAN/WAN PC Picture recording to FTP server or USB HDD MFP Server Printing via USB printer Support LPR protocol Provide the all in one printer sharing including scanner, printer and card reader.

  • Page 14: Client Mode

    1.5.3 Client Mode Item Specification Major Modules Kernel uClinux 2.4.x Protocol TCP/IP v4 Functions Site Survey Searching and connecting wireless access point (AP) Wireless IEEE 802.11g backward compatible IEEE802.11b 2. Authentication: Open System, Share Key, WPA, WPA-PSK. WEP Encryption: 64/128 bit 3.

  • Page 15: Necessary Approvals

    Network configuration Even Log User Account List Web-based interface, accessible from IE, Mozilla and Netscape. Wizard supported. SNMP Embedded SNMP agent, standard and proprietary MIBs. HP Open View compatible. Software Upgrade Remote upgrade Upgradeable from Web and TFTP, checksum supported Driver upload Upload USB MFP Scanner Driver Necessary Approvals...

  • Page 16: Appendix

    Appendix The following points are the Navi PR626g USB Device Support List: 1.7.1 Navi PR626g support LPR protocol, ie if the printer driver could install on Windows 98/2000/XP. The printer can work on Navi PR626g product series. MFP List Samba...

  • Page 17: Web Camera

    If you need to check the support list, Please visit the 2 websites in below. http://www.sane-project.org/sane-mfgs.html http://hplip.sourceforge.net/ 1.7.2 Web Camera Navi PR626g support OV511 、 OV511+ and SAA8115HL 、 SAA8116HL web cam chipset only. Vendor name Product name Chipset Tested...
  • Page 18 Hawking Tech. PD-300 OV511 Hawking Tech. UC-110 OV511+ Hawking Tech. UC-300 OV511 Hawking Tech. UC-310 OV511 I-View NetView NV300M OV511 Intel Me2Cam OV511+ LG Electronics LPC-UM10 OV511+ LG Electronics LPC-UM15 OV511+ Lifeview USB CapView OV511+ Lifeview RoboCam OV511 Lifetec LT 9388 OV511 Logitech QuickCam 3000 Pro...

  • Page 19: Usb Hdd

    TerraCam USB PRO OV511+ Waytech I-Pac VIC-30 OV511+ Webeye 2000B OV511+ 1.7.3 USB HDD Navi PR626g support FAT16 and FAT32 format file system. Below list is tested product Vendor Model Name Chipset Note Tested MEMORY BLOCK 積木碟 Panram USB2.0 USB2.0 威剛...

  • Page 20: Operation System

    32MB 捷元 黑麻吉 SD 讀卡 MP3 昕威電子 Transcend JetFlash 128 MB USB 2.0 SanDisk Curzer Mini Flash 256MB USB 2.0 Cool Drive(U339) 128 MB USB 2.0 勁永 KingMax 128MB USB 1.0 跳鼠王 風行 SONA 128MB Kinggaroo USB 2.0 USB HDD Vendor Model Name Chipset Note...

  • Page 21: Chapter 2 Technology Overview

    Chapter 2 Technology Overview Introduction of INT5500 Chip Set (Home Plug1.0 with Turbo) Intellon's high speed powerline chipset INT5500CS is comprised of the INT5500, an integrated powerline MAC/ PHY transceiver, and its companion INT1200, an analog front end IC. The INT5500CS is fully compatible with the HomePlug1.0 with Turbo specifications, and capable of delivering up to 85 Mbps over the power line.

  • Page 22: Chapter 3 The Main Frame Of Family Applications

    INT5500CS, including data sheets, reference manuals, configuration utility software and production test capabilities, together with a proven technical support team to shorten customer  time to market. The INT5500CS provides two types of host interface for maximum system flexibility: An MII PHY (IEEE 802.3u) interface for interconnection to Ethernet •...
  • Page 23 Target Applications The following main points are the target family applications: High Definition (HD) and Standard Definition (SD) video distribution • TV over IP (IPTV) • Backbone for WiFi, UWB and Wireless USB • Higher data rate broadband sharing • Shared broadband internet access •...

  • Page 24: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
