DLA ENGINE OPERATING-INSTRUCTION
GS R/C
MANUAL

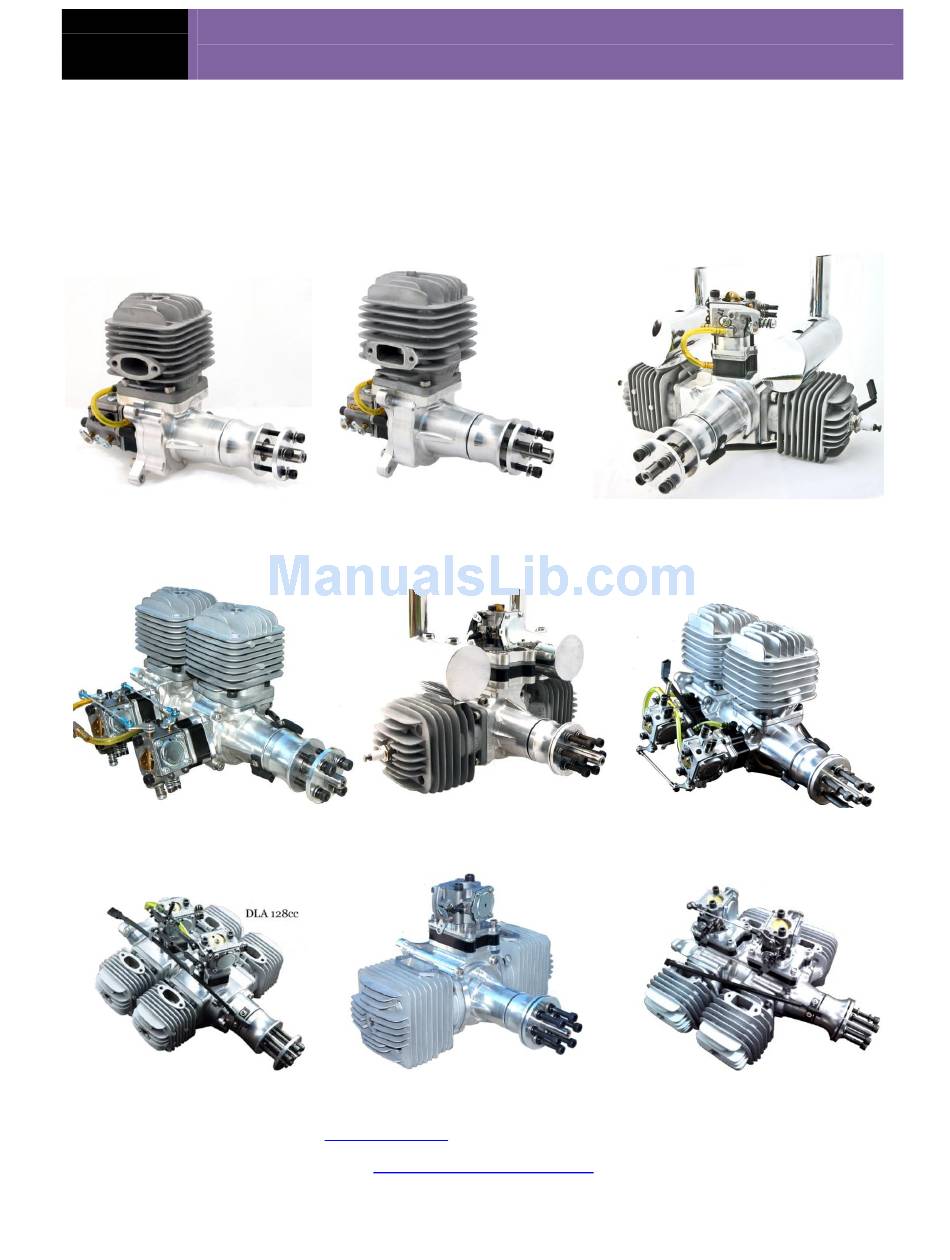

DLA 2-CYCLE GAS ENGINES FOR MODEL AIRCRAFT
This Manual presents the necessary information for the operation of all DLA 2-cycle gasoline,
DLA 32, 58, 64, 64-I2, 116cc, 116cc-I2 and 128cc QUAD
Model Airplane Engines.
DLA 32cc
DLA 58cc

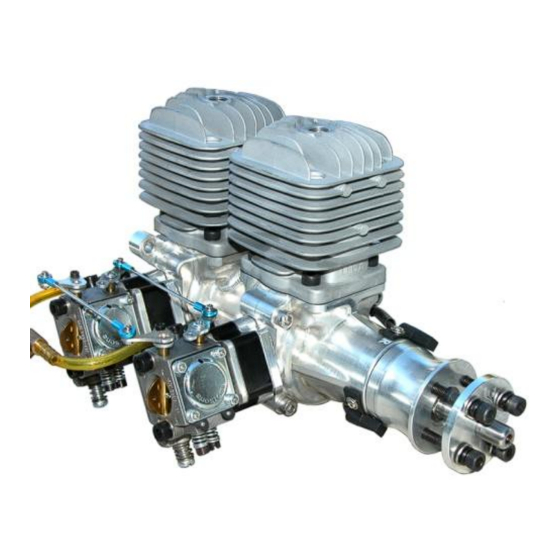

DLA 64cc Twin-Boxer
...................
DLA 64-I2 In-Line
DLA 116cc Twin-Boxer
DLA 116cc-I2 In-line
DLA 128cc QUAD-Boxer
DLA 18cc Twin Boxer
DLA 232cc QUAD Boxer
USA Distributor: GOLDEN SKIES R/C
Manufactured by: FeiaoModel,
;
www.dlaengine.com
Aircraft,
www.goldenskiesrc.com
Inc.
949-378-5998
Copyrighted Material
06/29/2016
Owner's Manual
All Rights Reserved
03180-10000
Page - 1
DLA 32, 58, 64, 64-I2, 116, 116-I2 & 128cc, 180c, 232cc
Rev. A.05.11
