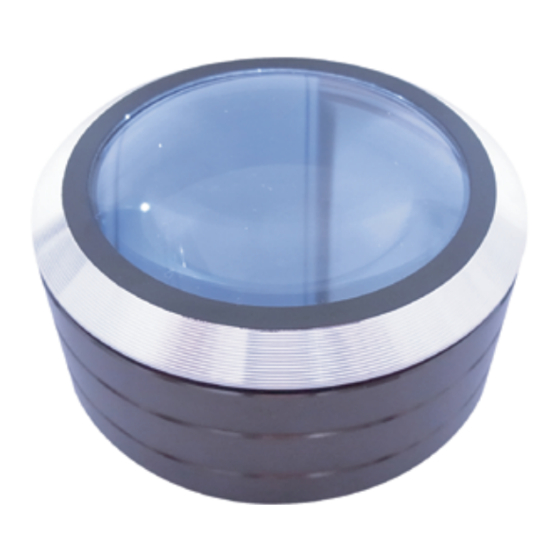

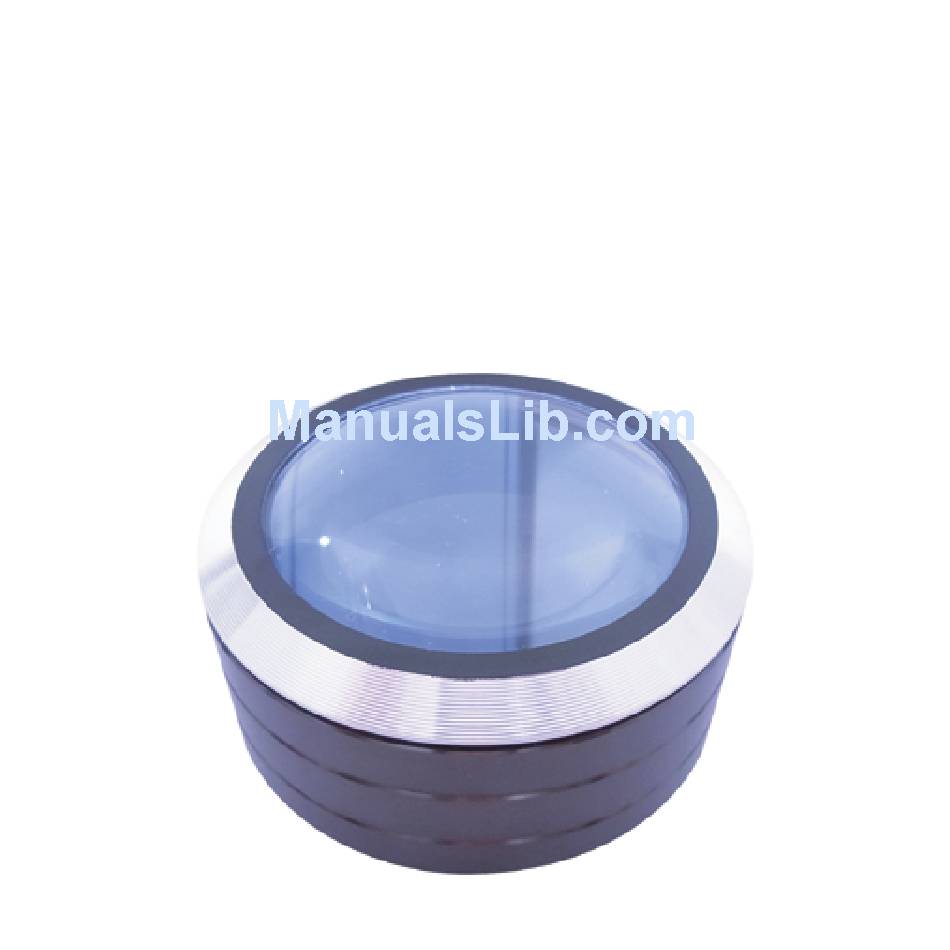

Page 1 LED MagnifierSmolia 3R-SMOLIA-5 Operation Manual 3R SYSTEMS CORP.
Page 2 Contents The product contains objects below. Please check if they are inside the package. ●Magnifier 3R-SMOLIA-5 ●Hard case ●Cleaning cloth ●Manual ●Button battery CR2016 x2※1 ※1 The Button battery is for testing. Maximum working hours might be different from the spec in this manual...
Page 3 Insert and change the battery The Magnifier works with two pieces of button battery(CR2016※) Please face lens part outside and you will find battery box inside. Pull cover in the direction of the arrow so you will see the space for battery.
Page 4 Use LED light on magnifier Smolia is equipped with LED light. Before using, please turn on the switch at leftside of the battery box. Please move it to leftside to unlock. Move switch to leftside Next, please put Smolia on desk and press lens part gently. Lens part plays role of switch so each press will change LED light’s status.
Page 5 For your safety Thank you for buying our product, ‘Smolia’, this time. The contents mentioned below are to avoid hazard to you and others. Please read and follw each section carefully when you use it. DO NOT look at sun or strong light with ‘Smolia’ Please DO NOT see the objects which emit strong light such as sun and illumination.
Page 6 Avoid using with wet hands It could lead to electric shock. DO NOT use it when it has been damaged The product contains glass material. Please DO NOT use it when it is damaged or it could lead to serious injury. DO NOT point LED light at others Please DO NOT point LED light to others or your eyes.
Page 7 Spec Magnification Approx x5※ Light source White LEDｘ3 Working hours Maximum 5 hours(CR2016 x2） Shape（magnifier） Approx φ92x52mm Weight Approx 215g ※About magnification The written magnification is magnification of lens part. The actual Magnification might be different when you put it on the desk. The written magnification is based on focal range of 200mm.
