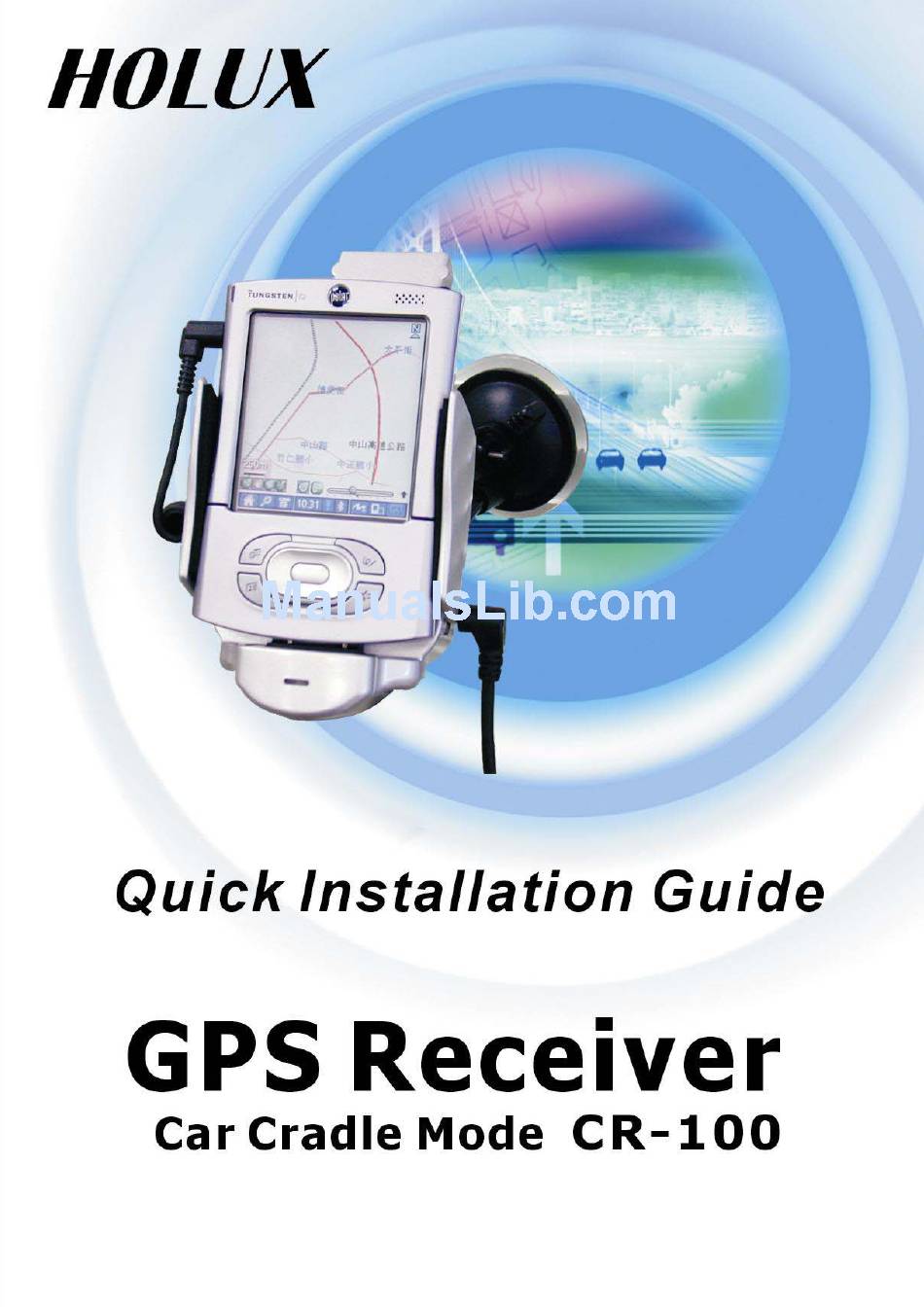

- Page 1 支架型衛星接收機 2004 年 6 月 30 日修訂 長天科技股份有限公司 新竹縣竹北市台元街 26 號 8F-11 TEL：03-552-6268 FAX：03-552-6108 E-MAIL: info@holux.com.tw WEB: www.holux.com.tw 版權所有 請勿翻印...
-
Page 4: Components And Installation
0. Components and Installation PDA Connecter LED Indicator GPS Receiver... - Page 5 PDA Speaker Input Sound Volume PDA to Sound Connecter Power Input 12~24V IN Car Battery Adapter...
- Page 6 0.1 Choose an appropriate holder model to go with your PDA. Model PDA type CR100-I1 IPAQ 38xx,39xx CR100-P1 Palm TUNGSTEN T3 CR100-D1 Dell X3 CR100-M1 Mio 528 CR100-I2 IPAQ 2210 0.2 Pull the arms of a clamp out from both sides of the holder and gently place your PDA on the base of the holder.
- Page 7 HOLUX Product series With HOLUX, You never lose the way! 1. Function The GPS antenna of the built-in GPS receiver can be rotated 90 C to enhance the sensitivity of receiving signals. This product adopts the SiRF II high-performance power saving chip to greatly reduce the size and easily integrate with the customer’s...
- Page 8 HOLUX Product series With HOLUX, You never lose the way! 2. Electric Parameters of the Holder Input voltage： DC: 12V~24V Output voltage and current: Output Output Current Range Output Voltage Range DC +5V 0.0A DC 4.75V DC 5.25V The operating efficiency is over 60%.
- Page 9 12 times. 4.4 Constant Humidity/Temperature Test Place the CR-100 in an environment at the temperature of C and the ambient humidity of 90%〜 95%RH for 96 hours, and then place it an environment at room temperature for 1 hour.
- Page 10 After the position fix is calculated, the information about valid position, velocity and time will be transmitted to the output channel. The CR-100 utilizes the initial data such as last stored position, date, time and satellite orbital data to maximize acquisition performance. If there exists a significant inaccuracy of the initial data, or an obsolete orbital data, it may take more time to obtain a navigation solution.
-
Page 11: Software Interface
Error estimates Satellite and receiver status Software interface. The CR-100 interface protocol is based on the National Marine Electronics Association's NMEA 0183 ASC interface specification, which is defined in Ⅱ NMEA 0183, Version 2.2 and the Radio Technical Commission for Maritime Services (RTCM Recommended Standards For Differential Navstar GPS Service, Version 2.1, RTCM Special Committee No.104). -
Page 12: Global Positioning System Fix Data (Gga)
HOLUX Product series With HOLUX, You never lose the way! 6.3.1 Global Positioning System Fix Data (GGA) Table 6-2 contains the values for the following example: $GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M, , , ,0000*18 Table 6-2 GGA Data Format Name Description Example Units Message ID... - Page 13 HOLUX Product series With HOLUX, You never lose the way! 6.3.2 Geographic Position with Latitude/Longitude(GLL) Table 6-4 contains the values for the following example: $GPGLL,3723.2475,N,12158.3416,W,161229.487,A*2C Table 6-4 GLL Data Format Name Units Description Example Message ID $GPGLL GLL protocol header Latitude 3723.2475...
- Page 14 HOLUX Product series With HOLUX, You never lose the way! <CR> <LF> End of message termination 1. Satellite used in solution. Table 6-6 Mode 1 Value Description Manual—forced to operate in 2D or 3D mode 2DAutomatic—allowed to automatically switch 2D/3D...
- Page 15 HOLUX Product series With HOLUX, You never lose the way! Azimuth degrees Channel 4 (True, Range 0 to 359) SNR (C/No) dBHz Range 0 to 99, null when not tracking Checksum <CR> <LF> End of message termination (1). Depending on the number of satellites tracked multiple messages of GSV data may be required.
-
Page 16: Order Information
IPAQ 2210 8.Warranty The CR-100 is warranted to be free from defects in material and functions for one year from the date of purchase. Any failure of this product within this period under normal conditions will be replaced at no charge to the customers. -
Page 17: Fcc Notice
FCC Notice...
