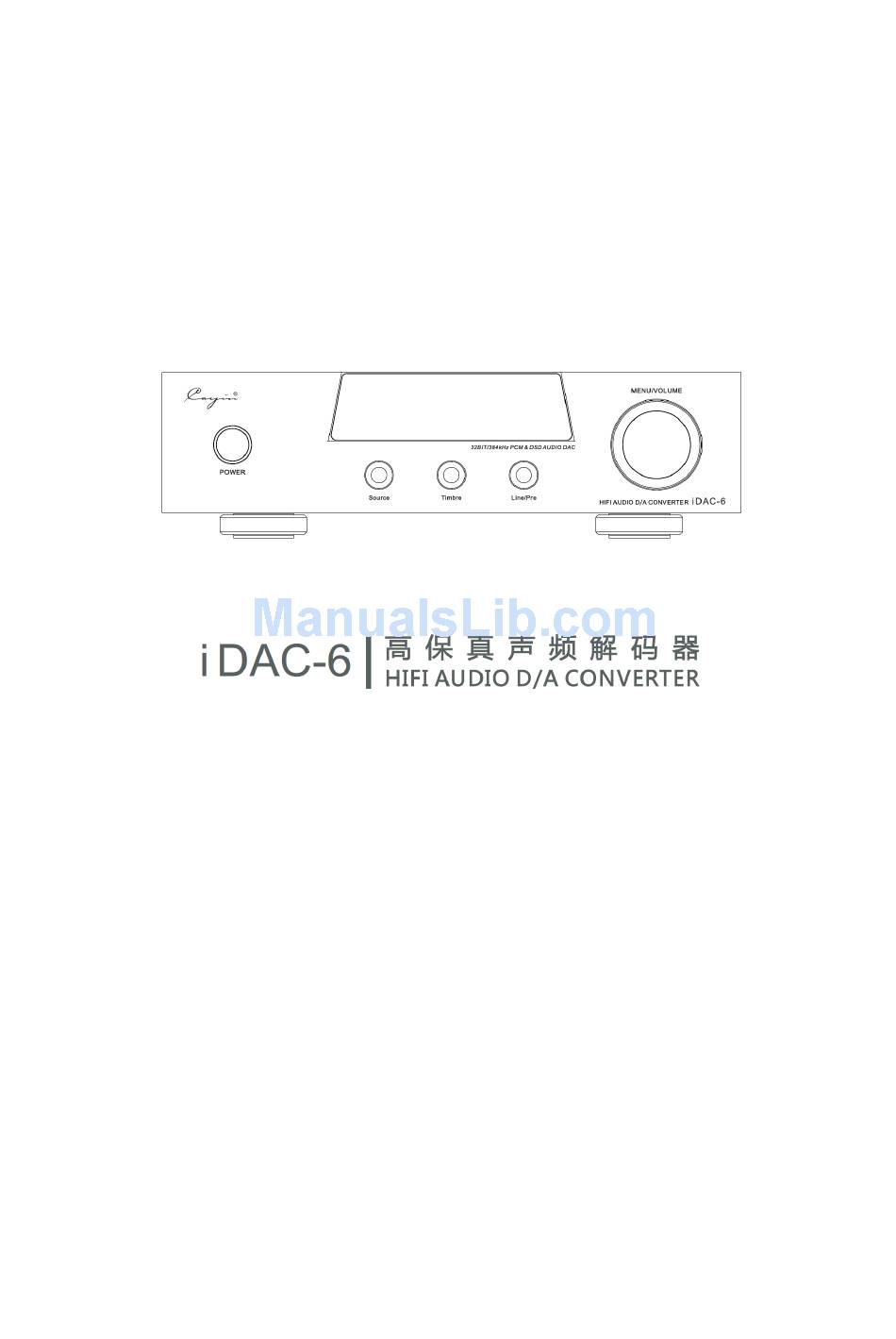

- Page 1 User Manual...
- Page 2 We want to thank you sincerely for choosing iDAC-6 HiFi Audio D/A Converter. We have prepared this user manual to help you understand the features and get familiar with the operation of the DAC. We suggest all customers read through this manual before they start to use the device.
- Page 3 Design Features Independent power supply to digital circuit and analogue circuit, left/right channel of digital circuit, DAC circuit and analogue circuit are powered by independent power supply system, reduce power interference among different circuit, and make sure all components will have clean power all the time. ...
-
Page 4: Power On/Off

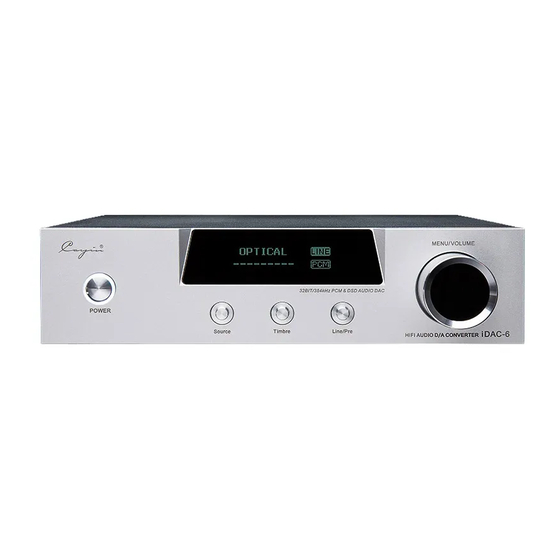

Diagram 1：iDAC-6 Front Panel illustration Front Panel Functional Description POWER On/Off Turn on and off. Press down the button to turn on the DAC, Press again the button will resume to original position and the DAC will power off. Power indicator, indicate the working status of the DAC... - Page 5 Diagram 2：iDAC-6 Rear Panel illustration Rear Panel Functional Description Single-ended connector (RCA) Connect the single-ended output of the DAC to the single-ended input of an amplifier with a pair of RCA audio signal cable, please make sure the left and right channel is connected correctly.
- Page 6 Note: Please make sure the AC Voltage Selector is setup correctly for your local power supply voltage. Incorrect input voltage setting will cause damage to the machine or might even lead to serious household accident, Cayin reserves the right to refuse service or responsibility on related instances.
- Page 7 DAC Install Driver If you plan to use iDAC-6 with a window-based computer, you need to install a USB Audio Driver in your computer before you can use the DAC as an outboard USB sound card for your system. You can install the driver from the following url: http://en.cayin.cn/html/down/qdxz...
- Page 8 (5) Select “Cayin iDAC-6” or “XMOS XS1” as audio output device in your computer playback software Basic Operation Please make sure the AC Voltage Selector is setup correctly for your local power supply voltage. When selector is set at “230” (as displayed on the selector), the DAC is set to work with 220V-240V power supply voltage.
- Page 9 12. The machine will become hot during operation, Please keep the DAC at a well-ventilated environment and do not cover the DAC with anything. 13. Please Contact your Cayin agent or retail shop, or our after-sales service if the...
-
Page 10: Troubleshooting
Sometime the problem are related to associated equipment or cables, please also check and make sure everything is in proper condition. Please contact your Cayin agent or retail shop, or our after-sales service if the problem cannot be rectified. - Page 11 Specification Output Level Line Out RCA：2.2V RMS BAL:4.4V RMS Pre Out RCA：2.2V RMS (Max.) BAL:4.4V RMS (Max.) Frequency Respond 20Hz~30kHz (±0.5dB，Fs=192kHz) Tube: ≤0.8% (Fs=192kHz) THD+N Transistor: ≤0.004% (Fs=192kHz) Tube: ≥105dB (A-weighted) Transistor: ≥110dB (A-weighted) DSD: support DSD64 及 DSD128 USB capability PCM: support upto 32Bit/384kHz AES/EBU, Coaxial, PCM: support upto 24Bit/192kHz...
