Summary of Contents for Linnenberg Vivace

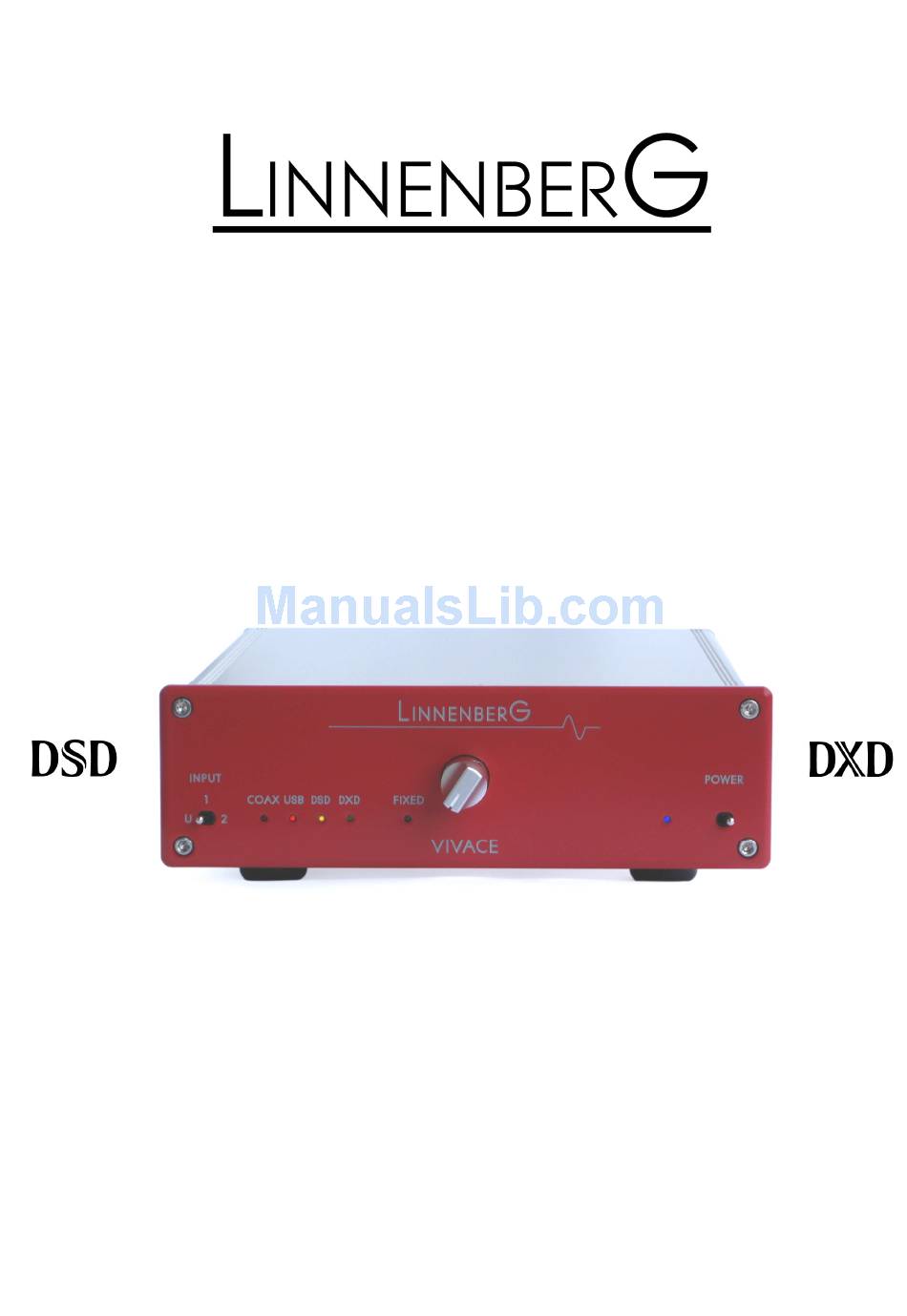

- Page 1 Owner’s Manual VIVACE...
- Page 2 Computer audio is future proof. The second essential digital audio format is S/PDIF (Coax 1 + 2). The VIVACE supports sample rates up to 192kHz and bit depths up to 24bit. The S/PDIF inputs are intended for high performance CD drives as well as for ©...
- Page 3 Controls - front USB <-> Coax 1 <-> Coax 2 Power (on/off) switch: the select switch: the three on/off switch disconnects way toggle switch is used the unit from the DC to select the input from power supply when which the DAC receives switched off.
- Page 4 Connections - rear Connect Coax – input: USB – input: the USB the power 2x RCA input employs supply to connectors are standard female B the power provided for connector. inlet. correct hook- Connect to the host up of shielded computer with 75 Ohm...
- Page 5 Operation The wall adaptor provided with the unit is connected to the VIVACE power inlet. The line operating voltage of this high performance power supply can range from 100V – 240V. The mains plug conforms to the sockets used in the destination country. Should for any reason you decide to use a different power supply, be sure it can deliver 15V DC, regulated @ 2A.
- Page 6 “setup64.exe” or “setup32.exe”, depending on your operating system: the driver will be installed in your PC. Restart your PC or Notebook and connect the VIVACE to the host for the first time. The VIVACE will now be recognized as usable device.
- Page 7 32bit That’s the default setting for PCM files like WAV, FLAC or even MP3. In order to use the DSD capability of the VIVACE, you have to do the following: First, you need to download and install the Super Audio CD Decoder plug‐in at:...
- Page 8 If you don’t see the control panel it is minimized on your task bar. Configure ASIO4ALL by selecting “Ivo Linnenberg Elektronik USB driver 1.0.56”. Click on the little icon to highlight it. Now configure “foo_dsd_asio” by selecting ASIO4ALL as the ASIO driver.
- Page 9 Specifications Sampling frequencies PCM : 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz ; S/PDIF – input limited to 192 kHz max. Resolution PCM : 32bit Resolution DSD : DSD64 (2.8224MHz) and DSD128 (5.6448MHz) over DoP protocol Master clock jitter : 82 fs (femto seconds) Frequency response : DC - 24kHz +0.1dB -0.5dB...
- Page 10 The serial number is an essential part of our conformity declaration and therefore of the approval for operation of the VIVACE. The serial numbers on the unit and in manual, must not be removed or modified, and must correspond.
-
Page 11: Warranty Certificate
In the event that LINNENBERG ELEKTRONIK receives, from an original purchaser and within the warranty coverage period, written notice of defects in materials or workmanship, LINNENBERG ELEKTRONIK will replace the product, repair the product, or refund the purchase price at its option. - Page 12 © Linnenberg Elektronik 2014...
