Summary of Contents for stereotec Side-by-Side Rig

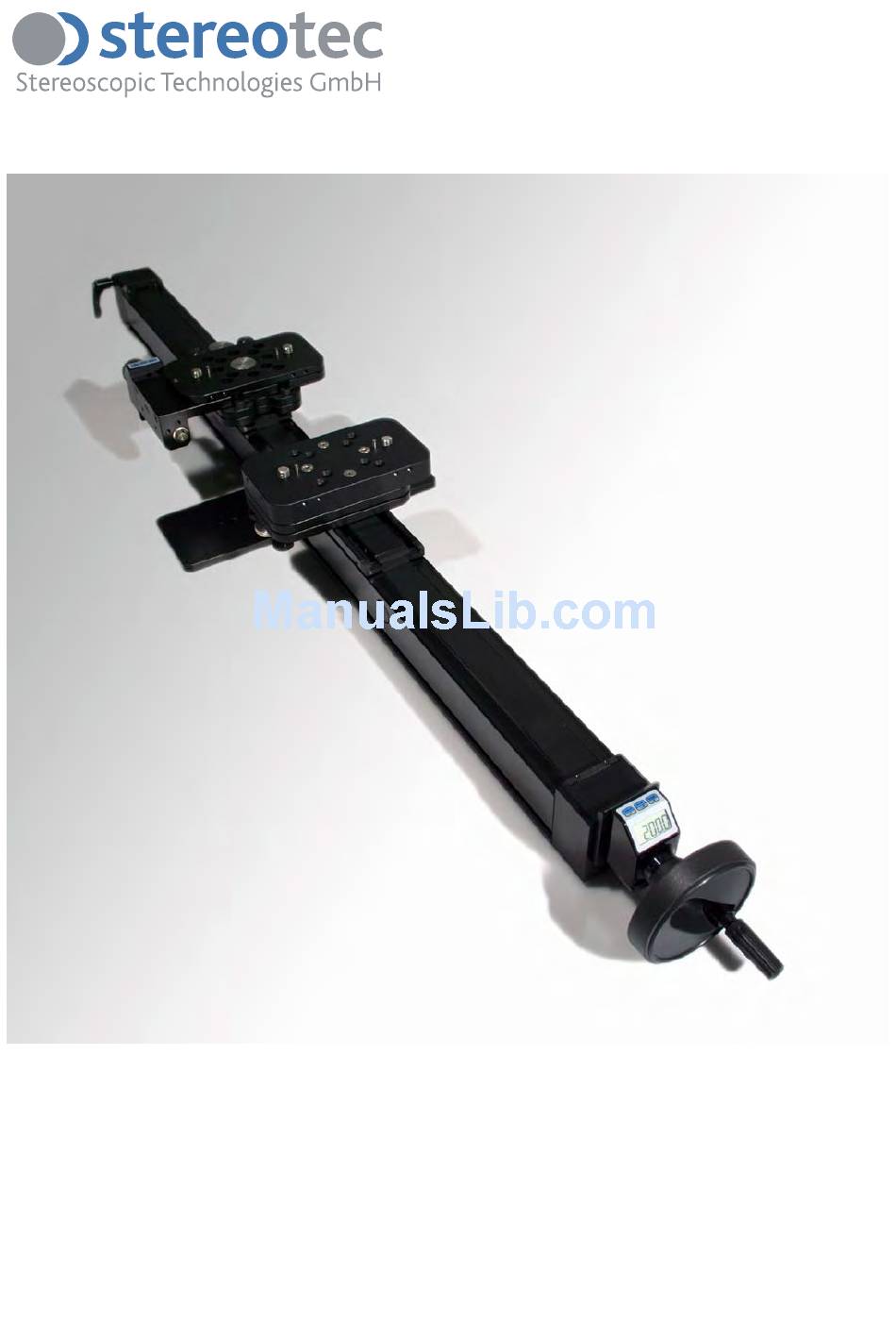

- Page 1 CEV.FR Side-by-Side Rig User Manual English Version 1.0 Before operating this product, please read the instruction carefully and save this manual for future use.
-
Page 2: Introduction
Introduction The Side-by-Side Rig is a modular rig for stereoscopic recording. This professional tool en- ables the user to record stereoscopic content with interaxials from 9 cm till XX cm. It uses a high precision threaded control rod to align the distance between the two camera mounting tables - this is crucial to achieving the precision you need for quality 3D production. -
Page 3: Table Of Contents
The stability may be lost and the camera-setup can be bro- ken. Maximum weight: Use the Side-by-Side Rig only on fixed tripods which are able to handle the total weight of the complete setup (rig + 2x cameras + 2x lenses). -
Page 4: Overview
Overview Description: Crank-handle to adjust the interaxials between 90 mm and XXX mm Motorization (optional) for the interaxial adjustment, otherwise locking screw Rotary table with optional motorization and optional tilting module for camera fine adjust- ment roll Adjustment wheel with electronic counter (resetable for calibration; with computation in degrees) and optional motorization Non-rotary table with optional tilting module for camera fine adjustment tilt Tripod mounting plate... -
Page 5: Mechanical Setup
The tripod plate (6) is fixed in the middle of the basic module (9). The boreholes match to standard tripod mounts. At least use two 1/4 inch or two 3/8 inch screws to lock the Side-by-Side Rig secured on the tripod. -
Page 6: Calibration
90,0. Tighten the set-screw in the end. Before turning the crank-handle (1) be sure the locking screw (2) on the other end of the Side-by-Side Rig is loose. After interaxial adjusting it’s recommended to tighten the locking screw (2). Angulation Adjustment... -
Page 7: Hints And Tricks
Tilt / Roll Adjustment To adjust the tilt and roll angles use the rotary table (3) for the camera roll and the fixed table (5) for camera tilt. On each table are three knurled head screws (a), (b). The silver one (a) in the middle is for adjustment, the two black ones (b) only for fixing and safety. -
Page 8: Motorization
Motorization There are two motorization types available for the Side-by-Side Rig. One for the interaxial distance control and one for the rotary table. The motorization is implemented by a standard motor drive as used also for other camera extensions. Rotary Table Motorization... - Page 9 Copyright stereotec - Stereoscopic Technologies GmbH 2009...
