Summary of Contents for Alead ASRX5C2XXX

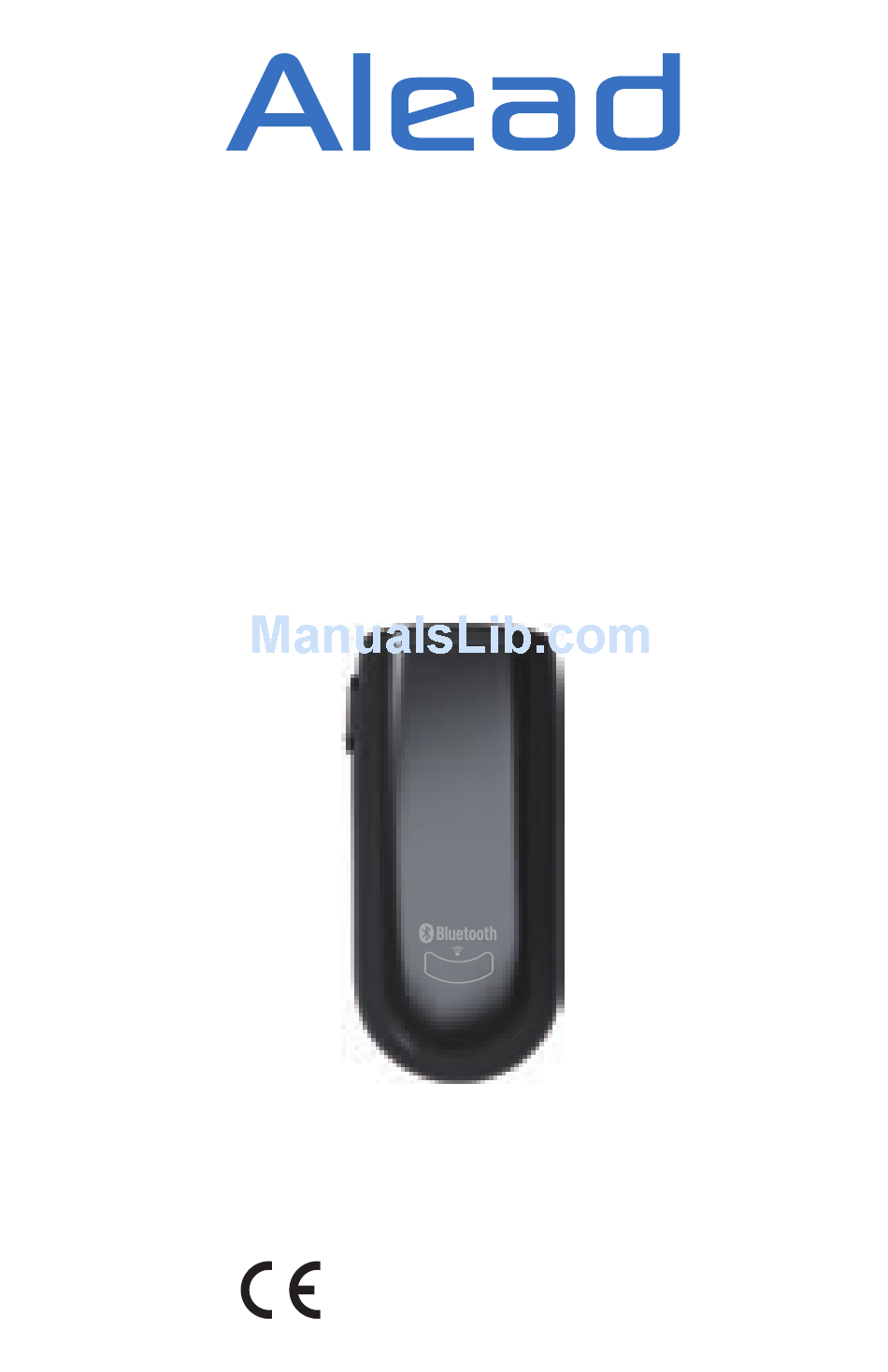

- Page 1 Bluetooth Wireless Voice/Audio Receiver(BTRX2) P/N ASRX5C2XXX USER GUIDE R E C EIV E R Declaration of Conformity. We declare that product ASRX5C2XXX conforms to the R&TTE Directive 1999/5/RC. FCC ID:TNZSRX3C2XXX 0678...
-
Page 2: Getting Started
INTRODUCTION This Bluetooth voice/audio receiver (Rx) offers the latest innovation in Bluetooth technology. Users can listen the audio, music, voice remotely and take calls with built-in microphone wirelessly. GETTING STARTED Unpack the package carefully and confirm that you have all of parts as shown below. Receiver USB charging cable USER GUIDE... -
Page 3: Product Overview
PRODUCT OVERVIEW See image below. Please note some models of Rx will differ slightly in style, color and the functionality may vary according to their specifications. 3.5’ Audio Jack USB Charging Connector On/Off Clipper Volume Button CHARGING Before using the Rx, you must charge it for approximately 2 hours. - Page 4 Plug the USB charging cable into mini USB connector. Plug the other side of the USB charging cable into a powered USB connector. When charging, the amber LED will be lighted. When charging is completed, the amber LED will be turn off or dim.
- Page 5 PAIRING To pair and connect with iPods, iPhones, iPads, tablets, android phones, audio transmitter, Bluetooth enabled MP3, microphone, TV, PC, Mac…etc Press and hold the ON/OFF button for about 3 seconds until blue blinking fast. After the Rx is in pairing state, initiate other Bluetooth device for pairing or Bluetooth search feature and find the device name “BTRX2”.
- Page 6 The other Bluetooht device should find the Rx and pair with it. After both paired and connected, asas the LED schanges to flash slowly with blue color. TURN ON Press and hold the ON/OFF button for about 2 seconds, until the blue LED flashes.
- Page 7 USING RECEIVER After connected, the Rx will receive the audio, voice or music from the paired Bluetooth device wirelessly. To receive and listen audio, voice and music, Fit 3.5mm plug audio cable to Rx, Plug your 3.5mm audio plug of audio cable into the Rx’s audio jack and another side connects to “Audio In”...
- Page 8 Note: Rx TRRS audio jack provides extra ※ audio channel output for voice recording for TRRS audio input device such as iPhones and other mobile devices...etc PA systems camcorder Speaker Tablet iPhone Microphone audio or voice R E C EIV E R M I C R O PH O N E “Receiver”...
- Page 9 Adjusting the Rx Audio Volume To increase the audio volume While listening audio/voice, click ON/OFF button once to increase the volume by one step. Repeat this procedure until you reach the desired level. To decrease the audio volume While listening audio/voice, quick click the ON/OFF button two times continuously to decrease the volume by one step.
-
Page 10: Visual Indication
VISUAL INDICATION The LED can also indicate the status of Rx working statues. Statues Indication Charging amber LED is On blue LED Low speed flash, approx. every Not Connected 5 seconds Connected and blue LED middle receiving audio speed flash blue LED quick Rx in pairing mode... -
Page 11: Customer Service Information
Rx will not pair with Ensure the PIN code audio player or smart is 0000. phone CUSTOMER SERVICE INFORMATION For other Alead or Nolan Bluetooth products or support, please view our website – www.aleadinc.com, www.nolan-sys.com email info@aleadinc.com, info@nolan-sys.com or contact your local representative. - Page 12 DISCLAIMER Whilst every effort has been made to ensure that the information in this manual is accurate and complete, no liability will be accepted for any errors and/or omissions made. The manufacturer reserves the right to make changes and improvements to the specifications and features of the hardware and firmware of the products described in this document without prior notice.
