Summary of Contents for MAJORITY CB30-DAB-WHT/BLK

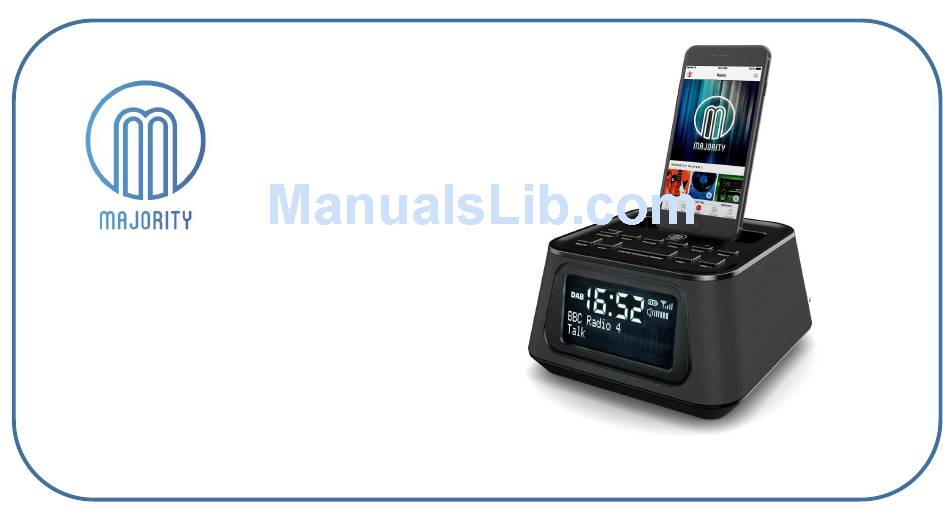

- Page 1 User Guide Majority Madingley Rise Bedside DAB Docking Station CB30-DAB-WHT/BLK Video step by step guidance also available online at www.majoritytech.co.uk...
-
Page 2: Table Of Contents
INDEX IMPORTANT 1. Index 2. Controls and Functions 3. “What’s in the box?” and Basic Operation 4. DAB Radio Mode 5. Set up of the DAB Radio Preset Stations 6. FM Radio Mode 7. Set up of the FM Radio Preset Stations 8. -
Page 3: Controls And Functions
Controls and Functions IMPORTANT 1.LCD Display 8.Info 15.Enter/Pause 2.Aux-In jack 9.Alarm/Snooze/Sleep 16.Next/Forward Button 3.DC IN 9v jack – wall plug 10.Volume Down - 17.Antenna 4.Power On/Off 11.Volume Up + 5.Dock 12.Dimmer/Standby 6.Preset button 13.Scan 7.Mode 14.Previous/Back Button... - Page 4 • • • UK Standard Plug DC 9v Power Supply Instructions Guide Majority Madingley Bedside DAB Docking Station Please note all (Ref.) refer to Page 2 Controls and Functions mapping guide. Basic Operation • Plug the connector into the back of the system labelled DC IN (Ref.3) and the power supply plug into the mains.
-
Page 5: Dab Radio Mode
DAB Radio Mode IMPORTANT DAB Radio • Press and hold the ‘Standby/Dimmer’ button (Ref.12). • Pull up the antenna (Ref.17). • Then press the ‘Mode’ button (Ref.7) to choose your options. Choose “DAB” if not already in this mode. • The system will auto-scan on first use, but if you wish to re-scan press the ‘Scan’... -
Page 6: Set Up Of The Dab Radio Preset Stations
Set Up of the DAB Radio Preset Stations IMPORTANT Preset a radio station – up to 10 preset stations can be set To store a station that you are currently playing: • Press and hold ‘Preset’ button (Ref.6). • “Preset Empty 1” the number “1” will flash on the display. •... -
Page 7: Fm Radio Mode
FM Radio Mode IMPORTANT FM Radio • Press the ‘Standby/Dimmer’ button (Ref.12). • Then press the ‘Mode’ button (Ref.7) to switch to “FM”. The first time you do this, FM frequency “87.5 MHz” will be displayed on the screen. • Pull up the antenna (Ref.17). -
Page 8: Set Up Of The Fm Radio Preset Stations
Set Up of the FM Radio Preset Stations IMPORTANT Preset a radio station – up to 10 preset stations can be set To store a station that you are currently playing: • Press and hold ‘Preset’ button (Ref.6). • “Preset Empty 1” the number “1” will flash on the display. •... - Page 9 iPod Mode IMPORTANT iPod Mode • Press and hold the ‘Standby’ button (Ref.12). • Then press the ‘Mode’ button multiple times (Ref.7) to switch to “iPod”. • Ensure that your iPhone or iPod is connected via the connector on top of the system (Ref.5). If it is not connected the display will show “iPod Disconnected”.
-
Page 10: Ipod/Iphone Mode
Aux-In and Dual USB Ports IMPORTANT Aux-In Port • You can connect your phone or tablet with an Aux 3.5mm cable that connects to the Aux-In jack (Ref.2). • Press and hold the ‘Standby/Dimmer’ button (Ref.12). • Then press the ‘Mode’ button multiple times (Ref.7) to switch to “AUX-IN”. •... -
Page 11: Clock Setting And Dual Alarm Setting
IMPORTANT Clock Setting and Dual Alarm Setting Clock Setting • The clock will automatically set after being tuned to DAB or FM Radio. Alarm1 Setting/Alarm2 Setting • The radio can be in standby or working mode. • Press ‘Alarm/Snooze/Sleep’ button (Ref.9) once to set ALARM1, press twice to set ALARM2. •... -
Page 12: Alarm Sound And Snooze
IMPORTANT Alarm Sound and Snooze Alarm Sound • If the alarm is set to “FM” mode it will play FM Station same for DAB or iPod. If there is no radio signal or phone in the dock the system will default to the BEEP Tone1. •... -
Page 13: Sleep Setting, Display Brightness And System Reset
Sleep Setting, Display Brightness & System Reset IMPORTANT Sleep Setting – this enables you to programme the radio to switch off at a set time of up to 90 minutes. • In working mode (listening to FM Radio/Aux-Input), press and hold the ‘Alarm/Snooze/Sleep’ button (Ref.9) for 1 second and release. -
Page 14: Technical Specifications And Warranty
Technical Specification and Warranty IMPORTANT Technical Specification Power supply: 100-240V AC INPUT DC_OUTPUT 5.9V/2.5A Mode: DAB/DAB+(BAND III 5A-13F), FM(87.5MHz), iPod, Aux-In. Output Power:1.5W X 2 Standby Mode: Show Clock LCD: Black background white fonts, negative LCD. Warranty All products come with a standard 12 month warranty. All items must be registered on www.majoritytech.co.uk the warranty to be valid. -
Page 15: Important Safety Information
IMPORTANT SAFETY INFORMATION IMPORTANT 13.No naked flame sources, such as lit candles, 1.Read these instructions. should be placed on the apparatus. 2.Keep these instructions . Instructions are also 14.Dispose of used electrical products and batteries available for download at www.majoritytech.co.uk safely according to your local authority and regulations.
