Summary of Contents for Additel ADT 680
- Page 2 ADT 680 Digital Pressure Gauge User's Manual Version No .： 1612V14 Additel Corporation...
-
Page 3: Table Of Contents
Digital Pressure Gauge CONTENTS 1. Introduction … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …1 2. -
Page 4: Introduction

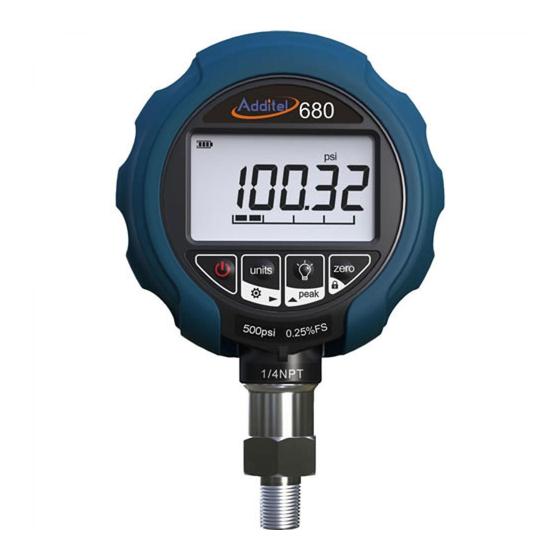

Digital Pressure Gauge Introduction The ADT digital pressure gauge is a rugged wireless data logging pressure gauge that can log in real time or data which can be stored and downloade later via wireless communication The compact industrial design and advanced technology makes the ADT as an ideal pressure measurement tool The ADT be used combines a variety of accuracy levels with a robust IP... -
Page 5: Keypad
Digital Pressure Gauge keypad Push the button Switch engineering units -> Push the button -> Backlight on off Pressure display: Pressure display: Push and hold the button Enter menu -> Push and hold the button -> Min Max setup mode value Push the button ->... -
Page 6: Display
Digital Pressure Gauge Display Keypad lock icon Data logging icon Wireless signal icon Engineering units Battery bar graph 5 digit display Percentage bar graph Menu icons Absolute pressure Start-up screen Full screen display Upper range value Software version Live pressure display Lower range value... -
Page 7: Menu Setup And Configuration
Digital Pressure Gauge Menu setup and configuration 6.1 Menu structure Year Month day Hour min Second 0 1 . Pressure reading interval 0 3 . 1 0 . unit second Rate Delay time before auto off unit minute Auto off Gauge does not auto off Backlight auto off time unit second... - Page 8 Digital Pressure Gauge ₂ ℃) ₂ ℉) ₂ ℃) ₂ ℃) Extended units ₂ ℉) ₂ 4 ( ℉) Set factor for custom units Refer to specification Calibration See calibration section on page 1 cal View overpressure records ( Refer to specification 2 c 00 Cancel recover calibration data Cancel pressure zero...
- Page 9 Digital Pressure Gauge 6.2 Menu operation 6.2.1 Enter Return units Push and hold button in the pressure display mode to enter menu setup mode. Push button in menu setup mode to return to previous menu. Example: Menu1 Pressure display Aver ge measure units Push and hold Push...
- Page 10 Digital Pressure Gauge Example: Move menu Average measure forward to menu Backlight setup units Move menu Aver ge measure backward to menu Extended units 6.2.3 Submenu setup units Push to access submenu setup, push to view options then push to select zero zero an option or push...
-
Page 11: Calibration
Digital Pressure Gauge 6.2.4 Number inputting introduction units Highlight shift right If number incrementing exceeds the maximum display, it will return to Confirm the inputted number zero ESC Cancel the inputted number units If need to input minus sign "-", push and hold button. - Page 12 Digital Pressure Gauge 7.2 Calibration Points (1) Single scale gauge: We recommend at least two pressure calibration points should be used when calibrating the 680 gauge. Usually at 0 and 100% of full scale(Vacuum gauge should use vacuum point). Compound pressure gauge: We recommend at least a three points calibration. Usually points will include low end vacuum point, 0 and 100% of full scale.
- Page 13 Digital Pressure Gauge 7.3 Calibration Process For a calibration example we will use a kPa gauge (0~100) (1) Access the calibration menu in Menu setup mode(refer to Menus operation section), Figure 1 will display on the screen. Next push button to enter Menu setup, zero Figure 2 will be displayed.
- Page 14 Digital Pressure Gauge Flashing,input new calibration point The actual pressure measurement value Flashing,input new calibration point The actual pressure measurement value Figure5 Figure6 Figure7 Figure8 (3) To calibrate the lower range point Use the pressure source to control the lower range zero pressure for this example is the lower point After the reading is stable push...
-
Page 15: Troubleshooting
Means calibration take effect Means have been calibrated Means calibration has been canceled Figure9 Figure10 8 Troubleshooting ERR1 displayed: Beyond zeroing range of 2%FS ERR2 displayed: Sensor data out of limit contact Additel Corporation ERR3 displayed: Sensor damaged contact Additel Corporation... -
Page 16: Custom Unit Entry
Digital Pressure Gauge Custom Unit Entry Press and hold key to enter the menu. Press key until you see TOOL at the bottom. Then press to enter the TOOL menu. Press key until you see 5.COE and press . Now you should see the custom factor (Number x kPa). - Page 17 Digital Pressure Gauge resolution is only 5 digits, so the max any gauge can display is 99999. If you have a 100 kPa (GP15) gauge and put a custom unit of 900 then the custom will be accepted because the max pressure of this gauge would display as 90000 (100 kPa x 900).
-
Page 18: Specifications
Digital Pressure Gauge Specifications Pressure Ranges Gauge Pressure Pressure Pressure Burst range range Media Accuracy (%FS) Pressure (psi) (bar) -1.0 G, L 0.05 (0.1, 0.25) G, L GP15 0.05 (0.1, 0.25) GP30 G, L 0.05 (0.1, 0.25) G, L GP100 0.05 (0.1, 0.25) G, L GP300... - Page 19 Digital Pressure Gauge Performance Recommended One year calibration period Update rate 10/Sec 3/Sec (default) 1/Sec 1/15Sec 、 、 、 Operating temperature -10℃~50℃ Guaranteed accuracy Overload pressure 1 2X Power Supply 2 x AA alkaline (LR6) batteries Battery Recommend Duracell MX1500 、 Energizer E91、...
- Page 20 Backlight hite Wireless Communication(optional) Wireless requency 2.4G ISM Bands, 20 meter range Number of hannel Additel Land software available for free download at www additel com. Software Additel Log I ireless vailable or urchase Storage Storage capacity 140,000 records recorded contents include time pressure and temperature...
- Page 21 Digital Pressure Gauge Others Φ100 mm x 40 mm, total height : 157 (4" 1.6" 6.2") Dimensions Weight 500 g (1.1 Fitting 1/4 NPT, / , 1/4B SP, M20 1 5, autoclave ale r emale )or custom-made Additional functions Disabled 、15、30、45、60、90、120 inutes , ser electable...
-
Page 22: Warning
Digital Pressure Gauge Additional functions View the 5 most recent over pressure records by inputting pass word “888” in Overpressure the Calibration menu, when screen is shown as Figure 2, Page10. records Detect pressure leakage over a period of time. The gauge will auto-record Leakage test beginning pressure value ending pressure value and leakage P Δ... -
Page 23: Fcc Declaration Of Conformity
Digital Pressure Gauge FCC Declaration of Conformity Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation... - Page 24 Digital Pressure Gauge This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 25: Battery Installation
Digital Pressure Gauge Battery installation... -
Page 26: Ordering Information
Pressure range GP300 See pressure range table Manual NIST traceable calibration certificate Model 9253 Rubber protective boot Additel/Land Wireless software for 680W PSI range by psi Range type: (free download at www.additel.com) BAR range by bar Optional Accessories Model number... -
Page 27: Appendix I- Data Logging
Digital Pressure Gauge Appendix I– Data logging Data logging introduction 1 Push and hold units button to access to menu setup mode and move to log function 2 If the d ata logging is ongoing the gauge screen will show ON and the "... - Page 28 Additel Corporation 2900 Saturn St #B Brea, CA 92821, USA Phone: 714-998-6899 Email: service @additel.com website: www.additel.com...
