Summary of Contents for Siren Marine Pixie

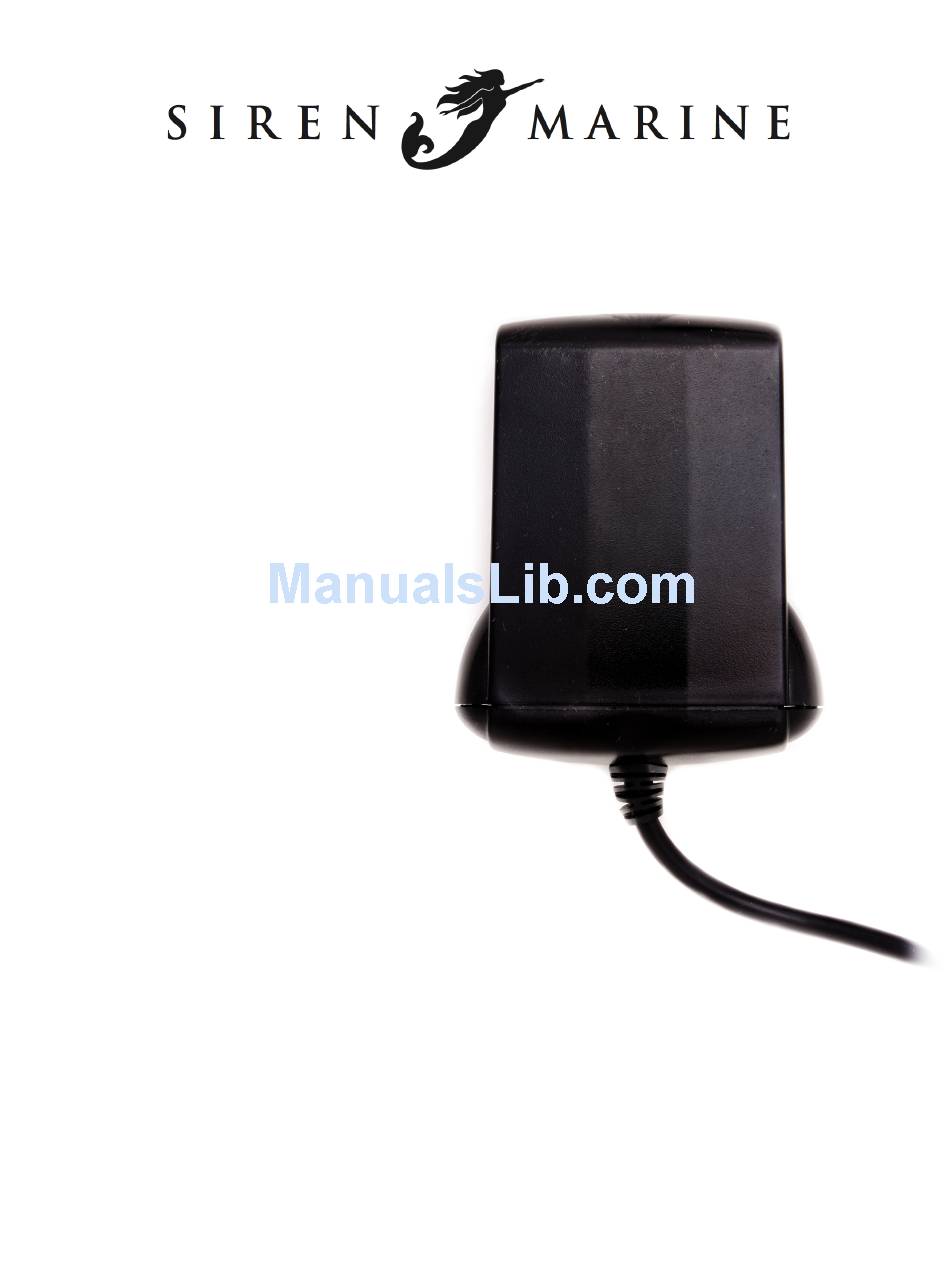

- Page 1 Pixie a nd S prite Siren M arine, I nc. Installation Manual Setup Instruction ...
-
Page 2: Table Of Contents
Contents 1. Installation a nd S etup O verview 2. Basic S etup 3. Basic i nstallation 4. Advanced F unction S etup a nd I nstallation 5. -
Page 3: Installation A Nd S Etup O Verview
A. Check P ackage C ontents Pixie: 1. Pixie m ain u nit 2. Mounting b racket 3. Small p arts k it a. Multiple o utboard k ill d iode ... -
Page 4: Basic S Etup
Basic S etup In t he f ollowing s teps, y ou w ill g et c ommunication g oing w ith y our u nit. ... - Page 5 *Note t hat I a dded a 1 b efore t he a rea c ode. T his i s n ot n ecessary, b ut i n s ome areas ...
- Page 6 7. Finally, g ive y our S prite o r P ixie a n ame. W e r ecommend y ou u se y our b oat’s name. ...
-
Page 7: Basic I Nstallation
Basic I nstallation In t he f ollowing s teps, y ou w ill l earn t he b asic g uidelines y ou n eed t o k now i n o rder t o successfully ... - Page 8 D. Your S iren u nit c omes e quipped w ith a n i nternal T amper S ensor s witch. M ount t he magnetic p ad a s d escribed b elow. I f y ou u nit i s t ampered w ith a nd i s r emoved f rom its ...
-
Page 9: Advanced F Unction S Etup A Nd I Nstallation
Advanced F unction s etup a nd I nstallation In t he f ollowing s teps, y ou w ill g et m ore d etailed i nformation o n: ... - Page 10 System C ommands ADDING P HONE N UMBERS You c an s tore u p t o f our p hone n umbers. A dd t hem u sing ...
- Page 11 *Note t hat y ou d o n ot h ave t o p ut t he c ell n umber i n a gain. ...
- Page 12 That’s a ll…. Y our S iren u nit w ill n ow s end a t ransgression r eport i f i t m oves o utside the ...
- Page 13 The f actory d efaults t he G eo-‐fence r adius t o 2 00 m eters, a nd s ets u p a t ime-‐based report ...
- Page 14 TAMPER a ctivates t he t amper s ensing. T he F actory s ets Y our S iren u nit i nto Tamper m ode w hen s hipped. ...
- Page 15 Information Acquisition STAT Send Status report as STAT packet INF = INFO Acquire Batteries and Temps. BATA Acquire batteries REP nnn.d Send STAT report each nnn.d Hrs STAT is default. D is 1/10hr... REP nnn.d//opcode,opcode Send Opcode each nn hours. Eg REP 0.5 //BATA,INF,TEMPA Temperature monitoring TEMPA Acquire temps ( Temp acquire -40F to 248 F /-40C to 120C)
- Page 16 Output Control relays Output setup first requires assigning the functions that are to activate a relay using an OPnXXX function. Then the relay needs to be armed for operation with a RELnON. Finally the execution activates the relay from manual or switch commands or Geofence transgression. Setup commands OP1REM nn Assign Relay #1 ( O/P # 5) to remote user control.
- Page 17 Execution commands WAITnnnn Waits nnnn seconds then executes following command in a string. Eg: F5E;WAIT20;F5D this executes F5E then waits 10 secs before executing F5D. Enable O/P #1 . This is the main relay ACTIVATION command. Requires setup. NB: After a NOKILL, REL1OFF is left set, so a F5E wont work until a REL1ON is first issued.
- Page 18 Power settings Power Loss alert enable Power loss alert Disable Power Good alert enable Power good alert disable PWRDEL nnn Power sense delay of nnnn secs. CTXPL Change Text for POWER LOST message CTXPR Change text for POWER RECOVERY message EXTVOLT ON //vv.vv Alarm setpoint voltage Note space after ON.
- Page 19 Hour Countdown SETCOUNTER //<O or C or N> Engine counter uses SW #3 as controlling signal. <O: Open or C: Closed or N: (Default) to Disable. SETCOUNTER //C COUNTDOWN nnnn nnn= 0 to 9999 hours. This STARTS the countdown. RCOUNT Sends back message with following info: COUNTDOWN Hours remaining: yyyy, START :nnnn Automatically sends Alert at zero hrs.
- Page 20 Typical Application Wiring Suggestions The following wiring ideas are optional. Only requires two wires to perform its basic monitoring and tracking function (Red & Black). Use others in any combination that meets your needs. Wire Color Function Battery Positive (+) (12v DC) BLACK Battery Negative (-) BLUE...
-
Page 21: Trouble Shooting
Trouble S hooting G uide Trouble Shooting Symptom Solution General Unit does not respond to SMS commands The SIM chip is not activate. Acivate the SIM chip. No SIM is installed. Install SIM chip. The SIM chip is defective. Put the SIM into a regular cellphone and test. - Page 22 The GPS antenna cable has come unplugged from the circuit board. Open the unit and carefully plug in the antenna to the circuit board. The GPS antenna is located above the battery and the plug is on the left side of the unit, the plug recepticle is located in the upper left corner of the circuit board.
