Summary of Contents for Retsch BB100

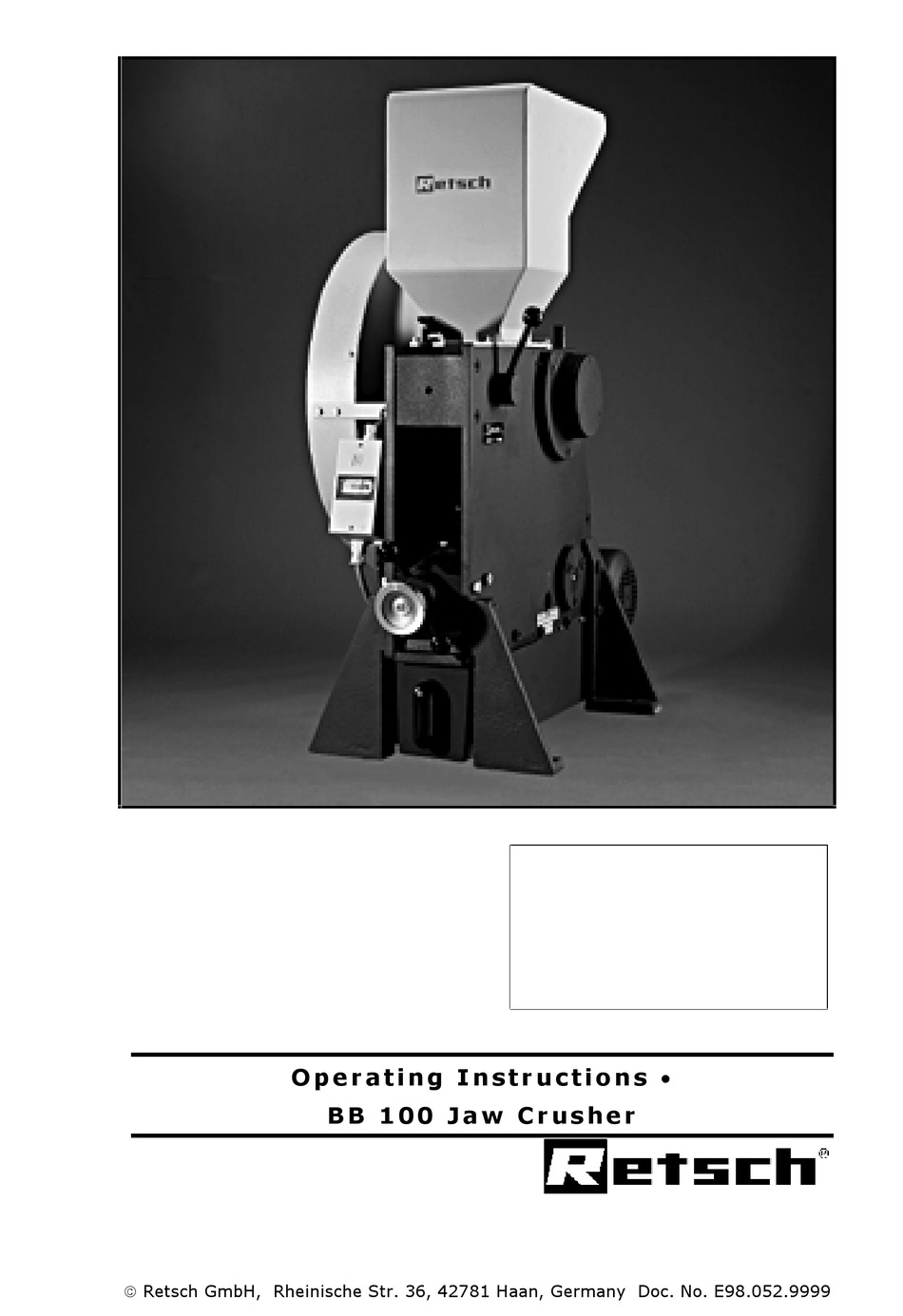

- Page 1 O p e r a t i n g I n s t r u c t i o n s B B 1 0 0 J a w C r u s h e r Retsch GmbH, Rheinische Str. 36, 42781 Haan, Germany Doc. No. E98.052.9999...
-
Page 2: Information On These Operating Instructions
Each of the individual chapters is a self-contained unit. These operating instructions contain no information on repairs. If repairs should ever become necessary, kindly get in touch with your supplier or contact directly the Retsch GmbH. 26.10.1998 Retsch GmbH... -
Page 3: Table Of Contents
Grain size of feedstock product..........15 Properties of the product being crushed........15 Fill volume ................15 General .................16 Cleaning ................16 Maintenance...............17 Functional inspections ............17 Replacing the breaker jaws............18 Copyright ................18 Modifications ..............18 Safety instructions (table)............19 Warranty Conditions ..............20 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 4: Safety
Anyone who deals with the machine in any capacity whatsoever. The BB 100 is a modern, high-performance product manufactured by the Retsch GmbH, incorporating state-of-the- art engineering. It is entirely safe in operation, provided that the operator is familiar with the present technical manual and uses... -
Page 5: Warnings
Repairs These operating instructions do not include any repair instruc- tions. In the interest of your own safety, have repairs made exclusively by the Retsch GmbH or an authorized representative (service technician). In this case, please notify the following: Local Retsch representative... -
Page 6: Technical Specifications
// coke // corundum // quartz // salts // refractory clay // slag // silicates // silicon // sintered materials // cement clinker, etc. Do not make any modifications to the machine and use only RETSCH approved spares and accessories. Failure to comply will invalidate the CE declaration and guarantee. -
Page 7: Noise Emissions
Filling ratio of grinding chamber: approx. 65 % Equipment dimensions (approximate) Height: approx. 960 mm Width: approx. 320 mm Depth: approx. 800 mm Weight: approx. 137 kg net Footprint 320 mm x 800 mm; no safety clearances required! 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 8: Shipping And Installation
Verify that the BB 100 operates correctly (see in this regard the chapter on operation). Notify the forwarder and Retsch GmbH immediately (with- in 24 hours) if the shipment is incomplete or damaged. Under certain circumstances compensation cannot be paid for claims which are lodged later. -
Page 9: Requirements For The Installation Site
EN 61010 unless it is anchored to the floor. Components could be damaged. Hazard of crushing arms and feet. Failure to observe the values on the data plate can cause damage to the electrical or the mechanical components or both. 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 10: Operation
Operation Target group: Operators Control elements and their use Schematic view of the operating controls , part 1: Side view 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 11: Control Elements And Their Use
Control elements and their use Schematic view of the operating controls, part 2: Front view 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 12: The Operating Controls And Their Functions
The breaker jaw J is mounted here; executes the crushing Breaker arm, moving motion required for size reduction without manual effort. Wearing plates in the crushing chamber Prevent damage to the side components. 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 13: Starting The Bb 100
To achieve the maximum fill level in the drawer, it is necessary to shake it back and forth occasionally, without displacing the drawer by more than 30 mm. Fig. 3 Fig. 3 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 14: Adjust The Gap Width
If the crushing chamber W is filled with more than , then the 2 / 3 fill hopper guide plates could be damaged; the moving breaker arm would force the product behind the breaker arm and into the crusher housing. 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 15: Working Instructions
If the crushing chamber W is filled with more than =300ml, 2 / 3 then the fill hopper guide plates could be damaged; the moving breaker arm would force product behind the breaker arm and into the crusher housing. 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 16: General
Do not use running water to clean the BB 100. Hazard of fatal electrical shock. Using solvents is prohibited since the felt seals at the sides of the breaker arms could be damaged and/or grease packings could be washed out. 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 17: Maintenance
The BB 100 comes to a stop Close the fill hopper B. The BB 100 must not restart. Screw in the machine screws E. Start the BB 100. Fig. 9 26.10.1998 Retsch GmbH Doc. No .E98.052.9999... -
Page 18: Replacing The Breaker Jaws
Hazard of crushing fingers and hands!! Copyright Reproducing or distributing this manual, utilizing or distributing the contents is permitted only with the express consent of Retsch GmbH. Non-compliance will subject violators to claims for damages. Modifications Subject to modification without prior notice. -
Page 19: Safety Instructions (Table)
In the case of the delivery being incomplete Later complaints can under certain circumstances and/or transport damage, you must inform the no longer be considered. carrier and Retsch GmbH immediately (within 24 h). Environmental temperature Drops below 5°C Electronic and mechanical components can Rises above 40°C... -
Page 20: Warranty Conditions
If he wishes to have other particular work performed which goes beyond the work warranted then these costs shall be payable at the actual valid price. 26.10.1998 Retsch GmbH Doc. No .E98.052.9999...
