INDUSTRIAL TYPE COOKER (GAS-WOK)
AUTHORIZED SERVICE
BU BÖLÜME YETKİLİ
BANDEROLE WILL BE
SERVİS BANDROLU
AFFIXED AT THIS
YAPIŞTIRILACAKTIR
AREA
ÜRETİM YILI:
YEAR OF MANUFACTURE:
ÜRETİM ADRESİ : Beylikdüzü Eski Hadımköy Yolu 1.Km Büyükçekmece İstanbul/TÜRKİYE
PRODUCTION ADDRESS: Beylikduzu, Eski Hadimkoy Yolu 1.Km Buyukcekmece Istanbul/TURKEY
Our Web address:
Web adresimiz:
Issue date
:
Tel: 0090 212 886 78 00 (8 Lines) Fax: 0090 212 886 66 29
Tel : 0090 212 886 78 00 (8 Hat-Lines) Fax : 0090 212 886 66 29
www.oztiryakiler.com.tr
01.01.2013
USER'S MANUAL
SERIAL NO:
- 1783
e-mail: oztiryakiler@oztiryakiler.com.tr
VER:V13.01
SERİ NO:
PAGE / PAGES
1/15
Advertisement
Table of Contents
Summary of Contents for OZTI OWG 4090

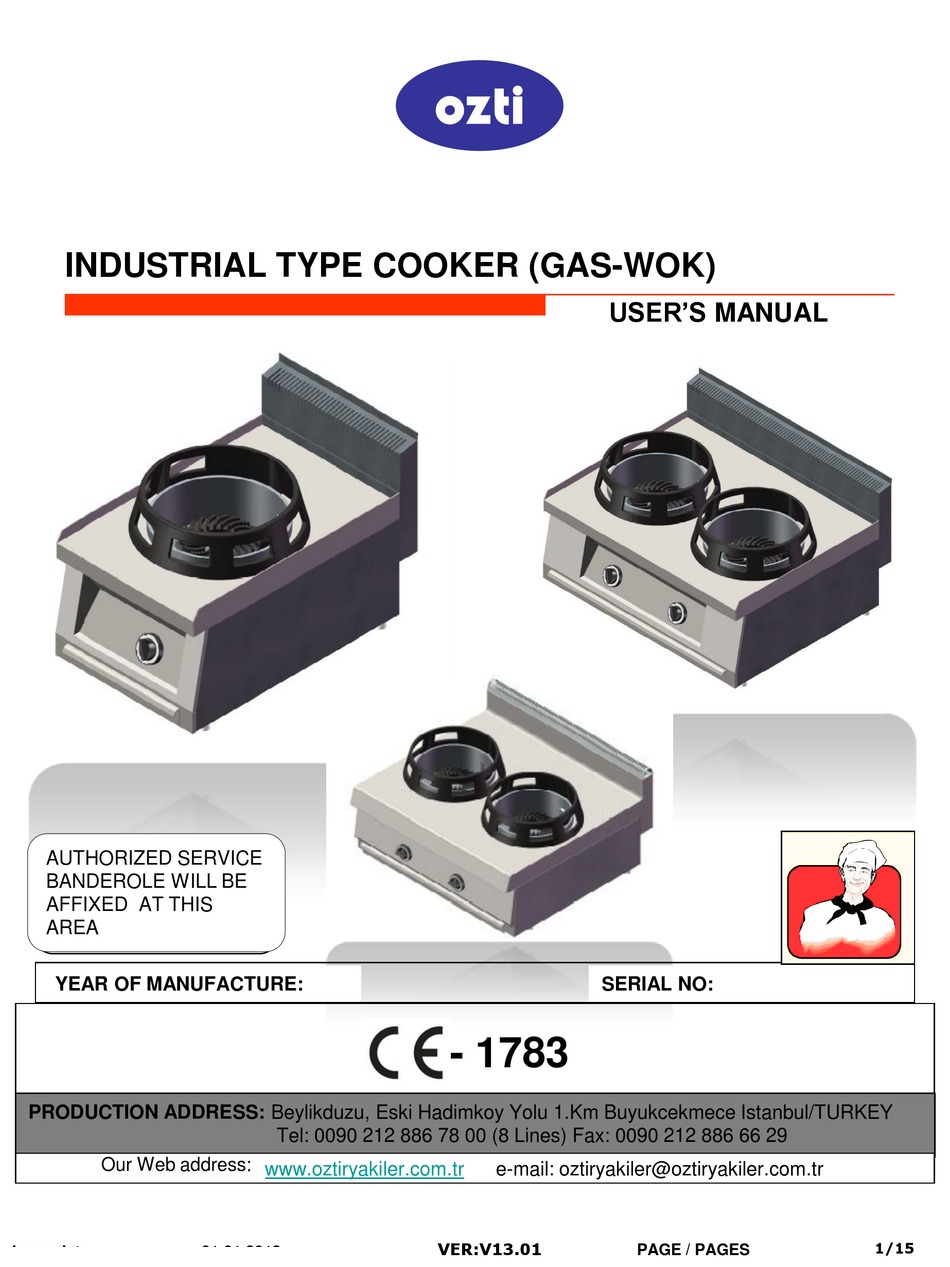

- Page 1 INDUSTRIAL TYPE COOKER (GAS-WOK) USER’S MANUAL AUTHORIZED SERVICE BU BÖLÜME YETKİLİ BANDEROLE WILL BE SERVİS BANDROLU AFFIXED AT THIS YAPIŞTIRILACAKTIR AREA ÜRETİM YILI: SERİ NO: YEAR OF MANUFACTURE: SERIAL NO: - 1783 ÜRETİM ADRESİ : Beylikdüzü Eski Hadımköy Yolu 1.Km Büyükçekmece İstanbul/TÜRKİYE PRODUCTION ADDRESS: Beylikduzu, Eski Hadimkoy Yolu 1.Km Buyukcekmece Istanbul/TURKEY Tel: 0090 212 886 78 00 (8 Lines) Fax: 0090 212 886 66 29 Tel : 0090 212 886 78 00 (8 Hat-Lines) Fax : 0090 212 886 66 29...
-
Page 2: Table Of Contents
CONTENTS PAGE NO SUBJECT COVER CONTENTS INTRODUCTION TECHNICAL FEATURES LABEL AND WARNING SIGNS DETAILS RELATED TO SAFETY HANDLING AND RE-LOCATION 9-10 INSTALLATION OF DEVICE GENERAL DIMENSIONS DEVICE USE CLEANING AND MAINTENANCE CONVERSION TO OTHER GASES WARRANTY CONDITIONS 2/15... -
Page 3: Introduction
INTRODUCTION Dear User, Thank you for purchasing our appliance and for your reliance upon our company. Our appliances are used in professional kitchens in 100 countries. Our appliances are produced in compliance with international standards. Important notice: Please read and ensure that the users read this user’s manual in order to achieve the desired performance in line with your expectations and to use your appliance for long years. -
Page 4: Technical Features
TECHNICAL FEATURES YOUR MODEL OWG 4090 OWG 8090 OWG 4070 OWG 8070 ☞ OVERALL DIMENSIONS 400x900x280 800x900x280 400x700x280 800x700x280 (mm) THERMAL POWER ) ΣQ (KW) (H İ А А А А TYPE ½” R ¾” R ½” R ¾” R... -
Page 5: Label And Warning Signs
LABEL AND WARNING SIGNS Figure: OWOGD 12090 PRODUCT NAME MODEL TYPE SERIAL NUMBER PRODUCTION DATE HOT SURFACE SAMPLE LABEL 5/15... -
Page 6: Details Related To Safety
DETAILS RELATED TO SAFETY ☞ The device should not be exposed to direct sunlight. ☞ The device definitely must be used under a chimney hood. ☞ In case the device is running on an LPG cylinder, the distance between the cylinder and the unit should be at least 50 cm. - Page 7 DETAILS RELATED TO SAFETY ☞ The device should not intervened with, unless by the manufacturer of the authorized service. ☞ In case of fire or flame ignition due to any reasons, in the area where the device is used, turn off the gas valves and electrical switches without panicking and use a fire extinguisher.
-
Page 8: Handling And Re-Location
HANDLING AND RE-LOCATION Re-location; The device installed by the Authorized Service, NOT BE RE-LOCATED, CONNECTION HOSES MAY NOT BE EXTENDED, REPLACED, unless by the authorized service. ☞ The device may be carried by man-power in hand. In case the handling distance is long, the device must be moved slowly avoiding rocking, balance should be maintained. -
Page 9: Device Installation
DEVICE INSTALLATION THE DISTANCE BETWEEN THE DEVICE AND LPG MUST BE MIN. 50 CM. In order to place this device near a wall, partition, kitchen furniture, decorative coating, etc., the distance should be 5 cm if these are constructed of inflammable materials or coated by an appropriate heat insulation material, and if not, this distance should be minimum 20 cm. - Page 10 DEVCE INSTALLATION ☞ The gas connection input dimensions are defined in the TECHNICAL FEATURES table. ☞ After the device has been connected to the gas system, gas leakage must definitely be checked by soap bubbles. ☞ After the device is controlled by authorized service personnel, air adjustment is made if necessary.
-
Page 11: General Dimensions
GENERAL DIMENSIONS 11/15... -
Page 12: Device Use
DEVICE USE A. GENERAL INFORMATION 1. The Wok Cooker is used for cooking at restaurants, canteens, kitchens of places like hospitals, personnel cafeterias, etc. 2. Prior to initial use, the external surfaces of the device must be wiped by a damp soapy cloth. -
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE 1. CLEANING: Prior to initial use, clean the external surfaces using a sponge and liquid cleaning materials. During cleaning do not use CHEMICAL CLEANING MATERIALS such as spirit of salt, scouring agents, etc. Soften residues of burnt foodstuffs using hot water, before they stiffen. -
Page 14: Conversion To Other Gases
CONSUMPTION SARFİYAT KULLANILAN OWG 4070 OWG 4070 OWOG 12090 OWG 4070 OWG 4070 OWOG 12090 USED OWG 4090 OWG 4090 OWOGD 12090 OWG 4090 OWG 4090 OWOGD 12090 G20 NATURAL GAS G20 DOĞAL GAZ 14 kW (14+14)=28 kW (14x3)=42 kW 1,48 m³/h... -
Page 15: Warranty Conditions
WARRANTY CONDITIONS WARRANTY CONDITIONS 1-) The warranty period starts from the date of delivery of the product and is 2 years. 2-) The complete device, including all parts, are within the warranty of our Company. 3-) In case the product malfunctions within the warranty period, the period during repair is added to the warranty period.
