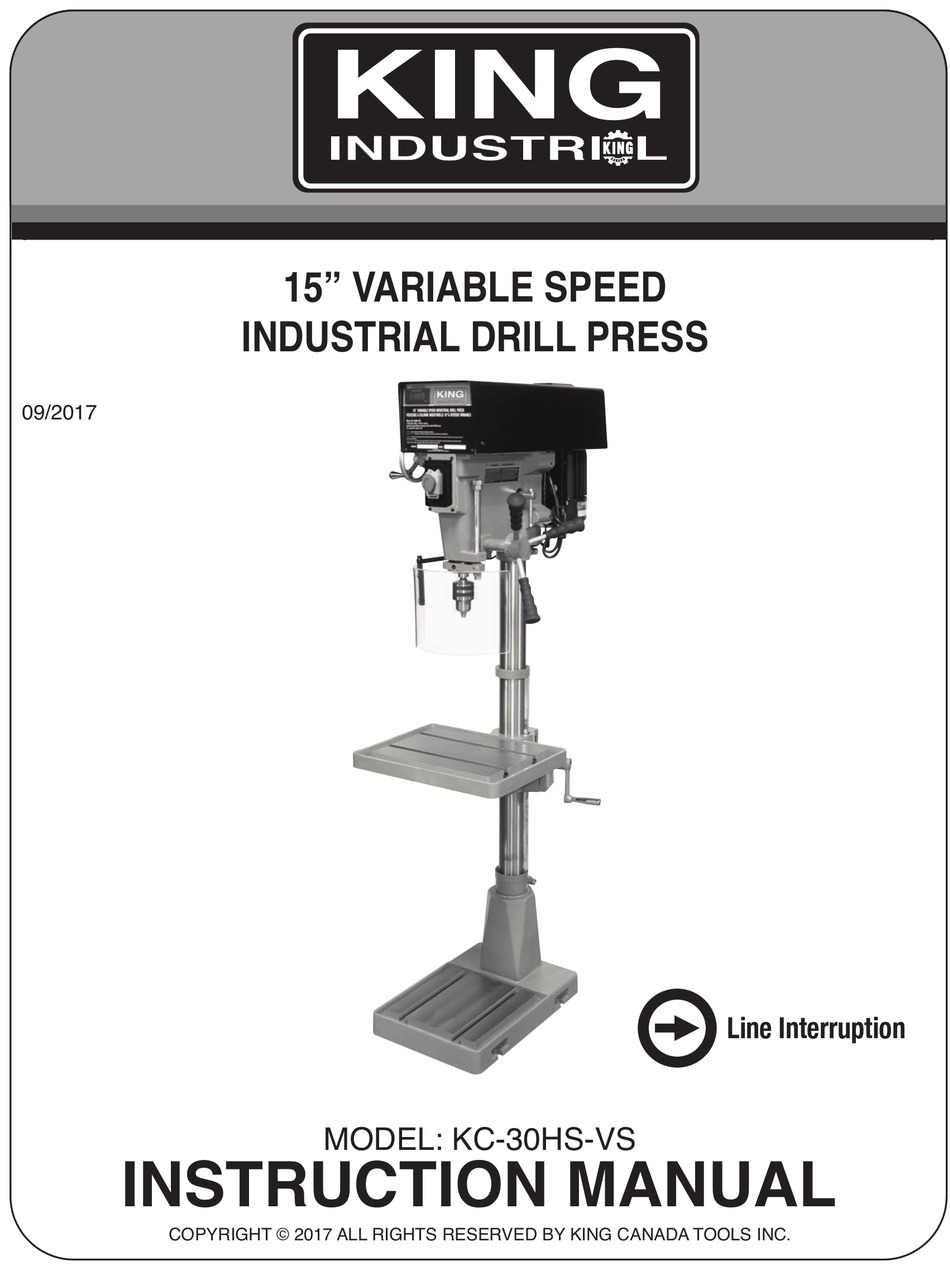

KING KC-30HS-VS Instruction Manual

15” variable speed industrial drill press

Advertisement

Quick Links

15" VARIABLE SPEED
INDUSTRIAL DRILL PRESS
09/2017
Line Interruption

INSTRUCTION MANUAL

MODEL: KC-30HS-VS
COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC-30HS-VS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KING KC-30HS-VS

  • Page 1: Instruction Manual

    15” VARIABLE SPEED INDUSTRIAL DRILL PRESS 09/2017 Line Interruption INSTRUCTION MANUAL MODEL: KC-30HS-VS COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
  • Page 2: Warranty Information

    King Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period.
  • Page 3: General Safety Instructions For Power Tools

    GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. kNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to the Always wear safety glasses (ANSI Z87.1). Everyday eye-glasses only have impact resistant lenses, thet are NOT safety glasses. tool.
  • Page 4: Electrical Information

    ELECTRICAL INFORMATION WARNING ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY TURNING THE DRILL PRESS ON/OFF WARNING: YOUR DRILL PRESS MUST BE CONNECTED TO A 115V...
  • Page 5: Getting To Know Your Drill Press

    GETTING TO KNOW YOUR DRILL PRESS 1. Variable speed digital readout. 2. Speed adjusting handwheel. 3. 2 step activation safety switch. 4. Safety guard. 5. 5/8” chuck. 6. Table. 7. Base. 8. Head locking handle. 9. Depth stop rod. 10. Feed handle (1 of 3). 11.
  • Page 6 ASSEMBLY ASSEMBLY This drill press comes partially assembled and requires minimal assembly and set up before being put into use. INSTALLING TABLE HEIGHT ADJUSTMENT HANDLE 1. Align the set screw (A) Fig.6 in the table height adjustment handle (B) with the flat portion of the handle shaft. 2.
  • Page 7: Adjustments And Operation

    ADJUSTMENTS AND OPERATION RAISING OR LOWERING WORk TABLE 1. Loosen table lock handle (A) Fig.9. 2. Turn the table height adjustment handle (B) until the table is at the desired height. 3. Retighten table lock handle (A). ADJUSTING ANGLE OF WORk TABLE 1.
  • Page 8 ADJUSTMENTS & OPERATION REFERENCE CHART FOR SPINDLE SPEED SELECTION - BASED ON BIT SIZE/WORkPIECE MATERIAL WORKPIECE MATERIAL CAST STEEL TOOL STEEL CAST IRON MILD STEEL ALUM. & COPPER BIT SIZE (DIAMETER) REVOLUTIONS PER MINUTE (RPM) 1-16” (2 mm) 1900 - 2445 2865-3665 3820-4890 4775-6110 9550-12225...
  • Page 9: Maintenance

    MAINTENANCE MAINTENANCE WARNING! For your own safety, turn the switch “OFF” and remove the plug from the power source before maintaining or lubricating your drill press. • Keep the Drill Press clean and free of dust and debris. Painted surfaces can be wiped with a damp rag.
