Installing a Mars
These instructions outline the procedures to install a Mars AE2611 or AE2411 as part of the
Rowe
JUMP Kit for CD-100, CD-100A or CD-100B jukeboxes.
®
Tools Required
1/4", 5/16" and 11/32" nut drivers, 1/2" Open End Wrench, Philips Screwdriver
Also required - Mars AE2411 or AE2611 Bill Acceptor
Parts Included with this Kit
Item
1
2
3
4
5
1
Installation Instructions
Bill Acceptor with your JUMP
®
Part Number
34064201
34064801
87842300
80713006
40956301
22201302
2
Description
Lower Adaptor Bracket
Guide Plate
#6-32 Nuts
#8-32x3/8 Sems Machine Screw
Upper Adaptor Bracket
These Instructions
3
4

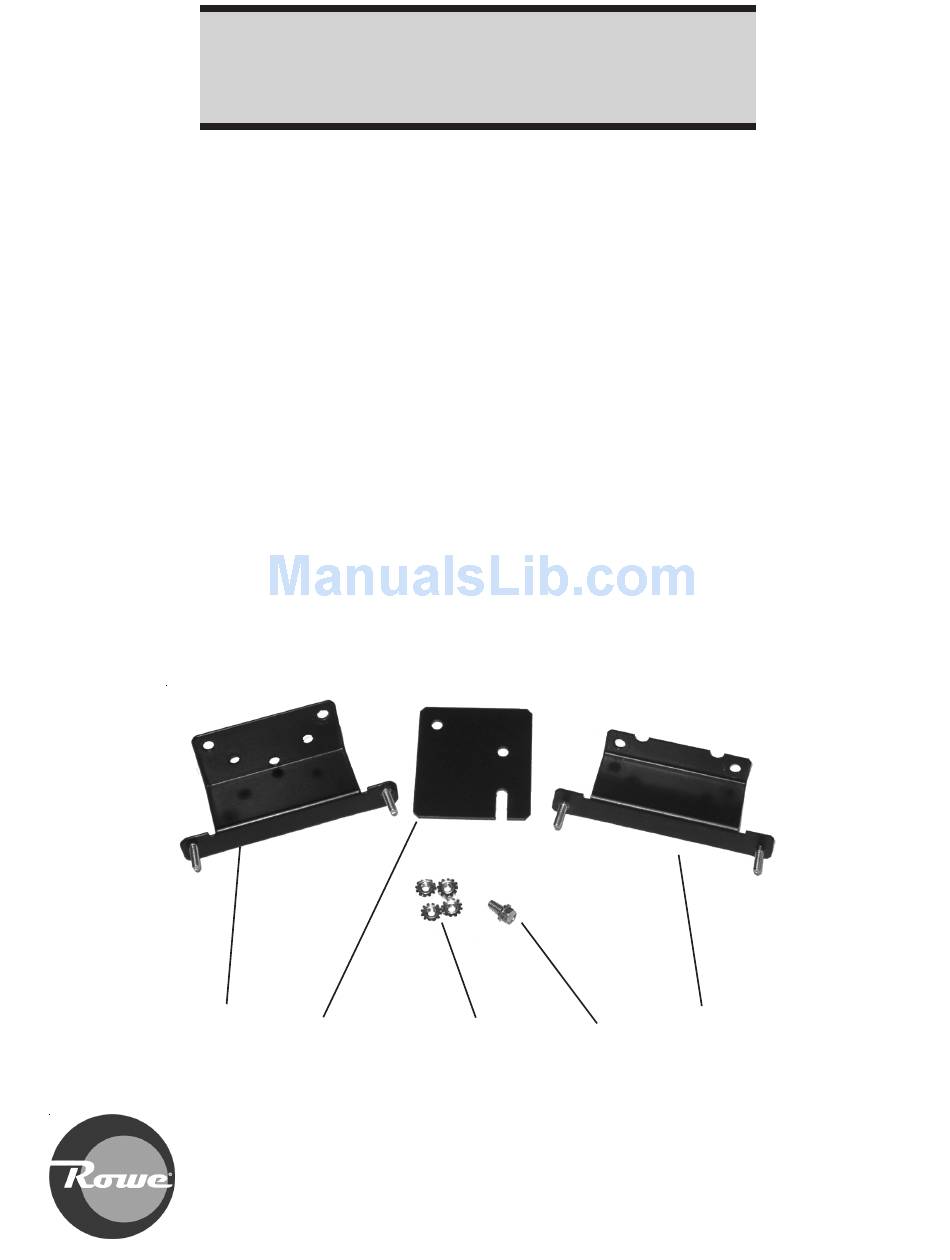

Figure 1
Kit
™
Quantity
1
1
4
1
1
1
5
22201302
Page 1 of 6
Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Mars AE2611
- Page 1 Installation Instructions Installing a Mars Bill Acceptor with your JUMP ® ™ These instructions outline the procedures to install a Mars AE2611 or AE2411 as part of the Rowe JUMP Kit for CD-100, CD-100A or CD-100B jukeboxes. ® Tools Required 1/4”, 5/16”...
- Page 2 Instructions Disconnect and remove the OBA Transport from the jukebox. Set it aside. Remove the stacker and it’s harness from the jukebox by removing the 2 front mounting screws and loosening the 2 rear screws as shown in Figure 2. Save the screws for use later in Step 8. Remove these 2 Loosen these 2 screws screws...
- Page 3 Upper Bracket Figure 3 Mount your Mars Acceptor onto the bracket using the 4 nuts provided. To provide the smoothest opera tion, push the Acceptor as far as possible away from the bracket as you tighten the unit to the brackets.
- Page 4 Remove the roller/spacer from the OBA-2’s Bill Stacker as shown in Figure 4. Slide the Guide Plate (Item 2) over the screw present on the bill acceptor mounting panel and secure in place using one of the #8-32 machine screws removed in Step 2. Install the roller/spacer as shown in Figure 4 using the Sems Head machine screw (Item 4) but do not tighten.
- Page 5 3 OFF and turn 1, 2, 4, 5 and 6 ON For AE2611 ($1 thru $20) - Switch 6 must be ON and Switches 7 and 8 must be OFF. The others are optional, but Rowe suggests that you turn Switches 1, 2 and 3 ON and Switches 4 and 5 OFF.
- Page 6 This page intentionally left blank. 22201302 Page 6 of 6 Rev. A...
