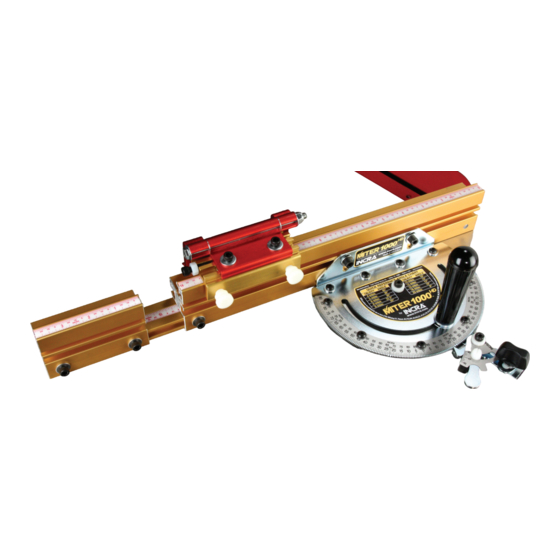

Owner's Manual
SAFETY:
I
mportant safety InstructIons for usIng the
When using the INCRA Miter1000HD in conjunction with any other tool, first read and follow all
°
instructions and safety information in that tool's owner's manual.
Never let the saw blade come in contact with the aluminum or steel components of the INCRA Miter1000HD.
°
When using the INCRA Miter1000HD, always keep your hands clear of the saw blade and the line of cut.
°
Always turn off the power and make sure that the saw blade comes to a complete stop before changing the setting of any part of
°
the INCRA Miter1000HD.
Always securely tighten the large black clamping knob before starting any cut.
°
Wear safety glasses, hearing protection, and follow all normal shop safety practices.
°
After making any adjustments to the miter angle or fence position of your INCRA Miter1000HD, always verify safe clearance
°
between the blade and fence before turning on the saw.
After making any adjustments to the fence position on the INCRA Miter1000HD, always make sure that the two socket head
°
screws are securely tightened.
When using the INCRA Flip Shop Stop to position a piece for a cut, always hold or otherwise clamp the board between the stop
°
and the blade.
Manufactured by Taylor Design Group, Inc. P.O. BOX 810262 Dallas, TX 75381
w w w . i n c r a . c o m
INCRA M
BefOre usInG The INCRA
MIteR1000HD, reAD AnD fOllOw
All Of The InsTrucTIOns AnD
sAfeTy InfOrMATIOn In ThIs
Owner's MAnuAl.
high definition
high definition from incra
1000HD
IteR
RegisteR
yO u r
pRoduct
online
www.incRa.com
©2008 by Taylor Design Group, Inc. All rights reserved.
