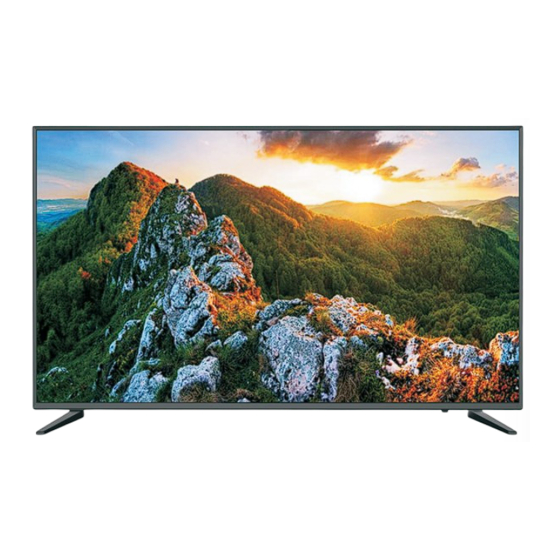

- Page 1 55" 4K LED TV(Ultra HD) DSLED55UHDYA USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ................................General Safety Instructions............................. 2 Installation..................................3 Cleaning..................................4 Installation................................... 5 Base Stand Assembly Instruction........................5 Wall Mounting Installation Guidelines......................... 6 Antenna...................................6 Power....................................6 Front Panel Layout..............................7 Keyboard Layout (side-panel) ..........................7 REAR AV Connections ............................. 8 SIDE AV Connections ............................... -
Page 3: Safety Instructions
Safety Instructions General Safety Instructions Risk of electric shock. DO NOT OPEN! Do not attempt to service the television yourself, as opening or removing the covers may expose you to dangerous voltage or other hazards. Refer all servicing to the Kogan customer support team. To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 4: Installation
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them may be fatal. -
Page 5: Cleaning
Do not place this television near water, for example near a bathtub, wash bowl, kitchen sink, laundry tub, swimming pool or in a damp basement etc.. When moving the television to a warm location from a cold location, allow some time for any dew or condensation inside the television to evaporate fully before you turn the unit on. -
Page 6: Installation
Installation Thank you for purchasing this 55" UHD LED TV. Before connection and operation of this product, please read through this user manual carefully, and keep a copy of the manual handy for future reference. Remove the TV carefully from its packaging, taking care not to apply any pressure to the front of the screen. -
Page 7: Wall Mounting Installation Guidelines
Wall Mounting Installation Guidelines For wall mounting with an optional bracket, please read the following instructions in conjunction with the bracket's instructions. If you are not confident of your abilities to mount the TV, please seek assistance from qualified personnel. Kogan.com is not liable for any damage or injury caused by an incorrectly mounted television. -
Page 8: Front Panel Layout
Front Panel Layout Remote control sensor Power indicator LED: 3. Green = Power on Red = stand-by 4. Keyboard (on bottom of TV) 5. Main power switch (on bottom mid right-hand panel of TV) The remote control needs to be pointed directly within +/- 30 ° of the sensor on the front of the TV for reliable operation. -
Page 9: Rear Av Connections
REAR AV Connections AUDIO OUTPUT AC-INPUT 100-240V 50/60Hz OPTICAL VIDEO When viewed from the rear of the TV, the following terminals/connections are visible (from left to right): ● AC mains power cord ● OPTICAL Output ● AUDIO OUTPUT sockets - RCA type sockets for Left and Right audio outputs. ●... -
Page 10: Av Equipment Connections
AV EQUIPMENT Connections You can use the input and output terminals on the TV set as follows for basic accessory inter- connections. HDMI (basic) HDMI is a digital connection system that can carry both video and audio information. Using HDMI connections to this TV is recommended where accessory equipment can support higher resolution modes (such as 1080i/1080p) from products such as upscaling DVD players, Blu-ray players and high-performance gaming consoles. -
Page 11: Av (Audio/Video)
AV (Audio/Video) This TV provides an AV input and AUDIO output using line-level analogue stereo Audio and composite format Video signals for compatibility with earlier accessory devices (eg. VCRs, CRT TVs, basic gaming consoles etc). Yellow (Composite video) White (Audio Left) Red (Audio Right) AUDIO OUTPUT AC-INPUT... -
Page 12: Remote Control
Remote Control 1:POWER: To set the TV to Standby or Power On modes. :In USB mode, used as fast reverse key; press repeatedly to speed up operation. : In USB mode, used as fast forward key; press repeatedly to speed up operation. : Press the Play Button in USB mode to begin or continue Playback. -
Page 13: Getting Started
Getting Started Once you have connected your TV antenna and other AV playback equipment (eg. CD, DVD, Blu- ray player) to the appropriate input sockets on the rear and side of the TV, you will need to be comfortable with selecting several basic operations before setting up your TV using the Menu system. -
Page 14: Menu Settings
Menu Settings Using the Main Menus Once the TV has run through the Auto Tune mode and found the available TV stations, you will then need to know how to select the relevant input you want (eg. DTV, AV, HDMI etc) and also how to select and adjust the various menus that allow you to tailor the operation of the TV to suit you application. -
Page 15: Dtv Manual Tuning
DTV Manual tuning DTV Manual Tuning You can select a DTV channel and find out how many programmes are being VHF CH transmitted on this channel. Press◀ ▶ to select the channel, then press OK to search the programs. Note: The Bad Normal Good bar graph on this screen shows the relative signal Press OK to search intensity during DTV reception only. -
Page 16: Picture Menu
Picture Menu The second item of the MENU is the PICTURE MENU. You can adjust picture Picture Mode Standard Color Temperature effects here, such as contrast, brightness etc.. Aspect Ratio Noise Reduction Backlight < > PICTURE Dynamic Contrast Press▲ ▼ to move and press OK to adjust. Advance image Color Temperature Medium... -
Page 17: Time Menu
Time Menu Clock -- The fourth item of the menu is the TIME MENU. You can adjust the clock, Off Time On Time power on/off times, sleep timer etc. Press ▲ ▼ to move and press OK to Sleep Timer <... -
Page 18: Pvr File System
4. HDMI ARC (Audio Return Channel) may allow compatible equipment connected to the TV (eg. A sound bar) to receive audio from the TV via a “return” channel in a compatible HDMI cable, so that the sound is heard through the sound bar without having to connect a second cable between the two devices. -
Page 19: Speed
Speed This will show the supported speed of recording, and whether your storage device can support HD DTV recording. Speeds above 5,500kb/s are usually more successful when recording HD TV material. Record Limit This will show the approximate time you will be able to record to your USB drive or Hard Disc. FACTORY RESET NOTE If you wish to reset your TV, please select the Restore Factory Default option. -
Page 20: Epg Menu (Electronic Program Guide)
EPG MENU (Electronic Program Guide) The EPG Menu is used to look at what is being broadcast by DTV stations. After you turn the TV on and select the DTV input, your TV will commence receiving EPG data progressively over a period of time as you move from channel to channel. -
Page 21: Digital Media Player (Dmp)
Digital Media Player (DMP) To play and view limited types of low data-rate USB media files (such as JPEG, MP3 or AVI formats), use the USB Source that is accessible from the Input button on the Remote Control. For playback of high data-rate media files, the use of an external Media Player (not supplied) will be required. -
Page 22: Troubleshooting
Troubleshooting Issue / Symptom Suggested Solution Picture Audio Check antenna position, Snow Noise direction and connection. Check antenna position, Ghosting Normal Audio direction and connection. Electronic equipment, car/ Interference Noise motorcycle, fluorescent lights Volume (check if mute is Normal Picture Mute activated or if the audio systems are not correct) -
Page 23: Product Specifications
Product Specifications Viewing Picture Size (Diagonal) 55" (139.7cm) Resolution 3840 x 2160 Aspect Ratio 16:9 Display Colours 1.07B Brightness (Typical) 350 cd/m 4000:01 Contrast Ratio Response Time Viewing Angle (max) 160° (H) / 150° (V) TV System Digital TV: DVB-T DVB-T Decode MPEG2 Demodulator: COFDM...
