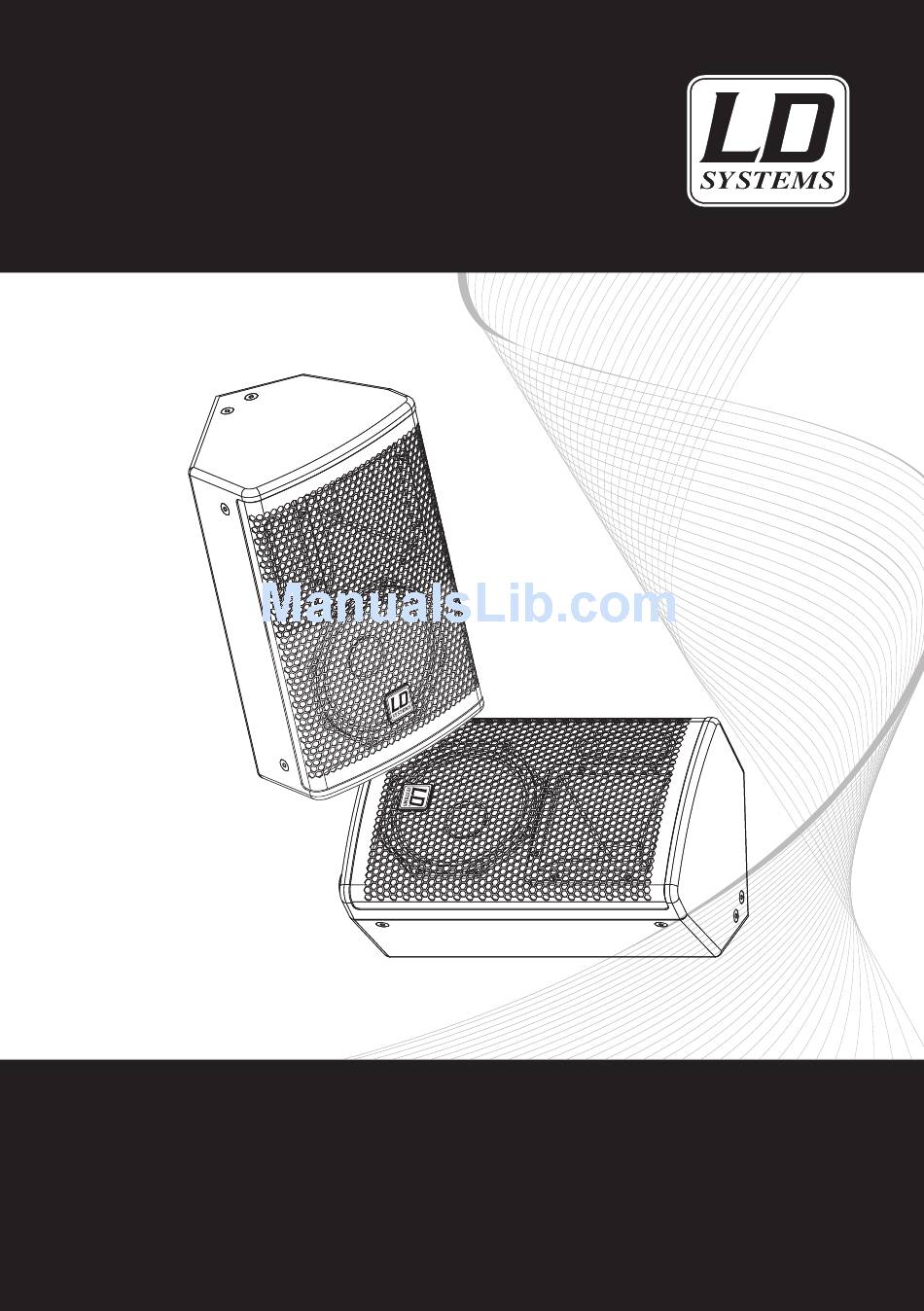

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO LD PREMIUM-LINE 2-WAY MULTIFUNCTION SPEAKER LDV8G² / LDV10G² / LDV12G² / LDV15G²...
- Page 2 We have designed this product to operate reliably over many years. Therefore LD Systems guarantees for high quality products with its name and many years of experience as a producer. Please take a few moments to read these instructions carefully, as we want you to enjoy your new LD Systems products quickly and to the fullest.
- Page 3 LD PREMIUM-LINE 2-WAY MULTIFUNCTION SPEAKER LDV8G² / LDV10G² / LDV12G² / LDV15G²...
-
Page 4: Preventive Measures
PREVENTIVE MEASURES: 1. Please read this information carefully. 2. Keep all information and instructions in a safe place. 3. Please follow the instructions. 4. Please observe all warnings. Don‘t remove safety instructions or any other information located on the device. 5. - Page 5 PREVENTIVE MEASURES: 26. If there is a risk of lightning strike or during extended periods of disuse, unplug the power plug. 27. During transport, make certain that the equipment being transported cannot fall down and possibly cause personal injuries and/or property damage. 28.
-
Page 6: Installation & Placement
INSTALLATION & PLACEMENT: SM707 SPEAKER STAND FLANGE ADJUSTMENT (LDV10G²/ LDV12G² AND LDV15G² ONLY) The integrated, patented speaker stand flange SM707 offers unparalleled possibilities for angle adjustments. The SM707 provides angles of +/- 13,5 degrees in 4.5° steps. Lift the cabinet slightly and carefully from the latching mechanism (approximately 1/2 cm), turn into desired angle and lower the cabinet. - Page 7 INSTALLATION & OPERATING: TRANSPORT & INSTALLATION During the transport of the LDV8G²/10G²/12G²/15G² speaker please take care of a sufficient protection against drop over, drop down etc. (e. g. protection with fastening belts during transport). Wearing of working clothes during carrying of the speakers is recommended (especially work gloves, work boots). Because of the weight the speakers should not be carried overhead.
- Page 8 VIEWS /POSITIONS: LDV15G² FRONT VIEW LDV12G² LDV10G² LDV8G²...
- Page 9 SPECIFICATIONS PASSIVE: LDV8G² LDV10G² LDV12G² LDV15G² Type: Bassreflex Bassreflex Bassreflex Bassreflex Woofer: 8“ Neodymium 10“ Neodymium 12“ Neodymium 15“ Neodymium Horn: 1” CD-horn 1.35” CD-horn 1.5” CD-horn 1.75” CD-horn Compression driver: 1” 1” 1” BMS 1,4” BMS Size WxHxD (mm): 286x460x266 340x535x322 390x620x368...
- Page 10 ACCESSORIES FOR TRANSPORT & INSTALLATION: PROTECTION COVER LDV8PC, LDV10PC, SPEAKER STAND LDV12PC, LDV15PC SPS56B / SPS56S LDVSE Suitable for LDV8G²-LDV15G². WALL MOUNTING SUPPORT SMBS5...
- Page 11 SWING BRACKET LDV8SB, LDV10SB, LDV12SB, LDV15SB WALL MOUNTING BRACKET LDV8WB / LDV10WB...
-
Page 12: Manufacturer's Declarations
MANUFACTURER´S DECLARATIONS: LIMITED WARRANTY This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer, Cameo and Eminence branded products. The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional independent warranty claims towards Adam Hall. -
Page 13: Limitation Of Liability
LIMITATION OF LIABILITY If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use. - Page 14 MANUFACTURER´S DECLARATIONS: WEEE-DECLARATION Your LD-Systems product was developed and manufactured with high quality materials and components wich can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime.
- Page 16 WWW.LD-SYSTEMS.COM Adam Hall GmbH | Daimlerstrasse 9 | 61267 Neu-Anspach | Germany Tel. +49(0)6081/9419-0 | Fax +49(0)6081/9419-1000 web : www.adamhall.com | e-mail : mail@adamhall.com...
