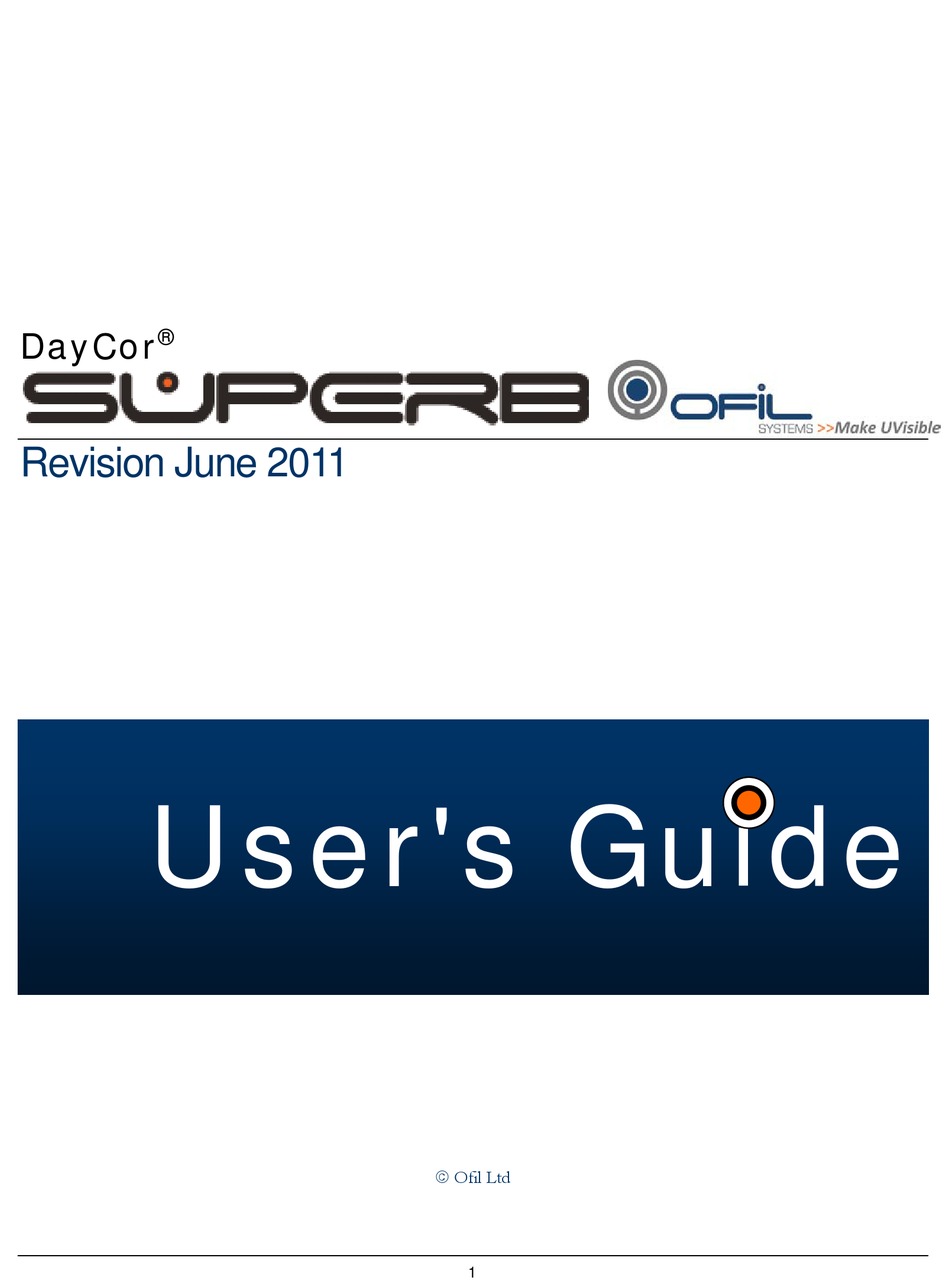

- Page 1 DayCor ® Revision June 2011 User's Guide Ofil Ltd...
- Page 2 POB 4016, Nes Ziona, 74140 Israel 16 Einstein Street, Weizmann Science Park, Nes-Ziona Israel 74000 www.ofilsystems.com ofil@ofilsystems.com Tel: +(972)-8-940-7953 Fax: +(972)-8-940-7873 USA Toll free: 1-866-2798672...
-
Page 3: Table Of Contents
T able of Contents CHAPTER 1 ..................................4 GETTING READY ................................4 CHAPTER 2 ..................................5 OPERATING TIPS ................................5 ..................................5 TATUS ..................................5 ISPLAY .................................... 6 OCUSING UV G ..................................... 6 LI – L ..............................7 NTEGRATION ................................... 7 OUNTING .................................... -
Page 4: Chapter 1
U S E R M A N U A L D A Y C O R ® S U P E R B Chapter 1 Getting Ready 1. Assemble all accessories 6. Remove the lenses cover so that you have easy access to them 2. -
Page 5: Chapter 2
U S E R M A N U A L D A Y C O R ® S U P E R B Chapter 2 Operating tips Status Line This function can be turned on/off through the Status function-key. The status line, positioned at the LCD bottom, shows the current status of the display mode, the focus mode, the UV gain, if long-integration is on and the counting value. -
Page 6: Focusing
U S E R M A N U A L D A Y C O R ® S U P E R B • Visible only mode • UV only mode • Combined mode While in the UV only mode, the status line displays the UV gain value only . The visible only mode is handy when there is a reflection on glass insulators that might be mistaken for corona. -
Page 7: Li - Long Integration
U S E R M A N U A L D A Y C O R ® S U P E R B LI – Long Integration Long Integration supports inspection of very weak signals or inspection in areas with abundant non-corona UV background signals. -
Page 8: Exposure
U S E R M A N U A L D A Y C O R ® S U P E R B How to count Enter the counting mode by pressing on the counting function-key. A small frame will appear on the display. -
Page 9: Status Display
U S E R M A N U A L D A Y C O R ® S U P E R B To switch to manual exposure, press on the exposure function-key and as a result an indication of the exposure value appears. Using the up and down arrows the exposure values are changed. -
Page 10: Video Recording
U S E R M A N U A L D A Y C O R ® S U P E R B Video Recording To capture Corona it is recommended to record video clips. Corona is a flickering phenomenon and will not appear in every frame. To capture video clips you need to use the Rec button. -
Page 11: Chapter 3
U S E R M A N U A L D A Y C O R ® S U P E R B Chapter 3 Inspection tips Handling Non-Corona UV Background Non-corona UV spots are characterized by their random manifestation. Corona UV spots are characterized by their repetitive manifestation. - Page 12 • Further reduce the UV gain until you see a small repetitive corona spot and the screen is almost clean from random background. Below is an example with Ofil's laboratory corona generator. The corona is in the yellow circle and the background noise is due to a nearby UV lamp.
-
Page 13: Chapter 4
U S E R M A N U A L D A Y C O R ® S U P E R B Chapter 4 Troubleshooting Checking Alignment of the UV and Visible Images The UV image (corona) and the visible object on which corona is generated should remain aligned throughout the LCD display and their relative position should be kept whether in the center or off center.
