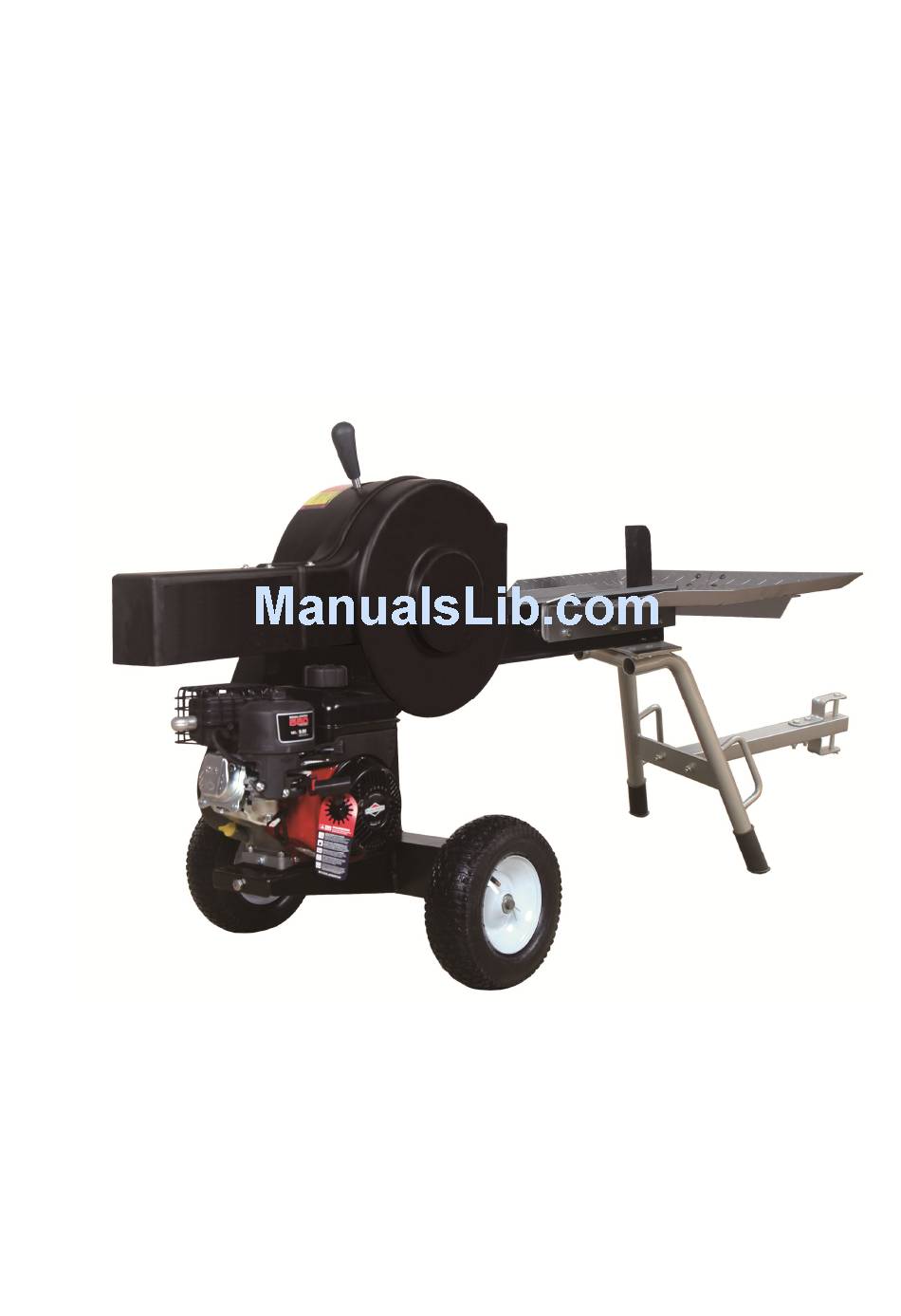

T20 KINETIC LOG

SPLITTER

Instruction & Assembly Manual

Patent Pending

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

REV071316 LSF2000

Table of Contents

Need help?

Do you have a question about the T20 and is the answer not in the manual?

Questions and answers

Summary of Contents for kinetic T20

Page 1 T20 KINETIC LOG SPLITTER Instruction & Assembly Manual Patent Pending SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE REV071316 LSF2000...
Page 2: Table Of Contents
Table of Contents General Warnings and Rules…………………………………………………….3 Hazard Signal Word Definitions………………………………………………….4 Assembly Instructions…………………………………………………………5-12 Kinetic Splitter General Instructions……………………………………………13 Operation Instructions………………………………………………………14-15 Maintenance and Storage………………………………………………………16 Troubleshooting………………………………………………………………….17 Specifications…………………………………………………………………….18 Parts Drawing & Parts List…………………………………………………..19-23 - 2 -...
Page 3: General Warnings And Rules
GENERAL WARNINGS GENERAL WARNINGS READ and UNDERSTAND this manual READ and UNDERSTAND this manual completely before using T20 Log Splitter Log Splitter. Operator must read and understand all safety nderstand all safety and warning information, operating instructions, information, operating instructions, maintenance and storage instructions before operating this equipment before operating this equipment.
Page 4: Hazard Signal Word Definitions
Hazard Signal Wo Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid safety messages that follow this symbol to avoid possible injury or death.
Page 5: Assembly Instructions
If you have damaged components: Contact the freight company that delivered the log splitter and file a claim. T20 LOG SPLITTER ASSEMBLY Set the shipping crate on a solid flat surface and carefully remove the lid. Use two people and take all parts out of the shipping crate and inspect the components to ensure there are no missing pieces before starting to assemble the log splitter follow steps 1 through 13.
Page 6 STEP 2: Attach the Front Support Leg to the Beam 1. Attach the front support leg to the beam using hex bolt M10x30, flat washer Ø10, lock washer Ø10 and nylon lock nut M10. STEP 3: Attach Beam to the Axle Assembly 1.
Page 7 STEP 4: Mount Engine and Connecting Belts 1. Position the engine over its mounting plate. 2. Push engine assembly forward and install square nut and nylon lock nut M10. 3. Work the belts onto the engine pulley making sure that belts stay in corresponding grooves on fly wheels.
Page 8 STEP 5: Attach Outer Housing 1. Attach threaded rod into the holes in the wheel stand and tighten. (Fig. 1 & Fig. 2) Fig. 1 Fig. 2 Fig. 3 2. Attach outer housing using inner hex round head screw M6x20, lock washer Ø6 and large flat washer Ø6.
Page 9 STEP 6: Attach the End Cover and Handle 1. Attach the end cover to the beam using inner hex round head screw M6x20, lock washer Ø6 and large flat washer Ø6. 2. Attach the safety handle to the handle connecting plate, then fixed with inner hex round head screw M6x20, lock washer Ø6.
Page 10 STEP 8: Attach the Left Side of the Worktable 1. Attach the left side of the worktable to the log cradle using hex bolt M10x30, flat washer Ø10 and lock washer Ø10. STEP 9: Attach the Right Side of the Worktable 1.
Page 11 STEP 10: Connect the Right and Left Sides of the Worktable 1. Fix the worktables to the front bracket using inner hex round head screw M10x25, flat washer Ø10, lock washerØ10 and nylon lock nut M10. 2. Connect the right and left sides of the worktable using the table-board connecting plate, inner hex countersunk head screw M8x20, flat washer Ø8 and nylon lock nut M8.TIGHTEN ALL HARDWARE.
Page 12 STEP 12: Add Engine Oil 1. Make sure the log splitter is on a level surface. 2. Remove oil fill cap/dipstick to add oil. 3. Refer to the separate owner’s engine manual for oil capacity; replace oil fill cap/dipstick. 4. Check engine oil level daily and add as needed. NOTE: During the break-in period check the engine oil level often.
Page 13: Kinetic Splitter General Instructions
Kinetic Splitter General Information 1. Break in period - Break in period for the kinetic splitter is 500 cycles. During this period rack will return slower than normal. 2. Principle of operation - This unit is designed to outperform the traditional hydraulic 20ton log splitter.
Page 14: Operation Instructions
Operation Instructions WARNING Before operating or using the log splitter, review the instructions below and all safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders. WARNING ALWAYS use the log splitter for its intended use. ONLY use the log splitter to split wood logs, length wise with the grain.
Page 15 NOTE: Only one person operates the kinetic log splitter. Keep everyone else outside the splitting zone when operate the kinetic log splitter. 6. Always wear safety gear, eye protection, gloves and work boots when operating the log splitter. 7. Start the engine and make sure the log splitter is on level ground before operating.
Page 16: Maintenance And Storage
Annually clean and lightly lubricate all moving parts o r when needed. · Use a glossy enamel spray paint to touch up scratched or worn painted metal surfaces. · Never exceed load capacity rating of T20 it will damage the log splitter. What When Nuts and Bolts Each Use Check for loose bolts, tighten before operating.
Page 17: Troubleshooting
Troubleshooting Problem Cause Solution Engine will not start 1. Check gas level 1. Add gasoline 2. Check oil level 2. Add oil 3. Check fuel ON/OFF 3. Reference engine manual 4. Check ON/OFF switch Push plate cannot Wood Chips or Debris under 1.
Page 18: Specifications
Specifications Cycle Time ....................4 Sec Wedge Size ................6.3” Harden Steel Max. Log Length .................... 20.3” Wheel Size ....................... 13” Working Height ....................25.6” Hitch Type ....................Pin Type Work Table Length .................... 33” Max. Towing Speed ..................5MPH Overall Size ................89.45”x30.51”x41.73” NOTE: For Engine Details Refer to the Engine Owner’s Manual.
Page 19: Parts Drawing & Parts List
Parts Drawing & Parts List - 19 -...
Page 20 Parts Drawing & Parts List Ref# Drawing No. Description LSF2000-00001 Right Worktable 911608020 Inner Hex Countersunk Head Screw M8X20 LSF23S-00001 Table-Board Connecting Plate 9301-08000-DX Flat Washer Ø8 9206-08000 Nylon Lock Nut M8 9301-10000-DX Flat Washer Ø10 9206-01000 Nylon Lock Nut M10 LSF2000-00002 Front Bracket 9306-10000DX...
Page 21 Parts Drawing & Parts List Ref# Drawing No. Description 9101-08012-8.8DX Hex Screw M8x12 LSF2000-00014 Plastic Cap 9215-03015-FH Round Nut M30x1.5 9319-30000-FH Tab Washer Ø30 9604-30206 Tapered Roller Bearing 30206 LSF2000-00015 Axle of Pressure Roller LSF2000-00046 Screw LSF2000-00043 Bolt LSF2000-00047 Tension Spring 9302-08000DX Large Flat Washer Ø8 LSF2000-00016...
Page 22 Parts Drawing & Parts List Ref# Drawing No. Description LSF2000-00025 Clutch Tooth Outside LSF2000-08000 Sliding Block LSF2000-00026 Flywheel LSF2000-00027 Inner Gear of Clutch 9603-80206 Bearing 80206 9101-12030-8.8DX Hex Bolt M12x30 LSF2000-00028 Left Out Housing LSF2000-00029FH Large Baffle Ring 9308-06200 Circlip for Hole Ø62 LSF2000-00030 Spacer LSF2000-00049...
Page 23: Parts Drawing & Parts List
Parts Drawing & Parts List Ref# Drawing No. Description LSF2000-00045 Engine Clutch Sleeve LSF2000-00033 Clutch 60-2A 9101-1290-8.8DX Engine Position Bolt LSF2000-00050 Square Nut 8801-4.78*4.78*50 Flat Key 4.78x4.78x50 9701-A1727 A-1727 Belt Engine 9112-10030-8.8FH Inner Hex Screw M10x30 LSF2000-00035 Elastic Bar 9101-08090-8.8DX Hex Bolt M8x90 LSF2000-00034 Reset Tension Spring...
