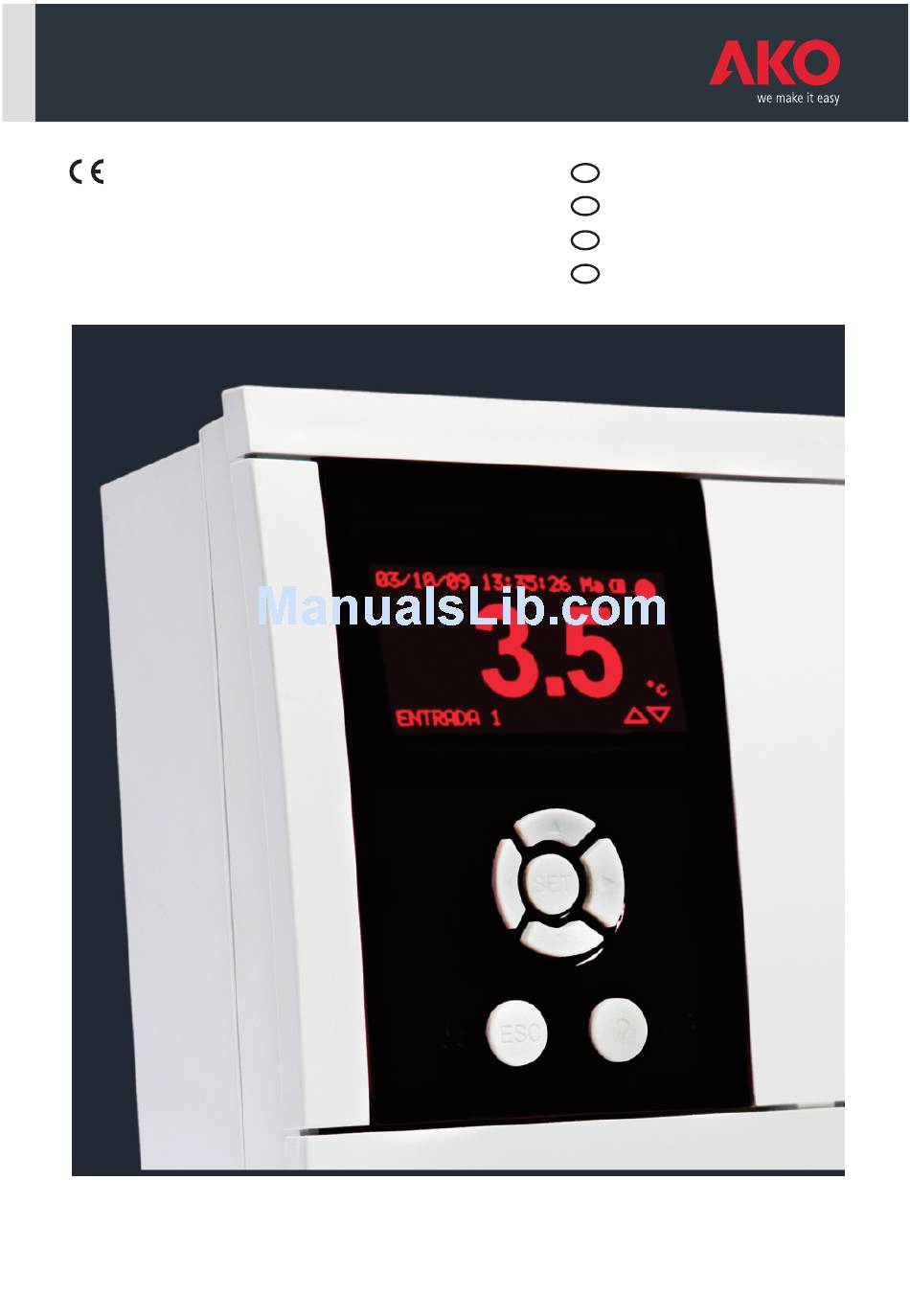

- Page 1 1575H100 Ed.03 Registradores de datos CAMRegis Manual de usuario CAMRegis data loggers User Manual Enregistreurs de données CAMRegis Manuel d'utilisation CAMRegis-Datenschreiber Benutzerhandbuch AKO-15740 AKO-15742 AKO-15750 AKO-15752...
-
Page 2: Table Of Contents
5.2 With PC or AKO-5005........ -
Page 3: Chapter 1: Presentation
Using the logger contrary to the manufacturer's instructions may affect the device's safety requirements. To ensure that the device operates correctly only probes supplied by AKO should be used. Between –40 ºC and +20 ºC, if the NTC probe is extended to up to 1,000 m with minimum 0.5 mm2 wire, the maximum deviation will be 0.25 ºC (wire for probe extension ref. -
Page 4: Chapter 2: Description
From the logger menu, prints the data or the graph shown on the screen. From the alarm menu, prints the alarm log. Stops any printing in progress. Only models AKO-15742 and AKO-15752 If the recording interval is 15'. -
Page 5: Chapter 3: Operation
Input disabled T Alarm signal delayed < Maximum alarm Minimum alarm Summary of inputs (only AKO-15740 and AKO-15742) Displays a summary of the readings of all inputs whether active or not (does not display the description). Input Input No. reading... -
Page 6: Fast Printing
3.2.- Fast printing 3.2.- Fast printing (only AKO-15742 and 15752) (only AKO-15742 and 15752) When the D When the D key is pressed the fast printing function is executed. This function prints the graphs of all the active key is pressed the fast printing function is executed. This function prints the graphs of all the active inputs, with the data logged during the last period. - Page 7 Date and hour of the recording (only AKO-15742 and 15752). -Fast printing (only AKO-15742 and 15752). -Fast printing (only AKO-15742 and 15752). Prints the graph of all the active inputs with the data recorded during the selected period. Prints the graph of all the active inputs with the data recorded during the selected period.
- Page 8 3.3.3.- Recording mode 3.3.3.- Recording mode 3.3.3.- Recording mode 3.3.3.- Recording mode 3.3.3.- Recording mode Allows you to start, stop or programme the recording of data. The unit has three operating modes: The unit has three operating modes: The unit has three operating modes: The unit has three operating modes: The unit has three operating modes: Recording stopped (NO REC)
-
Page 9: Chapter 4: Setting And Configuration
4.- Setting and configuration To access the programming menu, press the SET key for 5 secs. If you have defined a password you must enter it and press SET again. 4.1- Logger Parameters related to the logger's configuration. Time zone: Select the time zone in which the unit is installed. -
Page 10: Language
NTC: There is an NTC probe connected. Digital: There is a voltage-free contact connected. Pt100: There is a Pt100 probe connected (only AKO-15750 and AKO-15752) Display unit: (Only for NTC, Pt100, Pt1000 and 4-20mA) Define the display units (ºC or ºF). If the input type is 4-20mA, you can define the units by means of the built- in text editor (see page 28). -
Page 11: Contrast
Maximum alarm delay: Maximum alarm delay: (Only for NTC, Pt100, Pt1000 and 4-20mA) (Only for NTC, Pt100, Pt1000 and 4-20mA) Configures the delay time from when the maximum value is reached until the alarm is activated. Configures the delay time from when the maximum value is reached until the alarm is activated. Enable min. -
Page 12: Logged Data
4.5- Logged data 4.5- Logged data 4.5- Logged data 4.5- Logged data Displays the data contained in the memory blocks. The recordings saved are ordered by blocks. Each block contains the information for a certain recording period. This The recordings saved are ordered by blocks. Each block contains the information for a certain recording period. This The recordings saved are ordered by blocks. -
Page 13: Chapter 5: Connectivity
5.- Connectivity This unit has a port for connecting RS485 (MODBUS) data, enabling it to communicate with other AKO units and This unit has a port for connecting RS485 (MODBUS) data, enabling it to communicate with other AKO units and... -
Page 14: With Pc Or Ako-5005
5.1- With PC or AKO-5005 Any AKO unit that has a comms port can be connected and it is possible to connect up to 127 units to a PC or to the AKO-5005 web server. Each of these units must have a different MODBUS address and in the case of CAMRegis loggers must be configured as slaves. -
Page 15: Chapter 6: Changing The Thermal Paper Roll
6- Changing the thermal paper roll AKO-15742/15752 only When a roll of paper runs out, you must put in a new one Ref. AKO-15703. -With the unit connected to the network, open the front cover and push the release lever (1) back. -
Page 16: Chapter 7: Frequently Asked Questions
7.- Frequently asked questions 7.1 Date / time 7.1.1.-What happens when I put back the time or date and there is data recorded later than the new date/time? Do I lose this data? No. But it stops being visible when you enter via the user menu, as the unit detects incongruent dates/hours. However, you can display them by accessing the "Recorded data"... - Page 17 7.2 Printing 7.2.1.-When I press the print key (Fast printing function), the following message appears on the screen: “Insufficient data to print the complete graph”. This indicates that the unit does not have sufficient data stored to create a complete graph and can occur in any of the following cases: You have only recently installed the logger and do not yet have sufficient data recorded, i.e.
- Page 18 7.2.9.- When printing after changing the roll of paper, it comes out normally but there is nothing printed on it. Make sure the paper is inserted properly. Since it is thermal paper, only one of the sides is printable (see section 6) 7.3 Data logging 7.3.1.-The unit doesn't display the data recorded on the current day If the memory block containing the data of the current day also contains data from the previous day, in order to...
- Page 19 AKO ELECTROMECÁNICA, S.A.L. Av. Roquetes, 30-38 | 08812 Sant Pere de Ribes | Barcelona | España Tel. (34) 938 142 700 | Fax (34) 938 934 054 | e-mail: ako@ako.com | www.ako.com Nos reservamos el derecho de suministrar materiales que pudieran diferir levemente de los descritos en nuestras Hojas Técnicas. Información actualizada en nuestra web.
