Xpress MXP5223TLT Owner's Manual

High speed commercial combination oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

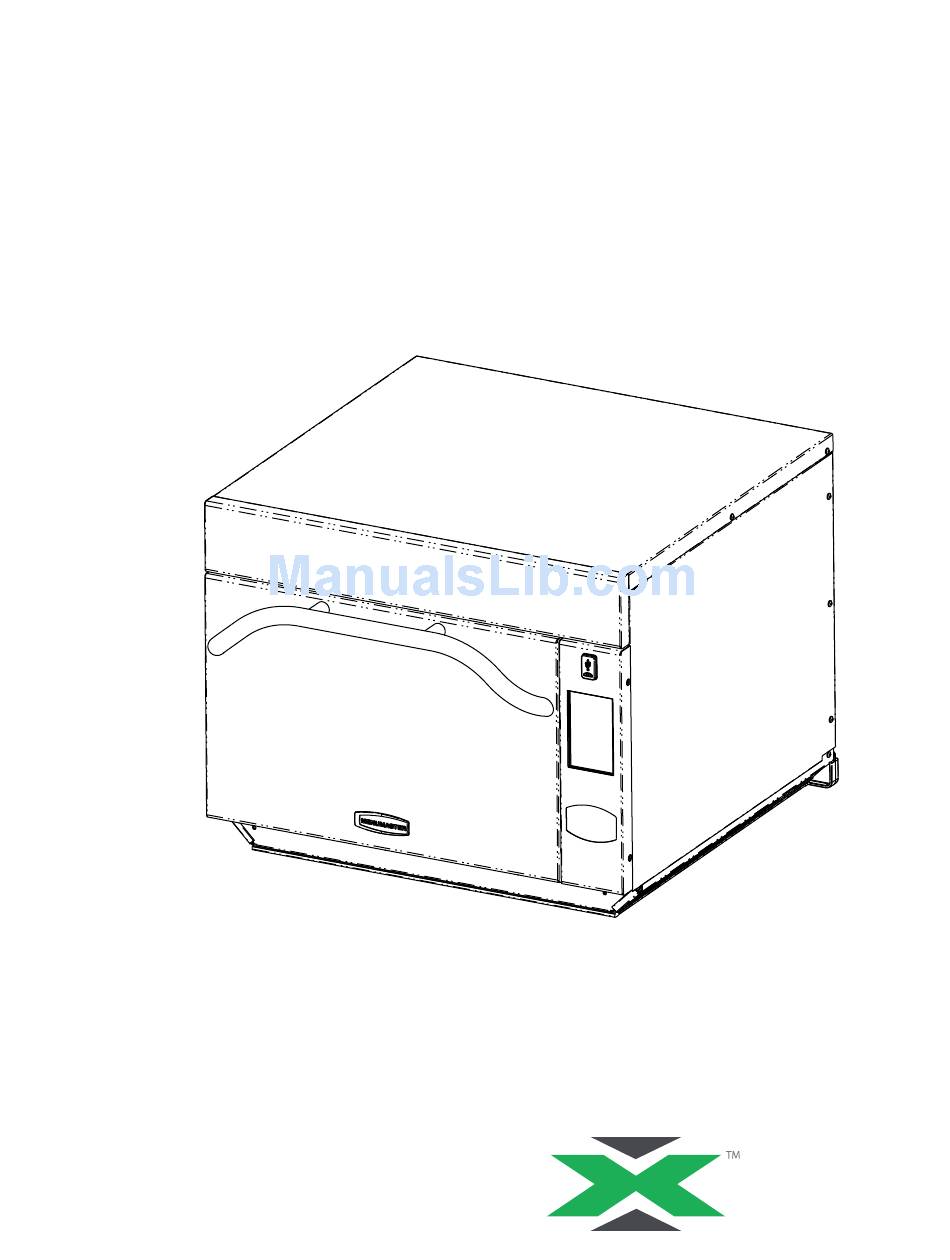

Owner's Manual
HIGH SPEED COMMERCIAL COMBINATION OVEN
Keep these instructions for future
reference. If the equipment changes
ownership, be sure this manual
accompanies equipment. Please refer to
PRESS
the SAFETY INSTRUCTIONS for important
safety information prior to using this oven.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXP5223TLT and is the answer not in the manual?

Questions and answers

Summary of Contents for Xpress MXP5223TLT

  • Page 1 Owner’s Manual HIGH SPEED COMMERCIAL COMBINATION OVEN Keep these instructions for future reference. If the equipment changes ownership, be sure this manual accompanies equipment. Please refer to PRESS the SAFETY INSTRUCTIONS for important safety information prior to using this oven.

  • Page 2: Model Identification

    Model Identification When contacting ACP, provide product information. Any questions or to locate an authorized ACP servicer, Product information is located on oven serial plate. call ACP ComServ Service Support. Record the following information: – Inside the U.S.A. or Canada, call toll-free at 866- Model Number: _____________________________ 426-2621.
  • Page 3 Features 4 Touch Screen Display 1 Door Handle Display provides user interface. Use for time input, Ergonomically designed for one handed operation. programming and oven operation. 2 Unit Serial Number 5 ON/OFF Key Located on the lower left hand side and back of the oven.

  • Page 4: Installation

    Installation STEP 1 - Unpack Oven WARNING • Inspect oven for damage such as dents in door or inside oven cavity. • Report any dents or breakage to source of purchase immediately. Excessive Weight Hazard Do not attempt to use oven if damaged. Use two or more people to move and install oven.
  • Page 5 General User Instructions COOKING TIPS 1. Metal containers can be used in the AXP with a height no more than 2 inches. Different types of metal conduct heat at different speeds. Aluminum heats faster than stainless steel. Avoid using silcone pans and accessories.

  • Page 6: Touch Screen Icon Descriptions

    Touch Screen Icon Descriptions Power On Icon • Press to preheat oven.(Fan will continue to run if temperature is over 200°F / 95°C). Menu Icon • Press to access a menu screen for manually editing recipes, changing user options, etc. Home Icon •...
  • Page 7 Touch Screen Icon Descriptions Programmed Recipe Icon • Press to begin the cook cycle for the desired recipe Pause Icon • Press to pause a cook cycle Stop Icon • Press to stop and return to the main screen Tab Icons •...
  • Page 8 Touch Panel Menu Descriptions Menu Screen • Scroll up or down to choose from different categories Standby/Sleep Mode • Cools oven temperature and turns oven off Change Temperature • Changes current oven temperature Manual Recipe • Manually enter settings for a recipe Edit Recipe •...
  • Page 9 General User Instructions The home screen on the oven displays recipe options. Scroll up and down with your finger to navigate through onscreen menus and recipes. After the oven has preheated, the menu appears. The high speed oven comes preprogrammed with several menu items to simplify cooking. Standard preprogrammed menu items include: 1.

  • Page 10: Manual Cooking

    Manual Cooking Note: Manual cooking must be enabled in user options, see page 18) Use manual cooking when a specific entered time and cooking power levels are desired. It’s very useful when you are experimenting with new food items. Maximum cook time is 100 minutes. Microwave, fan and IR can be set to 11 different power levels between 0-100% with 10% increments.
  • Page 11 Manual Oven Programming Save a Menu Item from Manual Cook: 1. Complete steps 1-7 on page 10 at the manual cooking screen. 2. To save the settings and create a menu item, touch the blue save icon 3. Choose a background color and image to customize the menu item and then touch the right arrow to move to the next screen.
  • Page 12 Oven Programming - USB Flash Drive 1. Touch the blue menu icon at the bottom of the screen. 2. Scroll down and touch the “Load File” option 3. When prompted, insert the flash drive into the USB port Note: You must first create the XML file in the ACP Web App. See the Web App User Guide for instructions on how to do this.
  • Page 13 Oven Programming - Wi-Fi Connect an Oven to a Network: 1. Touch the blue menu icon at the bottom of the screen. 2. Touch the “Network” option. 3. Enable Wi-Fi capability by touching the “On” option. 4. Select the desired Wi-Fi network and enter the network’s password.
  • Page 14 Manual Oven Programming - Folders Manually Create a Recipe Folder: Note: You may also create folders in the ACP Web App. 1. Touch the blue menu icon at the bottom of the screen. 2. Touch the “Manage Folders” option in the menu screen. 3.
  • Page 15 Manual Oven Programming - Tabs Manually Create a Recipe Tab: Note: You may also add recipe tabs in the ACP Web App. 1. Touch the blue menu icon at the bottom of the screen. 2. Touch the “Manage Tabs” option in the menu screen. 3.

  • Page 16: Care And Cleaning

    AXP Care and Cleaning Daily Cleaning Recommendations: Follow the recommendations below for proper maintenance of the AXP oven. Please note: The use of caustic clean- ing products or those containing ammonia, phosphates, chlorine, sodium or potassium hydroxide (lye) can damage Care and Cleaning critical oven parts.
  • Page 17 AXP Care and Cleaning III. WEEKLY CLEANING Attention: Included with the oven is 1. Clean Air Filter Remove the air filters located on each a “Best Practices” cleaning poster. side of the oven at the base. Please display the cleaning poster Wash filter in a mild detergent solution made with warm water.

  • Page 18: User Options

    User Options There are several options you can change to customize the operation of the oven for your business. The table below shows these options; the factory setting is shown in bold type. Access User Options: 1. Touch the blue menu icon at the bottom of the screen. 2.

  • Page 19: Before Calling For Service

    Before Calling for Service To avoid electrical shock which can cause severe personal injury or death, do not remove outer case at any time. Only an authorized servicer should remove outer case. This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
