Instruction Manual for A5000 Series
MODEL A5000 SERIES
INSTRUCTION MANUAL
Caution
!
(1) Do not apply a voltage or current exceeding the maximum allowable
value; otherwise, it may damage the equipment.
(2) Use a power voltage within the operation range; otherwise, it may result
in a fire, electrical shock, or malfunction.
(3) The contents of this manual are subject to change without notice.
(4)
Although the contents of this manual have been prepared with extra
care, if you have any questions, or find errors or missing information,
contact the sales agent from which you purchased the product or Asahi
Keiki Co.,Ltd.
(5)
After reading this manual thoroughly, keep it in a convenient place for
future reference.
(6)
The mark on a label shows the measurement tail range of the input
specification of 8.1. clause.
1. Before Using the Product
Thank you for purchasing the A5000 series. This manual should be passed on to
the person who operates the product. Examine the product for damage caused by
transportation or any other defects. If you find any damage or defects, contact
the sales agent from which you purchased the product or Asahi Keiki Co., Ltd.
1.1 Model Codes
The model lineup of the A5000 series is shown below. Check that the model
code and specifications of your product match those you specified when order-
ing.
A 5 X X X - X X
Power unit
1: 100 to 240 V AC ±10%
2: 9 to 60 V DC
Display unit
1: Single display
2: Multi display
Output unit
0: None
1: Comparison
2: Analog
3: RS-232C
4: RS-485
5: Comparison and analog
6: Comparison, analog, and RS-232C
7: Comparison, analog, and RS-485
WATANABE ELECTRIC INDUSTRY CO., LTD.
A 5 X X X - X X
Input unit
01: DC voltage measuring unit
(range 11: ±99.99 mV)
02: DC voltage measuring unit
(range 12: ±999.9 mV ; range 13: ±9.999 V)
(range 14:±99.99 V ; range 15: ±600 V)
03: DC current measuring unit
(range 23: ±9.999 mA; range 24: ±99.99 mA)
(range 25: ±999.9 mA)
04: AC voltage measuring unit (average rms)
(range 11: 99.99 mV; range 12: 999.9 mV)
(range 13: 9.999 V)
05: AC voltage measuring unit (average rms)
(range 14: 99.99 V; range 15: 600 V)
06: AC voltage measuring unit (true rms)
(range 11: 99.99 mV; range 12: 999.9 mV)
(range 13: 9.999 V)
07: AC voltage measuring unit (true rms)
(range 14: 99.99 V; range 15: 600 V)
08: AC current measuring unit (average rms)
(range 23: 9.999 mA; range 24: 99.99 mA)
(range 25: 999.9 mA)
09: AC current measuring unit (average rms)
(range 26: 5 A)
10: AC current measuring unit (true rms)
(range 23: 9.999 mA; range 24: 99.99 mA)
(range 25: 999.9 mA)
11: AC current measuring unit (true rms)
(range 26: 5 A)
12: Resistance measuring unit
13: Temperature measuring unit (TC)
14: Temperature measuring unit (RTD)
15: Frequency measuring unit
(inputs: open collector, logic, and magnet)
16: Frequency measuring unit(input: 50 to 500 Vrms)
17: Strain gauze input unit (load cell)
18: Process signal measuring unit (4 to 20 mA or 1 to 5 V)
2. Mounting the Product

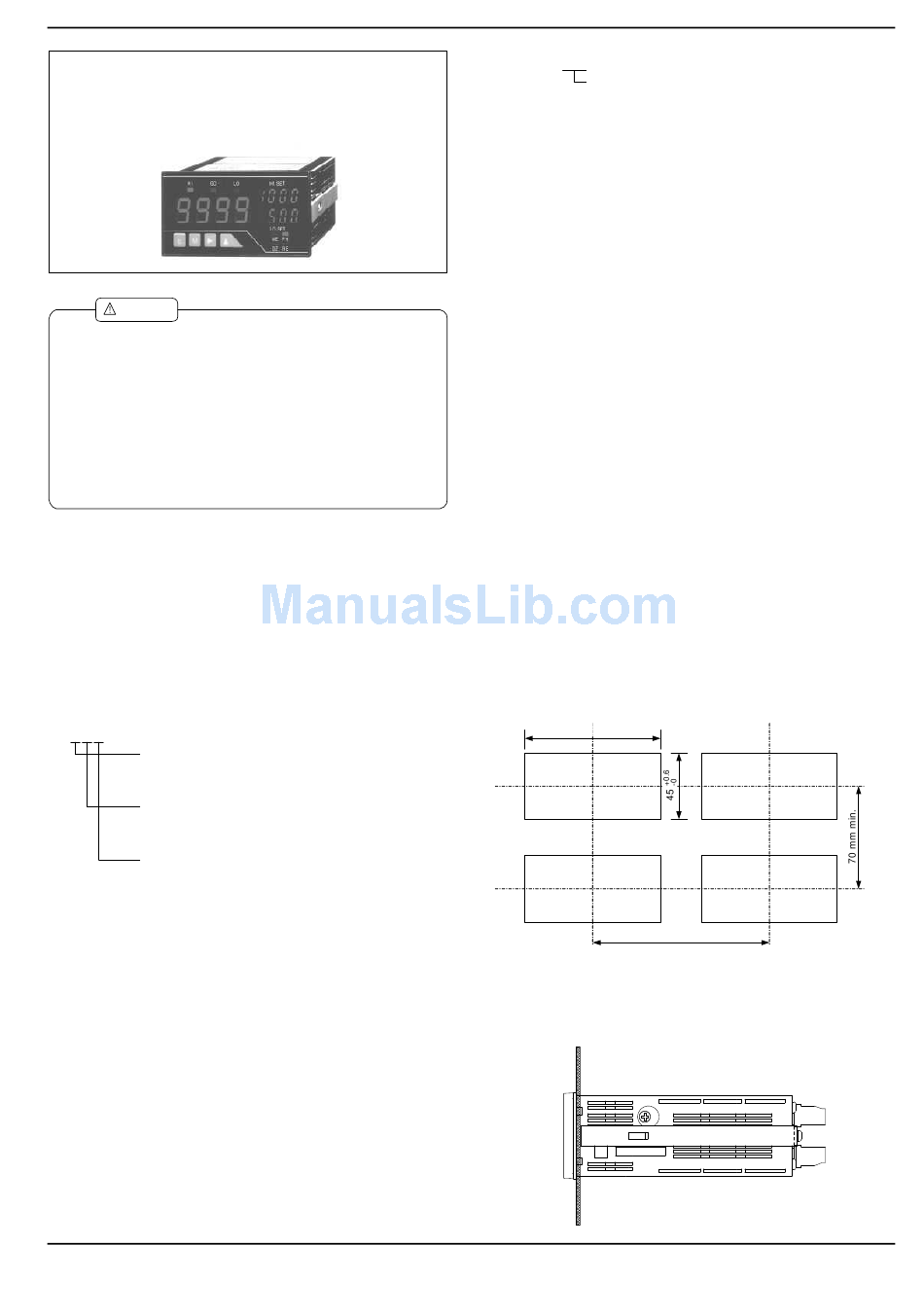

2.1 Dimensions for Cutting Panel
Cut the panel for mounting according to the following dimensions.
+0.8
92
-0
120 mm min.
2.2 Mounting the Product to the Panel
To mount the A5000 to the panel, remove its fittings and insert it through the
hole in the front of the panel. From the back of the panel, fix the product to the
panel with the fittings.
1/12
UU-33554p
2012.10
