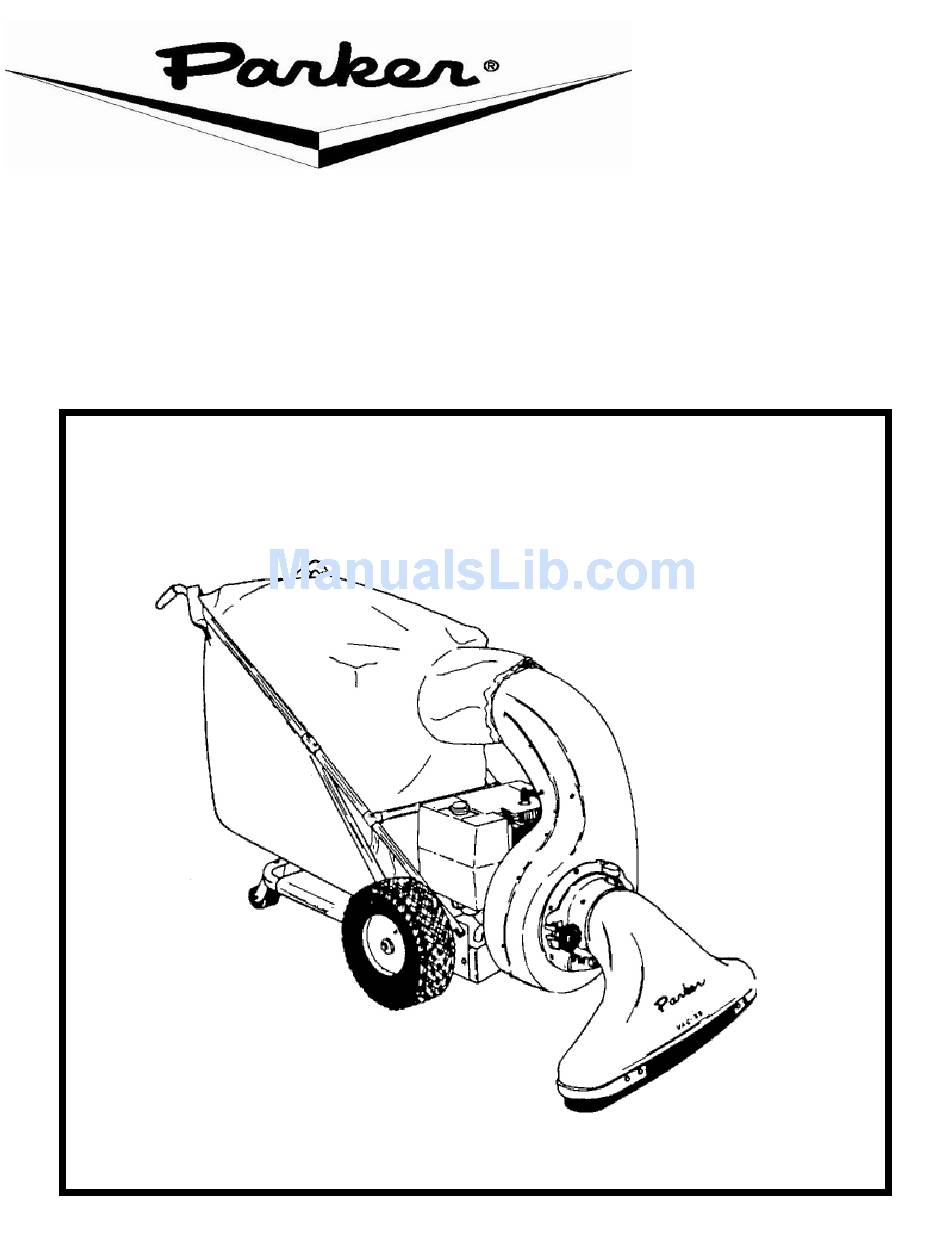

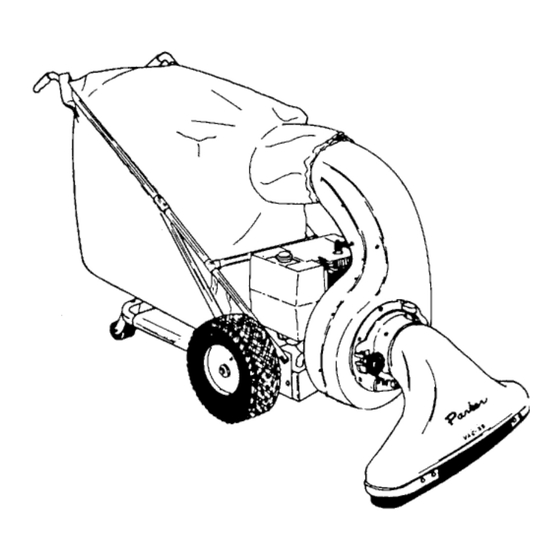

  • Page 1 Model: PV0165B PV0110B PV8708H PV8708K Vac 35 OPERATION CARE SERVICE PARTS Revised 6/02...
  • Page 2 TABLE OF CONTENTS 1, 2 General Safety Instructions Warning Decal Replacement 4, 5 Assembly Instructions Operating Instructions Safety Interlock System 8, 9 Handle Assembly 10 - 13 Engine Assemblies 14, 15 Housing Assembly Model # ______________________________ Serial # _________________________...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING WARNING • To prevent personal injury or property damage, do not attempt to start engine until all assembly steps are complete and you have read and understand the safety and operating instructions in this manual.

  • Page 5: Maintenance And Storage

    • Do not run engine in an enclosed area. Engine exhaust contains carbon monoxide gas, a deadly poison that is odorless, colorless, and tasteless. • Do not operate this equipment near buildings, windows, or air conditioners. • Do not allow hands or any other part of the body or clothing inside the vacuum inlet. •...
  • Page 6 SAFETY DECALS...

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS The VAC 35 covered in this owner’s guide is shipped complete in one box. Follow all instructions on assembly very carefully. 1. Unpack all items from carton. 2. Tip box over so wheels are toward floor. Pull unit out of box and stand upright.
  • Page 8 WARNING: The engine contains NO OIL. Read the Engine Instruction Manual carefully before operating the VAC 35. Be sure you know how to start and stop the engine before proceeding further. Do not start the engine until all assembly is finished.

  • Page 9: Operating Instructions

    TO START UNIT designed for heavy applications. Treat your IMPORTANT: Read the Engine Manual CAREFULLY VAC 35 with reasonable care and it will repay before operating the VAC 35. Before starting the you with long, trouble-free service. engine read and understand the following: 2.
  • Page 10 SAFETY INTERLOC SYSTEM This equipment incorporates two safety interloc systems. Figure 1 below is for the front vacuum Housing Assembly. Figure 2 is for the Cloth Bag Assembly. Both interlocs must be engaged for engine to start. Lanyard and Clip Part # 350138...
  • Page 11 HANDLE ASSEMBLY...

  • Page 12: Handle Assembly

    HANDLE ASSEMBLY Parts List Item Part No. Qty. Description 88-60-C Chassis Weldment 80-321-C Upper Handle 83-18-C Upper Handle 88-47-B Lower Handle 88-48-C Handle Back Brace 81-04-B Cross Brace, Upper 81-58-B Cross Brace, Lower SA-231-B Wheel Assembly 80-232-A Handle Grip 80-238-C Insert 80-276-A Clamp, Snap-On...
  • Page 13 HONDA Item Part No. Qty. Description 88-153-A Spacer 350500 8 HP Honda Engine 711380 3/8-16 Nyloc Nut 711508 .44 x 1.00 Flatwasher 711546 3/8 Helical Washer 713045 3/8-16 x 1.75 Hex Bolt (Grd. 5) 713047 3/8-16 x 2.25 Hex bolt (Grd. 5) 350150 .406 x .75 x 1.38 Spacer 715314...
  • Page 14 KOHLER Item Part No. Qty. Description 711380 3/8-16 Nyloc Nut 711508 .44 x 1.00 x .06 Flatwasher 711546 1/4 Helical Washer 713044 3/8-16 Hex Bolt (Grd. 5) 713044 3/8-16 Hex Bolt (Grd. 5) 715314 Muffler Decal 79-139-A Spacer 72-130-A Spacer 86-88-D 8 HP Kohler Engine 711515...
  • Page 15 BRIGGS & STRATTON 10 HP Parts List Item Part No. Qty. Description 232319 Spacer, .359 x 1.125 x 1.078 350602 Engine, 10 HP Intek B/S 360111 Spacer, 1 x 2 x 1 711374 Nut-Nloc 5/16-18 711506 WSR-5/6 STPL 711546 WSR-Helical 3/8 713034 BLT-HH 5/16-18 x 2.75 #5 713047...
  • Page 18 PARTS LIST Item Part No. Qty. Description Item Part No. Qty. Description 250136 Strain Relief 82-138-B-1 Special Washer 6.5 HP Only 101008 Rubber Grommet 711661 Spring Pin 340-1216 Hex Jam Nut 712810 10-24 x .62 MCH Screw 66-430-C Caster Bracket 713001 1/4-20 x .63 Hex Bolt 350130...

  • Page 19: Limited Warranty

    The Parker Sweeper Company warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of two years from date of purchase. In addition, Parker Sweeper Company will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.

This manual is also suitable for:

Pv0165bPv0110bPv8708kPv8708h
