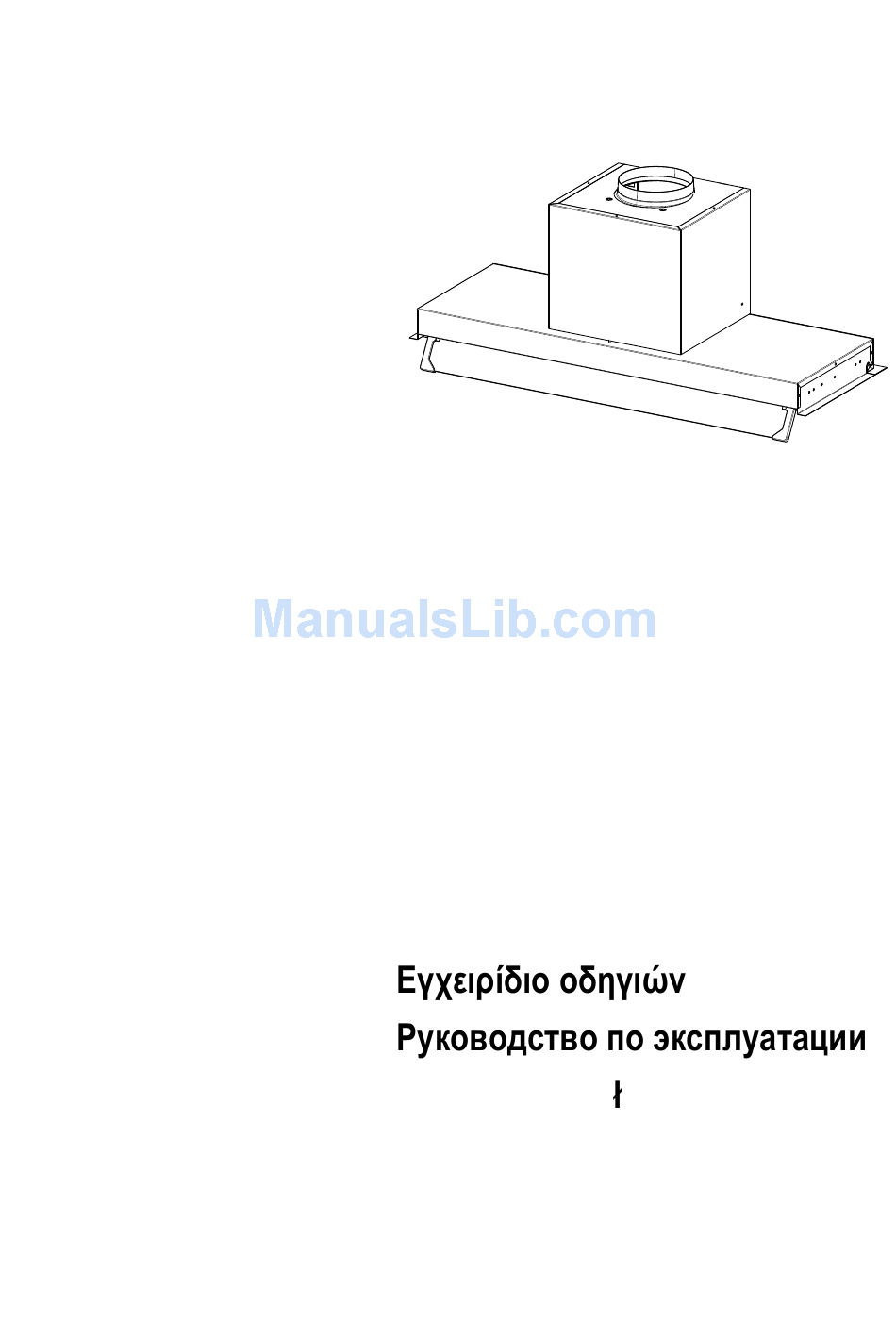

- Page 1 Libretto di Istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Manual de instrucciones Instrukcja Obs ugi Käyttöohje...
-
Page 2: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 3 • If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled. • Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
-
Page 4: Maintenance
• “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. • Clean and/or replace the Filters after the specified time period (Fire hazard). •... - Page 5 CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Fan unit, Filters Telescopic chimney, made up of: Upper chimney Lower chimney Reduction Flange ø 150-120 mm Ref. Q.ty Installation Components 7.2.1 Upper chimney fixing brackets Screws 3.9 x 13 Screws 2.9 x 9.5 Q.ty Documentation Instruction Manual...
-
Page 6: Fixing The Hood
INSTALLATION Fixing the Hood • Insert the Hood Canopy into the overhead unit. • Align the hood canopy with the front bottom edge of the unit (excluding any doors). • Remove grease filters. • Screw the hood canopy to the unit from the inside, using the screws 12a (3.9 x 13) provided. •... - Page 8 Fitting the Chimney Lower chimney • Open the two side pieces of the Chimney out slightly, insert them over the hood canopy and bring them back together again until they are in contact. • Fasten the Chimney to the sides of the Hood canopy using 2 Screws 12c (2.9 x 9.5), provided, without tightening completely.
-
Page 9: Control Panel
Control panel Button Function Turns the lights on/off at maximum strength. Fixed Turns the motor on/off at speed one. Fixed Turns the Motor on at speed two. Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. -
Page 10: Remote Control (Optional)
MAINTENANCE REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03- AAA type (not included). • Do not place the remote control near to heat sources. •... -
Page 11: Lighting Unit
Activated Charcoal Filter (Recirculation Version) This cannot be washed or regenerated, and must be changed when led S1 starts to flash, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.
