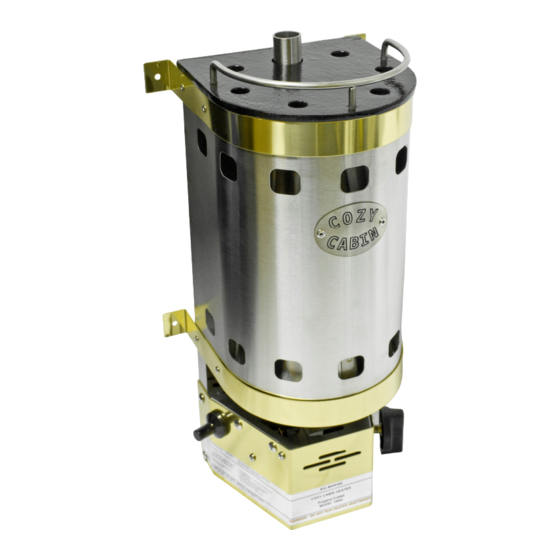

Propane Cozy Cabin Heater Model
#10000
Instruction Manual
This manual must be read and the requirements carried out
to ensure satisfactory performance.
DICKINSON MARINE RESERVES THE RIGHT TO MAKE CHANGES TO PRODUCTS
OR DOCUMENTS AT ANY TIME
Serial#___________________
www.dickinsonmarine.com
~
info@dickinsonmarine.com
Form#7.2-70 Issue#2
Advertisement
Table of Contents
Related Manuals for Dickinson 1000
Summary of Contents for Dickinson 1000
- Page 1 Propane Cozy Cabin Heater Model #10000 Instruction Manual This manual must be read and the requirements carried out to ensure satisfactory performance. DICKINSON MARINE RESERVES THE RIGHT TO MAKE CHANGES TO PRODUCTS OR DOCUMENTS AT ANY TIME Serial#___________________ www.dickinsonmarine.com info@dickinsonmarine.com...
- Page 2 WARNING! THIS IS A LOW PRESSURE PROPANE GAS APPLIANCE. YOU MUST HAVE A SEPARATE SINGLE STAGE OR A TWO STAGE 11” W/C LOW PRESSURE REGULATOR INSTALLED CORRECTLY OR OPERATION WILL RESULT IN A DANGEROUS FIRE AND WILL DAMAGE YOUR UNIT. **PLEASE READ YOUR INSTRUCTION MANUAL BEFORE USE OF THIS APPLIANCE* www.dickinsonmarine.com...
-
Page 3: Safety And Installation
Keep your proof of purchase and product serial number for warranty INTRODUCTION Thank you for selecting the Dickinson Marine Cozy Cabin Heater. Your unit was carefully inspected and tested at our factory. We take pride in producing one of the finest heaters manufactured for marine use. - Page 4 headroom. It is better to be closer to the ground whenever possible. Allow a safe distance between the sides and the bottom of the heater and combustible materials. Usually 6” is sufficient, but if in doubt, protect combustible material with metal and/or insulating type material such as ceramic tile.
- Page 5 LPG service center. We specifically recommend that only a high quality regulator be used with your Dickinson Marine Cozy Cabin Heater. It must be set at 11” water column. (In Europe this is sometimes expressed as .0274bar and is close to .5psi).
- Page 6 Locate the cylinder and regulator in a locker vented to the open air (preferably on the deck or cabin top) isolated from the hull interior by a vapor tight enclosure. Refer to local codes or Coast Guard requirements for details. Propane is heavier than air.
-
Page 7: Fuel System Testing
Recommended LPG System Installation Starting from the propane tank itself, the fuel line attachments should occupy the following positions: (a) the tank shut-off valve, (b) the pressure gauge, (c) the regulator, (d) the solenoid valve. Affix the caution label plate supplied with your Cozy Cabin Heater in the immediate vicinity of the gas cylinder in a place where it will be plainly visible. -
Page 8: Operating Instructions
Do not attempt to locate leaks by using an open flame. Repair and re-test the system before putting it into operation. For more detailed general instructions on the installation of Propane systems on boats, please refer to the American Boat and Yacht Council’s pamphlets #A-1 and #A-22 respectively. -
Page 9: Troubleshooting
TROUBLESHOOTING Contact Dickinson Marine directly, or consult your dealer, if the following suggestions do not resolve the difficulty. Gas Smell 1. Extinguish all open flames and smoking materials, close both manual and solenoid cylinder valves immediately. Make sure that the appliance valve is closed. -
Page 10: Replacing The Thermocouple
Burner Does not Stay Lit 1. Check to make sure the pilot is still on. If it has been accidentally extinguished, voltage will no longer be generated, and the valve will have snapped back to the closed position by the stainless steel spring. 2. - Page 11 3. When the thermocouple is heated, the electricity generated attracts the electromagnet in the valve and holds the valve open. If the flame is accidentally extinguished, the thermocouple cools, causing the electromagnet to spring back and closes the valve, therefore, no flow of gas. 4.
- Page 12 PARTS LIST www.dickinsonmarine.com info@dickinsonmarine.com Form#7.2-70 Issue#2...
-
Page 13: Limited Warranty
The buyer shall be responsible for shipping and insurance charges, if any, on the products returned for repair under the terms of this warranty. Dickinson Marine will pay shipping of products returned to the buyer. - Page 14 All rights reserved. No part of this manual may be reproduced without permission in writing from DickinsonMarine. Dickinson Marine also reserves the right to modify or change without notice, any materials, applications, equipment, accessories, and/or prices. All measurements and weights are approximate.
