Summary of Contents for Huskie Tools HP-700

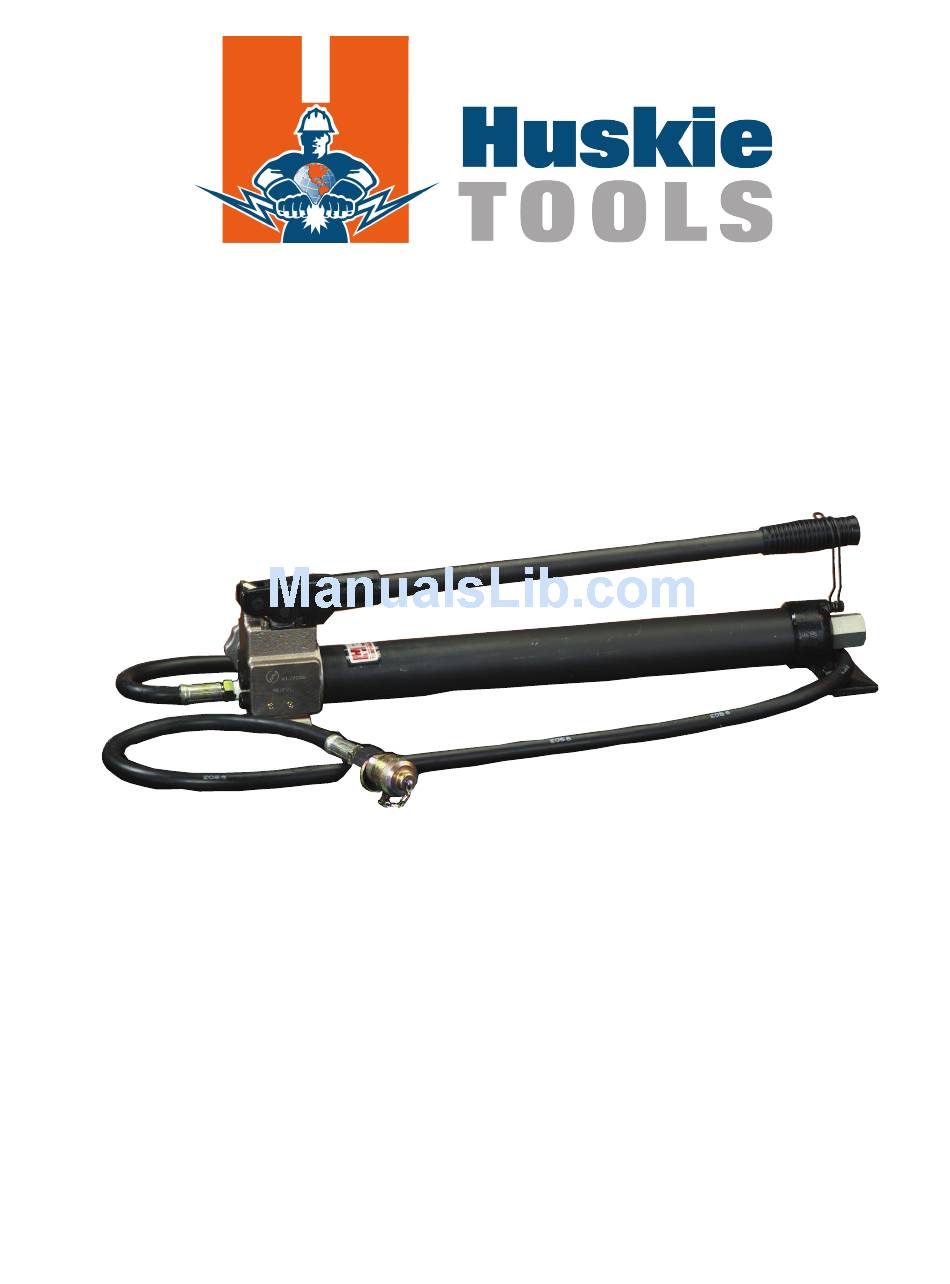

- Page 1 Operating Instruction Manual For HP-700 Hydraulic Hand Pump with Parts List...
-
Page 3: Specifications
HP-700 SPECIFICATIONS SPECIFICATIONS 10,000 psi HYDRAULIC HAND PUMP Weight: 20 lbs. Length: 23” · Two-Stage Pump Piston for Rapid Advance Oil Reservoir 44 cu/in fluid · External Pressure Adjustment from 4,000- 1st Stage .75 cu/in per stroke 2nd Stage .14 cu/in per stroke 10,000 psi ·... - Page 4 General Information and Troubleshooting 1. When attaching hoses, please be sure all couplers are securely fastened. 90% of our problems arise out of a loose coupler connection. If the unit fails to pump or retract, the problem usually lies with the couplers. 2.
- Page 5 Always change out the fluid completely when in doubt. 8. The HP-700 pump has a bypass relief system incorporated which will dump the fluid when the predetermine pressure (10,000 psi) is reached.
- Page 6 Operating Instructions for HP-700...
-
Page 7: No.description
Parts List for HP-700 NO.DESCRIPTION CODE QTY. NO. DESCRIPTION CODE QTY. CE-10 Snap Ring 40-16 Pin (50) 700S-01 Pin (51) 700S-02 Pump Handle Ass'y 700A-01 Pump Handle Grip 700S-04 Female Coupler FC-8/DP-8 Not Applicable Retaining Screw F700A-07 Copper Gasket (7) - Page 8 MODEL HP-700 WARRANTY Please see our complete warranty at www.huskietools.com/warranty.cfm. REPAIR AND WARRANTY CLAIMS All claims must be sent to Huskie for inspection and authorization. A Return Goods Authorization is required before shipping tools to Huskie. Secure the authorization by telephoning 1-800-860-6170 or writing to Huskie’s main office with details of claim.
- Page 9 MODEL HP-700 WARRANTY HOW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
- Page 10 198 N. Brandon Drive Glendale Heights, IL 60139 1-800-860-6170 FAX: 800-345-3767 www.huskietools.com info@huskietools.com...
