Summary of Contents for Hundure RAC-920PE

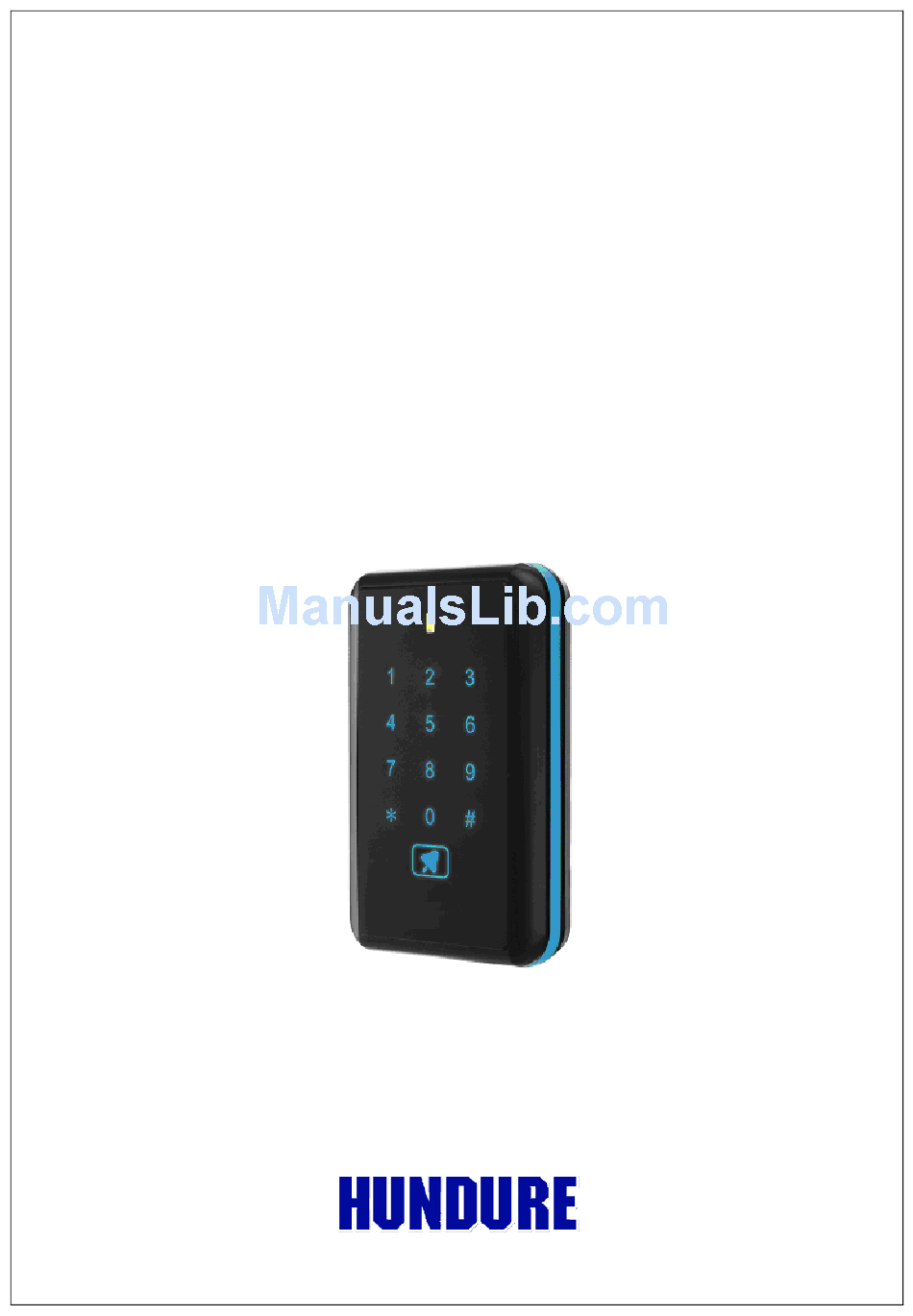

- Page 1 RAC-920PE/PM Standalone Access Controller Hardware Manual Version 1.01...
-
Page 2: Table Of Contents
5.2.5 Successive Deletion of Card Numbers ............26 5.2.6 Set Unlock Door Time ................27 5.2.7 Door Sensor Detection Time..............28 5.2.8 Enable/Disable Conditional Unlock Door Settings ........29 5.2.9 Compare valid Address................30 5.2.10 Advanced Settings 1 ................31 5.2.11 Advanced Settings 2 ................32 RAC-920PE/PM Hardware manual HUNDURE... - Page 3 5.2.32 Slave Reader Setting ................53 5.2.33 Relay Mode....................54 5.2.34 System Initialization .................55 Chapter 6 Testing......................56 Chapter 7 Troubleshoot ....................57 Appendix ...........................58 Appendix A： RAC-920 Function List ................58 Revision History Version Description V1.0 First Edition V1.01 3.2.6 Add a note RAC-920PE/PM Hardware manual HUNDURE...
-
Page 4: Chapter 1 Product Overview
Chapter 1 Product Overview 1.1 Package Contents R A C - 9 2 0 x 1 Quick Start Guide x 1 Plate x 1 Hex Key Wrench x 1 Screw x 3 Cable x 1 RAC-920PE/PM Hardware manual HUNDURE... -
Page 5: Features
Conditional Unlock Door function, able open 1~9999 seconds per time. Unique ID or Block reading format supported and programmable key value.(RAC- 920PM) Watchdog function secures system free from halting. RAC-920PE/PM Hardware manual HUNDURE... -
Page 6: Specifications
Real Time Clock Beep Tone Buzzer ID Setting DIP switch setting Read Format & Range 125 KHz (EM Compatible) (RAC-920PE) 13.56 MHz (MIFARE® Compatible) (RAC-920PM) EM: 8~10 CM(RAC-920PE) (max.), MIFARE®: 3~5 CM (RAC-920PM) (max.) Power Input DC 12V / 1A Current Consumption 250mA (max.) -
Page 7: Chapter 2 Physical Dimension
Chapter 2 Physical Dimension 2.1 Dimension Scale:mm RAC-920PE/PM Hardware manual HUNDURE... -
Page 8: Appearance Introduction
(Relay 0 signifies Controller relay. Relay 1~2 signifies relay in the external relay board. Relay0 Relay1 Relay2 Relay3 Mode 0 Door Door Siren/Alarm X Mode 1 Bell Door Siren/Alarm X PS: Siren and alarm can not work at the same time. Only select one once. RAC-920PE/PM Hardware manual HUNDURE... -
Page 9: Chapter 3 System Configuration & Wire Connections
Chapter 3 System Configuration & Wire Connections 3.1 System Configuration RAC-920PE/PM Hardware manual HUNDURE... -
Page 10: Wire Connections
3.2 Wire Connections 3.2.1 Controller Terminal Introduction A SW2 Case Sensor B SW1 IDSetting (Kindly refer to Chapter5.1) Contact( (Kindly refer to Chapter 3.2) JP1 Built in Relay RAC-920PE/PM Hardware manual HUNDURE... -
Page 11: Siren/Alarm Connection
3.2.2 Siren/Alarm Connection With ACU-30 for digital output RAC-920PE/PM Hardware manual HUNDURE... -
Page 12: Electronic Lock Setup
3.2.3 Electronic Lock Setup Without ACU-30 for digital output With ACU-30 for digital output RAC-920PE/PM Hardware manual HUNDURE... -
Page 13: Exit Button/Door Sensor Connection
3.2.4 Exit Button/Door Sensor Connection Without ACU-30 for digital output RAC-920PE/PM Hardware manual HUNDURE... - Page 14 With ACU-30 for digital output RAC-920PE/PM Hardware manual HUNDURE...
-
Page 15: Slave Reader Connection
3.2.5 Slave Reader Connection RAC-920PE/PM Hardware manual HUNDURE... -
Page 16: Power Supply Connection
3.2.6 Power Supply Connection Note：To avoid interference self- detection of sensitive keypad , please do not touch keypad when input power. RAC-920PE/PM Hardware manual HUNDURE... -
Page 17: Chapter 4 Installations
(C). Make sure the back plate and the controller upper cover guides are aligned. (D). Install the controller upper cover to the back plate. (E). Use the hex key wrench to fasten the screw onto the bottom of the controller. RAC-920PE/PM Hardware manual HUNDURE... -
Page 18: Communication Interface Connection
4.2 Communication Interface Connection RAC-920PE/PM Hardware manual HUNDURE... -
Page 19: Acu-30 Wire Diagram
4.3 ACU-30 Wire Diagram RAC-920PE/PM Hardware manual HUNDURE... -
Page 20: Chapter 5 Setting
Chapter 5 Setting 5.1 ID Setting RAC-920PE/PM Hardware manual HUNDURE... -
Page 21: Function Settings
PWR LED flashes red light After entering command, controller beeps once. Input the parameter settings for the command. NOTE: Command Code 93 clears the entire memory and deletes all card nos. Kindly take precaution before doing this operation. RAC-920PE/PM Hardware manual HUNDURE... -
Page 22: Add A Card Number
Passwords are not allowed under shared mode,. Card number has not been given a password. Kindly be aware of the access mode. If card swipe with password is selected, password should be set while adding the new card number. RAC-920PE/PM Hardware manual HUNDURE... -
Page 23: Delete A Card Number
5.2.2 Delete a Card Number Command Code 02. Deletes a single card number and also removes its access authorization. Master Card/Code (Default 30191000) Enter 02 Input Card Number Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 24: Delete All Card Numbers
Command Code 03. Deletes all valid card numbers. Deleting all card numbers will remove all access authorizations and requires user to input new card numbers. Kindly take caution in performing this operation. Master Card/Code (Default 30191000) Enter 03 Enter 03 Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 25: Successive Addition Of Card Numbers
Command Code 04 Successive Addition of Card Numbers. RAC-920 allows user to add card numbers in an efficient manner by simply entering the index card number and the total number of cards to add. Master Card/Code (Default 30191000) Enter 04 Initial Card No. Total no. of cards Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 26: Successive Deletion Of Card Numbers
This command is only allowed to be performed under shared memory. Command Code 05 Successive deletion of card numbers. All access authorizations will be deleted as well. Master Card/Code (Default 30191000) Enter 05 Initial Card No. Total no. of cards Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 27: Set Unlock Door Time
Default time is 4 sec. Time duration can be set from 1 to 600 sec. (System ignores parameters set to 0 or greater than 600 sec.; default time is applied.) Master Card/Code (Default 30191000) Enter 10 Unit is 0.01Sec. Unlock Door Duration Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 28: Door Sensor Detection Time
Alarm Relay to alert the administrator or security personnel. To deactivate the Alarm Relay, input the disarm code(Default is 0000). Master Card/Code (Default 30191000) Enter 11 Unit is 0.01Sec. Detection Time Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 29: Enable/Disable Conditional Unlock Door Settings
Command Code 12 Enter 1-9999 sec. to set conditional unlock door settings. The door can remain open until the allotted time. If parameter value is set to 0, then conditional unlock door function is deactivated. Master Card/Code (Default 30191000) Enter 12 Duration Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 30: Compare Valid Address
Command Code 13 Allows user to set the compare valid address. Compare Valid address=(Compare valid code Index-1)X16+Compare valid code length. 0=Select All Only support standard card mode Master Card/Code (Default 30191000) Enter 13 Comprae Valid Address Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 31: Advanced Settings 1
Door Prop Disable Door Prop Detection +128 Example： Door prop. detection enable controller beeps on door prop and forced door open detection is disabled.1+64+0=65 to perform the mentioned functions. Master Card/Code (Default 30191000) Enter 20 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 32: Advanced Settings 2
Keypad Tones Keypad Tones “ON” Enable Case Disable Case Sensor Sensor Enable Case Sensor +128 Example： Enable card seipe and keypad tones.16+32+0=48,Enter 48 to perform the mentioned functions. Master Card/Code (Default 30191000) Enter 21 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 33: Reswipe Card Check Time
5.2.12 Reswipe Card Check Time Command Code 22 Enables reswipe card check time. This function restricts a card to be swiped twice under a specified time. Master Card/Code (Default 30191000) Enter 22 0：Disable 1~255 Sec. Duration Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 34: Sensor No/Nc Settings
Exit Button NO/NC Exit Button ”NO” Door Sensor Door Sensor ”NO” NO/NC Door Sensor ”NC” Example： Exit Button as NO，Door Sensor as NO 1+0=1.Enter 1 to perform the mentioned functions. Master Card/Code (Default 30191000) Enter 23 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 35: Access Granted For Master Code
5.2.14 Access Granted for Master Code Command Code 24 Sets valid access authorization to Master Code. Door opens when Master Code is entered. Master Card/Code (Default 30191000) Enter 24 0：NO Value 1：Yes Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 36: Set Date
(00~63), mm stands for month (01~12), dd stands for date (01~31), and ww stands for week (01~07) Master Card/Code (Default 30191000) Enter 25 yy:mm:dd:ww Completed 01for Monday，07 represents Sunday and so on… RAC-920PE/PM Hardware manual HUNDURE... -
Page 37: Set Time
Command Code 26 Sets displayed time on the LCD display. Time format is hh:mm:ss where hh represents hour (00~23), mm for minutes (00~59) and ss for seconds (00~59). Master Card/Code (Default 30191000) Enter 26 hh:mm:ss Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 38: Enable/Disable Keypad
Note: Do not disable keypad when you don’t have the Master Card. Master Code is required to enter command mode, hence disabling the keypads will lock you out of the command prompt. Master Card/Code (Default 30191000) Enter 27 0：NO Value 1：YES Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 39: Save Invalid Card No
5.2.18 Save Invalid Card No. Command Cod 31 Allows user to save invalid card number. To record invalid card numbers, set parameter to 1, to ignore, set to 0. Master Card/Code (Default 30191000) Enter 31 0：NO Value 1： Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 40: Mifare Card Reading Format(For Rac-920Pm Only)
Command Code 80 Allows user to set the reading format of Mifare cards. Set 0 to read serial number, 1 to read Block (Key A) and 2 to read Block (Key B). Master Card/Code (Default 30191000) Enter 80 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 41: Mifare Read Block Settings(For Rac-920Pm Only)
5.2.20 Mifare Read Block Settings(for RAC-920PM only) Command Code 81 Selects the block to read within a Mifare Card (0~63). Master Card/Code (Default 30191000) Enter 81 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 42: Mifare Index Of Card No. (For Rac-920Pm Only)
Command Code 82 Allows user to set the index address of card number to be read (1~15). RAC-920 will retrieve card number starting from the index address that the user has set. Master Card/Code (Default 30191000) Enter 82 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 43: Mifare Length Of Card No.(For Rac-920Pm Only)
If index address is set to 2 and length is 0, RAC-920 will start with the 2 digit and retrieve the rest of the card number. For card number 12345678, the retrieved card number will be 2345678. Master Card/Code (Default 30191000) Enter 83 0：All Value Select 1~10 Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 44: Compress Mifare Card No.(For Rac-920Pm Only)
5.2.23 Compress Mifare Card No.(for RAC-920PM only) Command Code 84 Allows user to compress Mifare Card No. (0: Do not compress; 1: Compress) Master Card/Code (Default 30191000) Enter 84 0：NO Value 1： Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 45: Set Key Value (For Rac-920Pmonly)
Command Code 85 Sets the 12 digit key of a card. Kindly set the key value used by the cardholder. For key value, please refer to the table below: Function Table Input Value Input Value Key Value Value Master Card/Code (Default 30191000) Enter 85 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 46: Read Block Mode
5.2.25 Read Block Mode Command Code 86 Set the read block mode(Support v2.01above).0：Variant Length、 1：Fixed Length(Set digits length in command 83) Master Card/Code (Default 30191000) Enter 86 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 47: Set Master Code
“30191000”. To change, kindly follow the instructions below and input the new 10 digit master code. Whenever a device initialization has been performed, master code will be restored back to it default “30191000”. Master Card/Code (Default 30191000) Enter 90 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 48: Set Disarm Card/Code
“0000”. To change, kindly follow the instructions below and input the new 10 digit or less disarm code/card. Whenever a device initialization has been performed, disarm code will be restored back to it default “0000”. Master Card/Code (Default 30191000) Enter 91 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 49: Set Duress Card(Code)
To change, kindly follow the instructions below and input the new 10 digit or less duress code/card. Whenever a device initialization has been performed, duress code will be restored back to default “1190”. Master Card/Code (Default 30191000) Enter 92 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 50: Set Memory Mode
Under compressed and shared memory mode, card number should be exactly 10 digits. Successive addition and deletion of card number can only be performed under shared memory mode. This function is not applicable for compressed and standard mode. RAC-920PE/PM Hardware manual HUNDURE... -
Page 51: Door Open Mode
Command Code 94 Allows user to change the access mode--- swipe card only, swipe card or key in card No., swipe card or key in card No.+password. This function is only applicable when RAC-920 is used as an access controller. Master Card/Code (Default 30191000) Enter 94 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 52: Valid Card Mode
Random Mode2 the cards will become blacklist and will activate alarm when you swiped card. If you want to get blacklist records,please select “save” of command31 Master Card/Code (Default 30191000) Enter 95 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 53: Slave Reader Setting
Disable Anti Example： Slave reader with T2 interface,request check password and enable Anti-password function. 2+1+4=7,Input 7 and then setting completed. Master Card/Code (Default 30191000) Enter 96 Value Completed The funication must to setup the slave reader. RAC-920PE/PM Hardware manual HUNDURE... -
Page 54: Relay Mode
5.2.33 Relay Mode Command Code 97 Allows user to change the relaty mode.，0：Door Relay,1：Bell。 Master Card/Code (Default 30191000) Enter 97 Value Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 55: System Initialization
On the initial installation, set the device’s parameter to its default settings before deployment. If the following problem arises: Abnormal operation User wants to clear all card numbers and passwords Master Card/Code (Default 30191000) Enter 99 Enter 99 Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 56: Chapter 6 Testing
3. Green LED blinks. 4. Press Exit Button to activate Door Relay,and Electronic Lock activates for 4 sec. 5. Reader beeps twice short beeps for valid card and three long beeps for invalid card. 6. Tes Completed RAC-920PE/PM Hardware manual HUNDURE... -
Page 57: Chapter 7 Troubleshoot
2. Make sure that the card swiped has access authorization and is a valid card. 3. Check whether the electronic lock is properly installed. 4. Login to command mode and check the unlock door time settings via command code RAC-920PE/PM Hardware manual HUNDURE... -
Page 58: Appendix
Compare Valid Address (Support V2.01above) Completed Compare Valid address=(Compare Valid code ◣ Index-1)X16+Compare valid code length 0=Select All ◣ Only support standard card mode from ◣ Hundure [MASTER]↵ [20]↵ [Summation of the value Advanced Settings 1 RAC-920PE/PM Hardware manual HUNDURE... - Page 59 ：Hour 00~23 ◣ ：Minute 00~59 ◣ ◣ ：Second 00~59 [MASTER]↵ [27]↵ [Value]↵ Completed Enable/Disable Keypad [0]Disable ◣ [1]Enable ◣ [MASTER]↵ [31]↵ [Value]↵ Completed Save Invalid Card No. record (Default is 0 which [0] Don’t Save ◣ RAC-920PE/PM Hardware manual HUNDURE...
- Page 60 Door Open Mode (For Access Control only) [0] Swipe Card only ◣ [1] Swipe Card or Input Code ◣ [2] Swipe Card or Input Code + Password ◣ [MASTER]↵ [95] ↵ [Value]↵ Completed Valid Card Mode RAC-920PE/PM Hardware manual HUNDURE...
- Page 61 [+1] Check password,0:Do not need check ◣ password. [+2] T2 interface,0:T1 interface ◣ [+4] Enable anti,0:Disable Anti ◣ [MASTER]↵ [97] ↵ [Value]↵ Completed Relay Mode [0] Door Relay ◣ [1] Bell ◣ [MASTER] ↵ [99] ↵[99]↵ Completed Initialize RAC-920PE/PM Hardware manual HUNDURE...
-
Page 62: One Year Limited Warranty
In no event shall manufacturer’s liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential, damages resulting from the use of the product, its accompanying software, or it’s documentation. Hundure makes no warranty or representation expressed, implied, or statutory, with respect to its products, contents of use of this documentation and all accompanying software, and specially disclaims its quality, performance, merchantability or fitness for any particular purpose.
