Summary of Contents for ILLUMINARC ILLUMIPANEL 40 IP OPTIC RGB

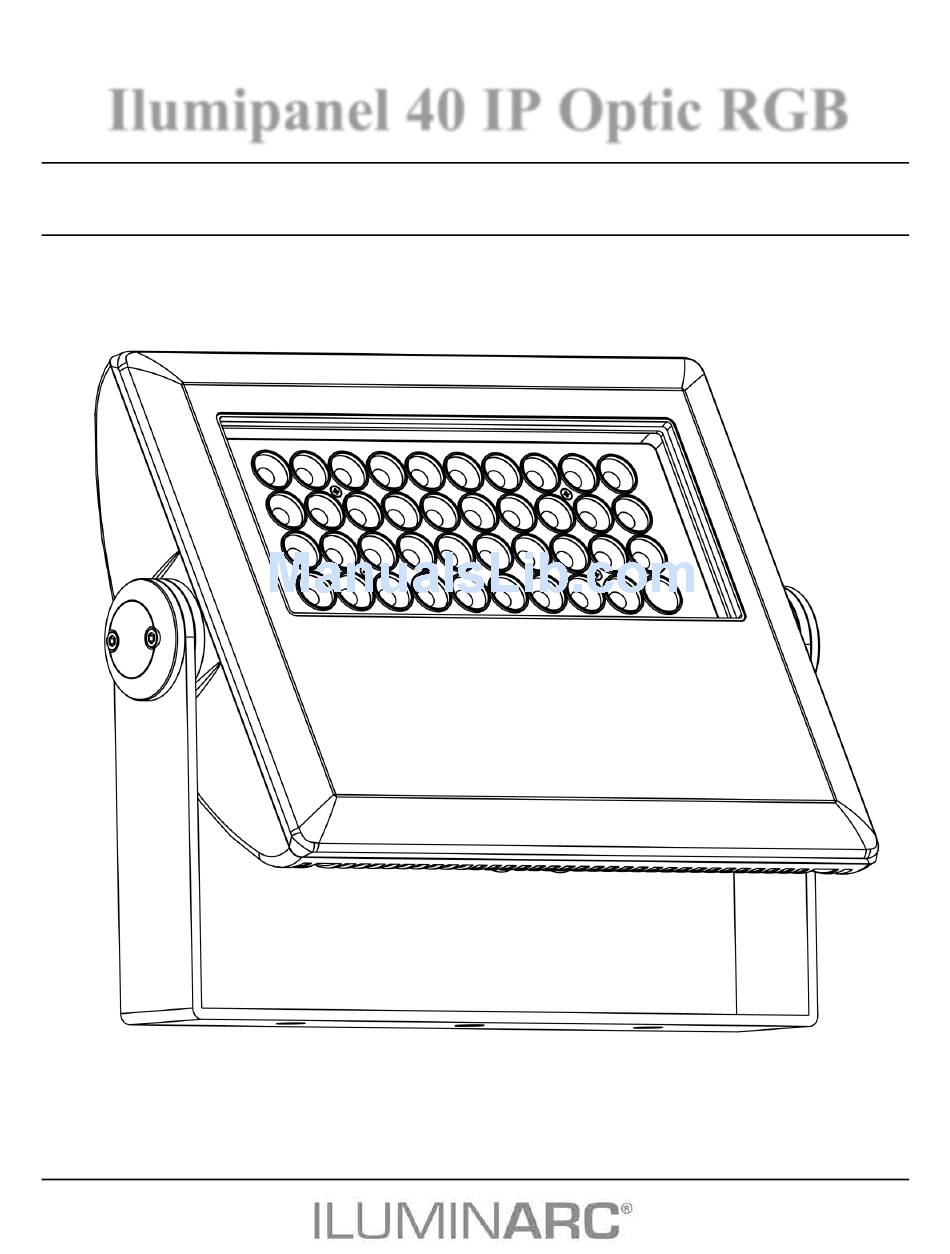

  • Page 1 Ilumipanel 40 IP Optic RGB User Manual...
  • Page 2 Edition Notes Edition Notes The Ilumipanel 40 IP Optic RGB User Manual Rev. 3 covers the description, safety precautions, installation, programming, operation, and maintenance of the Ilumipanel 40 IP ® Optic RGB. ILUMINARC released this edition of the Ilumipanel 40 IP Optic RGB User Manual in May 2015.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Introduction ....................1 What Is In The Box ....................... 1 Unpacking Instructions ....................1 Claims ..........................1 Text Conventions ......................1 Safety Notes ......................... 2 Personal Safety ........................2 Mounting and Installation .....................2 Power and Wiring ........................2 Operation ..........................2 2.
  • Page 4 Table of Contents 4. Operation ..................... 11 ILUMICODE ADDRESSER ..................11 Ilumicode Panel Description ....................11 Control Options ......................11 Programming ......................11 DMX Personality ........................ 11 DMX Starting Address ....................... 11 Static Colors ........................12 Dimmer ..........................12 Color ..........................12 Whites Setting ........................
  • Page 5: Introduction

    Introduction 1. Introduction This symbol What Is In The Box indicates critical installation, · Ilumipanel 40 IP Optic RGB configuration, or operation · Power Input Cable (bare-ended) information. Failure to comply with this · Data Input/Output Cable (bare-ended) information can make the product not work, damage ·...
  • Page 6: Safety Notes

    Introduction Safety Notes Please read all the following Safety Notes carefully because they include important information There are no on how to install, use, and maintain this product safely. user-serviceable parts inside this Personal Safety product. Any reference to servicing you may find in ·...
  • Page 7: Product Description

    Product Description 2. Product Description The Ilumipanel 40 IP Optic RGB is a flat-panel wash product that may be used to light a variety of both indoor and outdoor applications. The Ilumipanel 40 IP Optic RGB consists of the main housing and a steel yoke. The DMX input and output is located on rear of the product near the bottom.
  • Page 8: Product Overview

    Product Description Product Overview GORE® Valve Power In Data In/Out L. Side View Rear View 3 W LEDs Adjustment Knob Front View R. Side View Ilumipanel 40 IP Optic RGB User Manual...
  • Page 9: Product Dimensions

    Product Description Product Dimensions Ilumipanel 40 IP Optic RGB User Manual...
  • Page 10: Installation

    Installation 3. Installation Mounting Before mounting this product, read and follow the recommendations indicated in the Safety Notes. Orientation Always mount this product in a safe position, making sure there is adequate room for ventilation, configuration, and maintenance. Installation Make sure to The Ilumipanel 40 IP Optic RGB has 3 mounting points on the mounting bracket to mount this product secure it to almost any surface provided that it can support the product’s weight.
  • Page 11: Ac Power

    Installation Always connect AC Power the Ilumipanel 40 IP Optic RGB to The Ilumipanel 40 IP Optic RGB has an auto-ranging power supply that works with an input a protected circuit with an voltage range of 100~240 VAC, 50/60 Hz. appropriate electrical ground to avoid the risk of Make sure that you are connecting this product to the proper voltage per the specifications in...
  • Page 12: Dmx Linking

    Installation The Ilumipanel DMX Linking 40 IP Optic RGB must be linked using You may link the Ilumipanel 40 IP Optic RGB to a DMX controller using a standard DMX serial DMX cable in a daisy connection. If using other DMX products compatible with the Ilumipanel 40 IP Optic RGB, you chain (serial) fashion.
  • Page 13: Controllers

    Installation Controllers If you have not The Ilumipanel 40 IP Optic RGB can operate with a standard DMX controller or the configured the ILUMICODE ADDRESSER. The sections below provide information on how to connect these DMX starting products to the corresponding controllers. The instructions to operate these products with each of address and DMX mode for each the above controllers are in the...
  • Page 14: Ilumicode Addresser

    Installation ILUMICODE ADDRESSER To assign The Ilumipanel 40 IP Optic RGB uses the ILUMICODE ADDRESSER (“Ilumicode”) individual DMX addresses to for configuration purposes. The diagram below shows how to connect the Ilumicode to each product, this product. This connection will control multiple products at the same time, all having you must connect the the same DMX address.
  • Page 15: Operation

    Operation 4. Operation ILUMICODE ADDRESSER The Ilumipanel 40 IP Optic RGB needs an external controller, the ILUMICODE ADDRESSER (“Ilumicode”), to change its configuration. Ilumicode Panel Description Button Function Exits from the current menu or function. <MENU> Enables the currently displayed menu or sets the <ENTER>...
  • Page 16: Static Colors

    Operation Static Colors Go to STATIC. Select a color or effect (Red, Green, Blue, or Strobe). Select a color value (000~255) or a strobe frequency (0~20). Dimmer This setting gives the user four different options to simulate the dimming curve of an incandescent lighting product.
  • Page 17: Menu Map

    Operation Menu Map Main Level Programming Levels Description 001~512 Sets the DMX starting address ARC1 3-channel: RGB control ARC1+D 4-channel: RGB control + dimmer PERSON 7-channel: RGB control, dimmer, color macro, strobe, ARC FULL dimmer speed SOLID 1-channel: dimmer WHITE (1~11) Determines the white balance for the color macros CALIB GREN...
  • Page 18: Dmx Values

    Operation DMX Values ARC FULL Channel Function Value Percent/Setting 000 ó 255 0~100% Dimmer 000 ó 255 0~100% 000 ó 255 0~100% Green 000 ó 255 0~100% Blue 000 ó 010 No Function 011 ó 030 R: 100% G: 0~100% B: 0 031 ó...
  • Page 19: Technical Information

    Technical Information 5. Technical Information Maintenance To maintain optimum performance and minimize wear, clean the products frequently. Usage and environment are contributing factors in determining the cleaning frequency. As a general guideline, products should be cleaned at least twice a month. Dust build-up reduces light output, performance, and can cause overheating.
  • Page 20: Troubleshooting

    Technical Information Troubleshooting Symptom Cause(s) Action(s) Excessive circuit load Check total load placed on the electrical Circuit breaker/fuse keeps circuit tripping/blowing Short circuit along the power wires Check for a short in the electrical wiring No power Check for power on power outlet Product does not power up Loose or damaged power cord Check power cord...
  • Page 21: Photometrics

    Technical Information Photometrics Filename: Ilumipanel 40 IP RGB Optic 30 100% RGB Manufacturer: ILUMINARC Luminaire: ILUMIPANEL 40 IP Optic 30 RGB Lamp: 14R+14G+12B Lamp Cat: 01620521 Lamp Output: 1 Lamp(s), rated Lumens/Lamp: 4,000 Max Candela: 15,872.6 at Horizontal: 0°, Vertical: 1° Input Wattage: 117.8 Luminous Opening:...
  • Page 22: Led Disclaimer

    Technical Information LED Disclaimer LED Life ® ILUMINARC rates LED lifetime based on lumen depreciation of 70% of the original output, with data provided by the manufacturer of the LED. Data from the manufacturer of the LED are not independently verified or measured by ®...
  • Page 23: Returns

    Technical Information ILUMINARC ® Returns reserves the right to use its You must send the merchandise prepaid, in the original box, and with its original packing and own discretion to repair or ® accessories. ILUMINARC will not issue call tags. replace returned product(s).
  • Page 24: Technical Specifications

    Technical Information Technical Specifications Dimensions and Length Width Height Weight Weight 3.5 in (89 mm) 14.6 in (370 mm) 12.1 in (307 mm) 18.25 lbs (8.28 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection Switching (internal)
