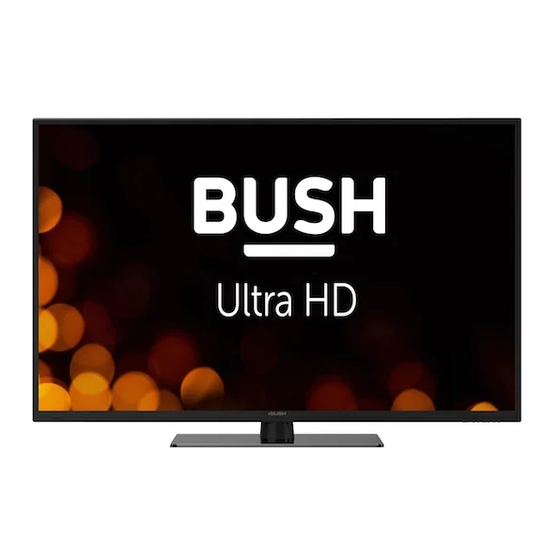

58 inch uhd digital led tv

Advertisement

58" UHD Digital LED TV
Installation & Operating Instructions
339/8506
- Please keep for future reference
LE-58GCL-B
HIGH-DEFINITION MULTIMEDIA INTERFACE
Important
- Please read these instructions fully before installing or operating
These instructions contain important information which will help you get the best from your
television and ensure safe and correct installation and operation.
For any help concerning set up and use of your TV please call the
Customer Helpline: 0345 604 0105
Lines open: 9am - 8pm Monday to Saturday and 10am - 4pm Sunday
Issue 1 - 10/05/13
LE-28GBR-A HD 黑色 (英国 SY13096)_IM V01.indd 1
2013-5-3 11:25:42

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE-58GCL-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Bush LE-58GCL-B

  • Page 1 58" UHD Digital LED TV Installation & Operating Instructions 339/8506 - Please keep for future reference LE-58GCL-B HIGH-DEFINITION MULTIMEDIA INTERFACE Important - Please read these instructions fully before installing or operating These instructions contain important information which will help you get the best from your television and ensure safe and correct installation and operation.
  • Page 2 LE-28GBR-A HD 黑色 (英国 SY13096)_IM V01.indd 2 2013-5-3 11:25:43...
  • Page 3: Table Of Contents

    Contents Safety Information 2 - 3 Time Menu 32-34 Network Getting Started 4 - 13 Setting Menu 34-36 Support TV Features Entertainment Features 37 - 41 Accessories included Using The Usb Features Base Stand Assembly Instruction Viewing Movies Viewing remote control - TV Listening to music TV - Control buttons (Top side)...
  • Page 4: Safety Information

    Safety Information Important - Please read these instructions fully before installing or operating within an equilateral triangle, is intended to CAUTION alert the user to the presence of uninsulated RISK OF ELECTRIC SHOCK “dangerous voltage” within the product’s DO NOT OPEN to constitute a risk of electric shock of persons.
  • Page 5: Lcd Screen

    Safety Information Important - Please read these instructions fully before installing or operating Heat sources and Flames Replacement parts ‡ Do not expose the TV to direct sunlight or other heat When replacement parts are required, make sure that sources. the service technician has used replacement parts, ‡...
  • Page 6: Getting Started

    Getting Started The Argos Technical Helpline is here to help Technical experts are available 7 days a week ‡ Simple help and advice on setting up your digital equipment (image). ‡ Guidance on connecting other devices to your television such as a DVD player, Sky, home cinema system or a games console.
  • Page 7: Support

    Getting Started TV - Features Accessories included ‡ Remote controlled colour LCD TV. ‡ TV ‡ Fully integrated digital TV (DVB-T). ‡ HDMI connectors for digital video and audio. This connection is also designed to accept high de nition signals. ‡...
  • Page 8: Base Stand Assembly Instruction

    Getting Started Installing / Removing the Base Stand Base Stand Assembly Instruction WALL MOUNTING INSTALLATION GUIDELINES 1. Place the TV with the display side down on a flat surface.Use a cloth to protect. Locate the This television can be wall mounted as follows: bottom at the stand.
  • Page 9: Viewing Remote Control - Tv

    Getting Started Viewing remote control - TV : Switch the TV between on and standby mode. : Mute and restore your TV sound. 3. 0-9 Number Buttons: Use to select a programme. 4. CH.LIST: Display programme list (DTV / ATV modes).
  • Page 10 Getting Started Viewing remote control - TV 24. SIZE:Press to enlarge the picture on the TV Teletext (DTV / AV / SCART modes). 25. LANG:Select the DTV audio language (DTV mode). Press to switch between different audio languages (only applicable when the broadcast supports this function).
  • Page 11: Tv - Control Buttons

    Getting Started TV - Control buttons 1. VOL- button Decreases the volume. 2. VOL+ button Increases the volume. 3. CH- button Moves down a channel. 4. CH+ button Moves up a channel. 5. MENU button Displays the OSD (on screen display) menu. 6.
  • Page 12: Remote Control - Inserting Batteries

    Getting Started Remote control - Inserting batteries Remove the battery cover on the back of the remote control, gently push down and pull backwards at the same time as shown. Insert two AAA/R3 or equivalent type batteries. Ensure the batteries are inserted the correct AAA/R3 X2 way and replace the battery cover.
  • Page 13: Operation Using Tv Control Buttons

    Getting Started Operation using TV control buttons Operation using remote control The VOL+/VOL- buttons will function as volume The remote control is designed to control all the up/down as default. Even if you set other functions of the model you selected. functions for these buttons, the VOL+/VOL- buttons will return to volume control after a short Volume Setting...
  • Page 14: Connections

    Connections Left side connections explained 1. OPTICAL To connect to the audio socket on the digital/ standard 5.1 audio system. 2. COAXIAL To connect to the audio socket on the digital/ standard 5.1 audio system. 3. HDMI Input Connects a device that has an HDMI socket. The TV can display High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player.
  • Page 15: Left Bottom Connections Explained

    Connections Left bottom connections explained 9. LAN Network connection port. 10. HDMI Input Connects a device that has an HDMI socket. The TV can display High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket.
  • Page 16: Hdmi Connections

    Connections HDMI Connections HDMI lets you enjoy high definition digital images and high quality sound by connecting the TV to external devices such as DVD players, set top boxes or gaming equipment. Power off both the TV and the device before making any connections.
  • Page 17: First Time Setup

    First time setup 1. Connect one end of an RF coaxial Language is preset to English and cable (not supplied) to the aerial cannot be changed. socket in your wall. Connect the 7. Next press the ▼ button on the other end of the cable to the RF (75) remote control to select Country.
  • Page 18: How To Use Your Tv

    How to use your TV SELECTING INPUT SOURCE USING THE ELECTRONIC PROGRAMME GUIDE (EPG) You can connect multiple devices to your TV to improve your watching and Digital TV (DTV) channels only listening pleasure. Your TV has an Electronic Programme 1.
  • Page 19 How to use your TV 3. You can also look through all of the programmes available over the next Reminder Setting 7 days by pressing the X button to enter the programmes listings. 10 ITV3 Use the WX▲▼ buttons to scroll Minute 45 through the programmes, a brief Hour 10...
  • Page 20: Viewing Teletext

    How to use your TV VIEWING TELETEXT 2. The page counter will search for your page you wish to view. Digital TV (DTV) channels only When the page is found it will automatically be displayed. IMPORTANT: Before you can view 3.
  • Page 21: Using The Time Shift Function

    How to use your TV USING THE TIME SHIFT 4. Press the ■ button to stop the Time Shift recording and return to the live FUNCTION TV broadcast. Digital (DTV) channels only Alternatively: You can press the ● (red This function lets you quickly record the dot) button on the remote control to TV programme you are watching if you display the PVR Time Shift progress bar...
  • Page 22: Recording Dtv Programmes

    How to use your TV RECORDING DTV Slow: Select to view the recording in slow motion. Press the OK button PROGRAMMES multiple times choose between 2 / 4 / 8 / 16 / 32 playback speeds. Digital (DTV) channels only 8.
  • Page 23: Using The Programme Timer

    How to use your TV recording progress bar again, press the ● button on the remote control. Recorder and you want to stop the recording, simply press the „ button. 10 ITV3 Start Time Minute 0 Hour 10 Month Sep Date 21 End Time Minute 0...
  • Page 24 How to use your TV Timer was saved Successfully (2014) 08/19 19:30 E4+1 5. The Schedule List will now appear at the bottom of the screen showing all of your scheduled recordings. Schedule List 17:33 19 Aug Edit Sort by Time/Channel Name Delete Time Date...
  • Page 25: Watching Recorded Programmes

    How to use your TV WATCHING RECORDED PROGRAMMES You can play a recorded programme from the recorded programme list or Movie Music Photo File from the USB storage device. Device Found:0 Prompt 3. Use the ▲▼ WX buttons to select The USB founded, Open it now? _MSTPVR button to open.
  • Page 26 How to use your TV Press the EXIT button to return to 20_ Factual_Wildlife_on_one_20140919_130000.ts the previous menus. Repeat: ALL 00:00:01 / 00:29:58 Play Previous Next Pause Stop Repeat TimePlay Enlarge Shirnk Playlist Info Press “Menu” to Show/Hide Function Menu List of functions Play: Press to play the programme.
  • Page 27: Tv Systems Management

    TV systems management 4. Use the WX buttons to change the PICTURE MENU selected sub menu. This menu allows you to select the best 5. Press the MENU button on the preset picture mode or change them remote control to return to the main yourself.
  • Page 28: Sound Menu

    TV systems management 4. Use the WX buttons to change the SOUND MENU selected sub menu. This menu allows you to select the best 5. After you have made all of the preset sound mode or change them changes, press the EXIT button yourself.
  • Page 29: Channel Menu

    TV systems management broadcaster. Use the WX buttons to Note: The menu shown in the diagram choose between On or Off. has been extended to show all available options. You will need to use the ▲▼ Set to Off: You will receive normal buttons to scroll thought the menu to broadcast sound from the TV's view all of the options.
  • Page 30 TV systems management 3. Press the ▼ button and choose the frequencies until you find the country you are tuning the TV in program you want. using the WX buttons. 6. After the search, press the T button 4. Press the ▼ button and select Auto to select FINE-TUNE you can now Tuning and press the X or OK button do small adjustment to improve the...
  • Page 31: Channel Menu

    TV systems management Channel Edit Signal Information Allows you to edit TV channel Allows you to view the signal strength information in the Channel List. of the selected channel TV signals. 1. Press the MENU button to open the Use the ▼ button to select Signal CHANNEL menu.
  • Page 32 TV systems management a malfunction. drive. You can interact with the list using the coloured buttons on the top of your Fitting the Common Access Module remote control. Note: This feature is not available in all Note: If there is no USB storage device countries.
  • Page 33: Lock Menu

    TV systems management 2. Use the ▲▼ buttons to select and the selected items sub menu may appear. Use the ▲▼ WX and Software Update (OAD). Press the OK button to select either On or Off. OK buttons to change the settings. 3.
  • Page 34: Time Menu

    TV systems management may appear. Use the ▲▼ WX and Note: 0000 is the master password and can always be used. OK buttons to change the settings. 5. Press the MENU button on the Block Program remote control to return to the Use the ▼...
  • Page 35: Auto Standby

    TV systems management enter the Clock submenu. / HDMI 1 / HDMI 2 / HDMI 3 / HDMI4 /Composite /AV. Use the ▲▼ buttons to navigate through the menu. Press ▼ the button and select a channel for TV or Radio using the WX buttons. Set the Year / Month / Day / Minute using the WX buttons then press the Press ▼...
  • Page 36: Network

    TV systems management Use the ▼ button to select Time Zone Network Info then press the OK button. Press either the X button or the The Time zone submenu will now open. OK button to view all the relevant Use the ▲▼ WX buttons to select information concerning your network the local time zone then press the OK setup.
  • Page 37: Hearing Impaired

    TV systems management Press the T button to select the Audio 1. Press the MENU button on the Language. Use the WX buttons to remote control. select either Primary or Secondary then 2. Press the ▲▼ WX buttons to select press the T button.
  • Page 38 TV systems management Format Start: Use this to reformat the USB drive, press the OK button to start. IMPORTANT: If you reformat the USB drive you will loose all of the data on it. Always backup the drive before reformatting it. Speed Check: Use this feature to check the speed of your USB drive by pressing the OK button.
  • Page 39: Entertainment Features

    Entertainment Features USING THE USB FEATURES programmes the transfer rate of the storage device must not be less than 1. Always switch the TV off before 5MB/s, otherwise the picture and sound attaching a USB storage device to of the programme will be affected and your TV.
  • Page 40: Viewing Movies

    Entertainment Features Viewing Movies different functions available on the function bar, press the OK button to Use the WX buttons to select Movie select the function. folder then press the OK button. List of functions Repeat: ALL 00:00:01 / 00:29:58 Play Previous Next...
  • Page 41: Listening To Music

    Entertainment Features Use the WX buttons to select the Listening to music different functions available on the Use the WX buttons to select Music function bar, press the OK button to folder then press the OK button. select the function. List of functions Repeat: ALL 00:00:05 / 00:04:11...
  • Page 42: Viewing Photos

    Entertainment Features Viewing photos different functions available on the function bar, press the OK button to Use the WX buttons to select Photo select the function. folder then press the OK button. List of functions Play 90º 90º Previous Next Pause Stop Rotate -...
  • Page 43: Files

    Entertainment Features Files Use the WX buttons to select File folder then press the OK button. Movie Music Photo File Device Found:0 Use the WX buttons to select the USB device you want to look in (if more than one device is connected to your TV) then press the OK button.
  • Page 44: Other Information

    Other Information Specifications TV Broadcasting PAL, B/G, D/K, I, SECAM, L/L’ Receiving Channels VHF (BAND I/III) - UHF (BAND U) - HYPERBAND Number of Preset Channels Channel Indicator On Screen Display RF Aerial Input 75 Ohm (unbalanced) Operating Voltage AC 100-240V~ 50/60Hz Audio Nicam Audio Output Power (WRMS.) (10% THD)
  • Page 45: Plug Replacement - Uk And Ireland Only

    Other Information Plug replacement - UK and Ireland only Should you need to replace the plug; the wires in the power cable are coloured in the following way: Blue – Neutral ‘N’ Brown – Live ‘L’ As the colours of the wires in the power cable Connect may not correspond with the coloured markings brown lead...
  • Page 46: Trouble Shooting

    Product Support Trouble shooting Image persistence - ghosting Remote control - does not operate Please note that ghosting may occur while displaying a Your TV no longer responds to the remote control. The persistent image (still or paused image). LCD TVs’ image batteries may be exhausted, if so you can still use the persistence may disappear after a short time.
  • Page 47: Disposal Information

    Product Support Supported formats Format Media File Extension Supported (Maximum resolution/Bit rate etc.) Video Audio MPEG Layer MPEG1 1/2/3 .mpg/.dat/.vob Movie MPEG2 MPEG2 Sample Rate: 8K ~ 48KHz Music MPEG 1/2 Sample Rate: 8K ~ 48KHz, .mp3 Layer 1/2/3 MP3) Bit Rate: 64K ~ 320Kbps W x H = 8192 x 8192 up to 77 Mega-pixel Baseline JPEG...
  • Page 48 PRODUCT GUARANTEE LE-28GBR-A HD 黑色 (英国 SY13096)_IM V01.indd 40 2013-5-3 11:26:36...
  • Page 49 LE-28GBR-A HD 黑色 (英国 SY13096)_IM V01.indd 41 2013-5-3 11:26:36...
  • Page 50 LE-28GBR-A HD 黑色 (英国 SY13096)_IM V01.indd 42 2013-5-3 11:26:36...
