Summary of Contents for Contemporary BASRT-B
-

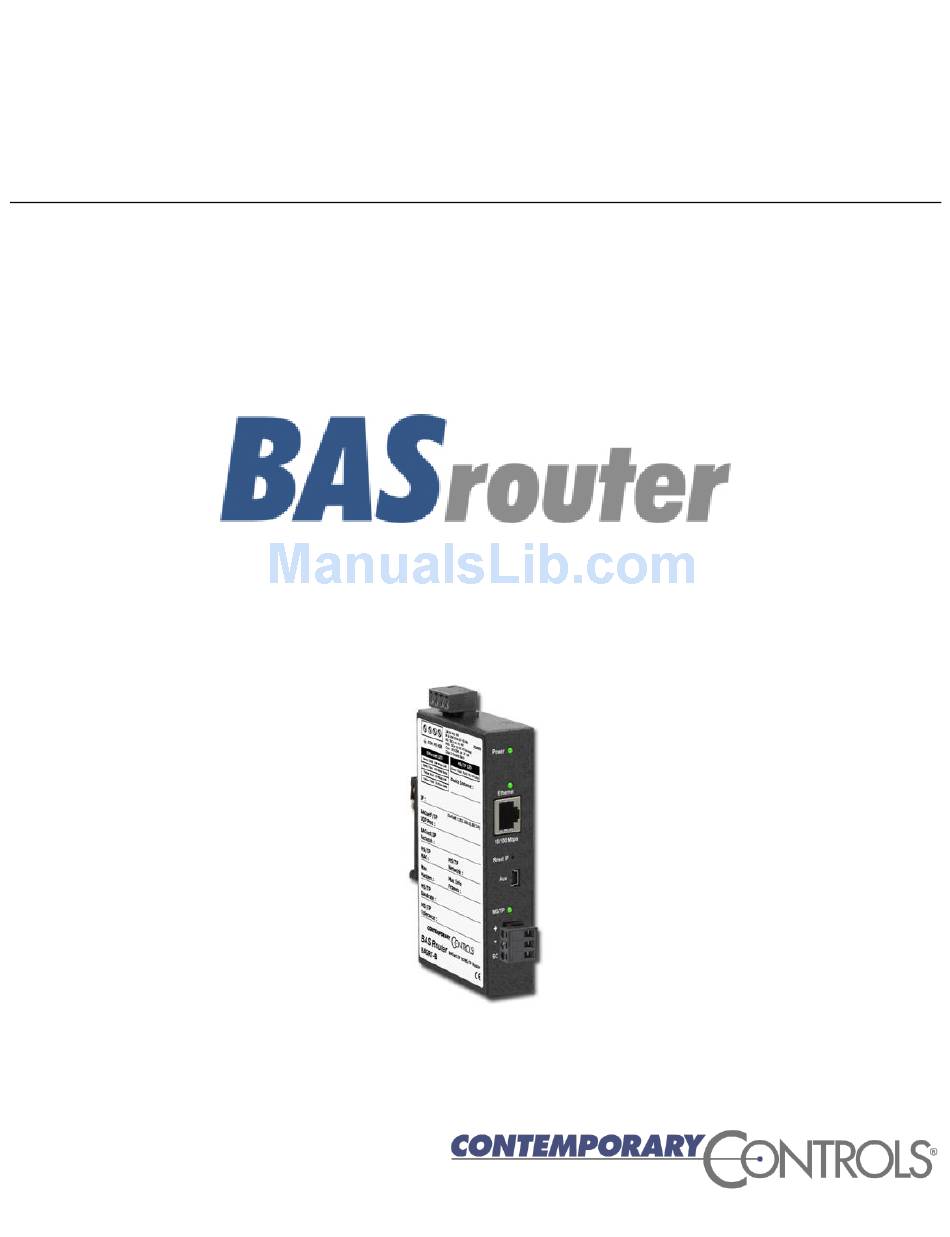

Page 1: User Manual
BASRT-B BACnet® Multi-Network Router User Manual # UM-BASRTB00-AA1... - Page 2 Copyright © Copyright 2017, by Contemporary Control Systems, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic,...
-
Page 3: Table Of Contents
Contents Introduction ....................... 5 Specifications ......................6 Electrical ......................6 Environmental ..................... 6 Mounting ......................6 Functional ......................6 Regulatory Compliance ..................6 Electromagnetic Compatibility ................6 Connectors ......................7 Mechanical ......................7 Power ........................8 POWER SUPPLY PRECAUTIONS ..............8 Limited Power Sources .................. - Page 4 IP Assigned By (Default Value = FIXED) ........... 21 IP Address (Default Value = 192.168.92.68) ..........21 IP Subnet (Default Value = 24) ..............21 IP Gateway (Default Value = 192.168.92.1) ..........21 MS/TP Parameters .................... 22 MS/TP MAC (Default Value = 00) ............. 22 MS/TP Network (Default Value = 2001) ...........
-
Page 5: Introduction

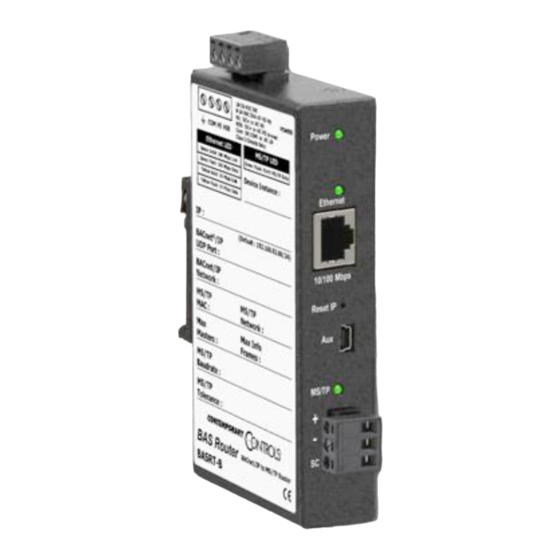

BACnet internetwork. The router is configurable via its internal webpage. The BASRT-B comes in a metal case, is DIN-rail mounted and is powered from a 24 VAC/VDC source. It has one optically isolated MS/TP port and one 10/100 Mbps Ethernet Auto-MDIX port. -
Page 6: Specifications
2 Specifications Electrical (Class 2 Circuits Only) INPUT Voltage (±10%): 24 V 24 V Power: 4 VA Frequency: 47–63 Hz Environmental Operating temperature: 0°C to 60°C Storage temperature: –40°C to +85°C Relative humidity: 10–95%, non-condensing Mounting TS-35 DIN-rail Functional Ethernet MS/TP Physical Layer: 10BASE-T... -
Page 7: Connectors
Connectors 3-pin (MS/TP) Pin Assignments (Also displayed on product label) Figure 1 — 3-pin Connector RJ-45 (MDI Ethernet) Pin Assignments 1 TD + 3 RD + 2 TD – 6 RD – (All other pins are unused.) Figure 2 — RJ-45 Connector USB Mini B Connector (Aux) This connector is only used for firmware upgrades. -
Page 8: Power
3 Power The BASRT-B requires 24 VAC or 24 VDC (see Figure 6) while drawing no more than 4 VA of power. The recommended conductor size is 16–18 AWG. COM is directly connected to zero volts and the chassis is DC isolated from zero volts. Input connections are reverse-polarity protected. - Page 9 WARNING: Devices powered from a common AC source could be damaged if a mix of half- wave and full-wave rectified devices exist. If you are not sure of the type of rectifier used by another device, do not share the AC source with it. Figure 7 —...
-
Page 10: Limited Power Sources
For MS/TP devices that use a power source separate from the BASRT-B, see Figure 9 for proper 2-wire bus connections and Figure 10 for proper 3-wire bus connections. Figure 9 — 2-wire MS/TP Bus with Separate Power Sources Figure 10 — 3-wire MS/TP Bus with Separate Power Sources... -
Page 11: Leds
4 LEDs Power glows green if power supplied to the unit is proper Ethernet glows solid for a valid link (green for 100 Mbps or yellow for 10 Mbps) and flashes to show activity MS/TP flashes green when receiving valid MS/TP traffic UM-BASRTB00-AA1... -
Page 12: Operation
5 Operation MS/TP Port The MS/TP port uses an optically isolated EIA-485 transceiver connected to a 3-pin removable connector (Figure 1). The transceiver + and – lines tie to + and – pins of the connector. The SC pin ties to the transceiver ground. You MUST connect the SC pin to the MS/TP segment signal common —... -
Page 13: Eia-485 Bias And Termination Jumpers
120 Ω — consistent with the BACnet standard. If the BASRT-B is not installed at the end of a segment, remove all the jumpers and install 120 Ω at the far end of the bus. -
Page 14: Webpage Configuration
IP address of 192.168.92.68 and a Class C subnet mask of 255.255.255.0 (/24). Figure 12 shows the setup for initial network configuration. Using BASRT-B, a computer for configuration, and a connection to the MS/TP network. - Page 15 To set your computer’s IP static address in Windows 7 or Windows 8.x or Windows 10: 1. Type network and sharing into the search box in the Start Menu 2. Select Network and Sharing Center (which could also be found in Control Panel) 3.
- Page 16 4. Right-click on your network adapter and chose Properties 5. In the Local Area Connection Properties window highlight Internet Protocol Version 4 (TCP/IPv4) then click the Properties button. UM-BASRTB00-AA1...
- Page 17 6. Your computer was most likely set for DHCP (Obtain an IP address automatically) select the radio button Use the following IP address and enter in 192.168.92.69 (for example) in IP address. Click on Subnet mask and 255.255.255.0 will be entered for you automatically. For Default gateway enter 192.168.92.1.
- Page 18 1. Click Start Menu 2. Select Network Places 3. Click on View network connections 4. Open Local Area Connection 5. Choose Properties 6. Double-click to open Internet Protocol (TCP/IP) settings 7. Select Use the following IP address Figure 13 — Steps for Changing the IP Address of the PC Used for Setup UM-BASRTB00-AA1...
- Page 19 After entering the router’s IP address into your browser’s address field, you will see the Authentication Screen of Figure 14. The default value of both the User Name and Password is admin Figure 14 — Router Authentication Screen After successfully logging in, the Router Configuration Page initially appears with the default values as shown below.
-
Page 20: Device Parameters
1–65534 (0 and 65535 are reserved). If the BACnet Ethernet network value is left at its default value of 0, the BACnet Ethernet function within the BASRT-B will be disabled. Also, to prevent erratic traffic due to message loops, an IP subnet UM-BASRTB00-AA1... -
Page 21: Bacnet/Ip Parameters
IP Address (Default Value = 192.168.92.68) The IP address of the router can be 1.0.0.1–223.255.255.254. A private address is usually assigned to the BASRT-B. IP Subnet (Default Value = 24) This value (0–31 in the “slash” notation) is the number of bits with a “1” in the mask. The default value of 24 corresponds to 255.255.255.0 in the dotted decimal format. -
Page 22: Ms/Tp Parameters
MAC address of any master, and all masters use sequential MAC addresses starting with 1 Since many BACnet devices do not allow this parameter to be changed, leave the BASRT-B at the default value. Max Info Frames (Default Value = 100) This is the maximum number of messages that can be routed onto the MS/TP network by the router per token pass. -
Page 23: Firmware Updates
7 Firmware Updates Firmware upgrades are not necessary. If a firmware upgrade is required, please contact our technical support for more information at our website and click on the “Support” tab. https://www.ccontrols.com/basautomation/basrouter.php UM-BASRTB00-AA1... -
Page 24: Advanced Features
To deal with subnets, or routed IP networks, a BACnet/IP Broadcast Management Device (BBMD) must be used. You may deploy the BASRT-B in a situation in which BACnet communication is confined to just one IP subnet. In such a case, advanced configuration is normally not needed. But if you are dealing with more than one IP subnet, you will need the BBMD functionality offered in the advanced configuration screen shown in Figure 16. - Page 25 (FDR), the screen shown in Figure 18 appears (unless you have not checked the BBMD Enable box). This screen will report all devices that have registered with the BASRT-B as Figure 18 — Foreign Device Foreign Devices and how long they will remain registered unless Registrations a re-registration occurs.
-
Page 26: Status Screen
Status Screen The Status Screen depicted in Figure 19 reports the traffic of the various protocols handled by the BASRT-B including the number of messages transmitted and received for each network. Packet counts only increment for protocols in use. “BIP 1” is the primary BACnet/IP port and “BIP 2”... -
Page 27: Security Screen
Password must be at least 5 and no more than 10 characters. There is no restriction on character types. You are encouraged to change these login values to prevent Figure 20 — Security Screen unauthorized access to the BASRT-B. UM-BASRTB00-AA1... -
Page 28: Warranty
9 Warranty Contemporary Controls (CC) warrants this product to the original purchaser for two years from the product shipping date. Product returned to CC for repair is warranted for one year from the date the repaired product is shipped back to the purchaser or for the remainder of the original warranty period, whichever is longer. -
Page 29: Returning Products For Repair
10 Returning Products for Repair Return the product to the location where it was purchased by following the instructions at the URL below: www.ccontrols.com/rma.htm UM-BASRTB00-AA1... -
Page 30: Declaration Of Conformity
11 Declaration of Conformity Information about the regulatory compliance of this product can be found at the URL below: www.ccontrols.com/compliance.htm United States China United Kingdom Germany Contemporary Control Contemporary Controls Contemporary Controls Ltd Contemporary Controls GmbH Systems, Inc. (Suzhou) Co. Ltd 14 Bow Court Fuggerstraße 1 B 2431 Curtiss Street 11 Huoju Road Fletchworth Gate 04158 Leipzig Downers Grove, Illinois 60515 Science & Technology Coventry CV5 6SP Germany...
