Summary of Contents for Romantis Satellite Communications UHP-8000

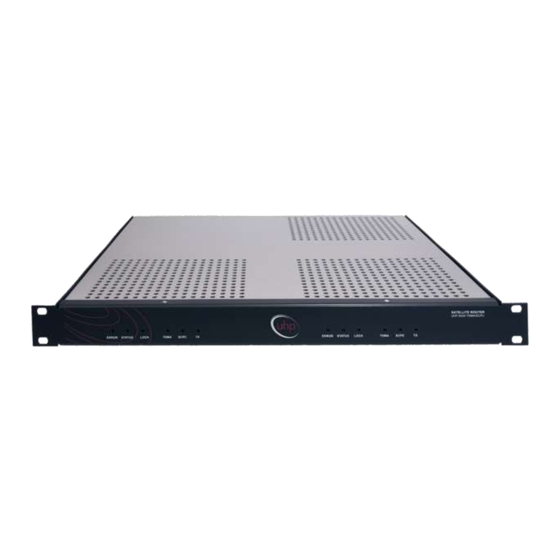

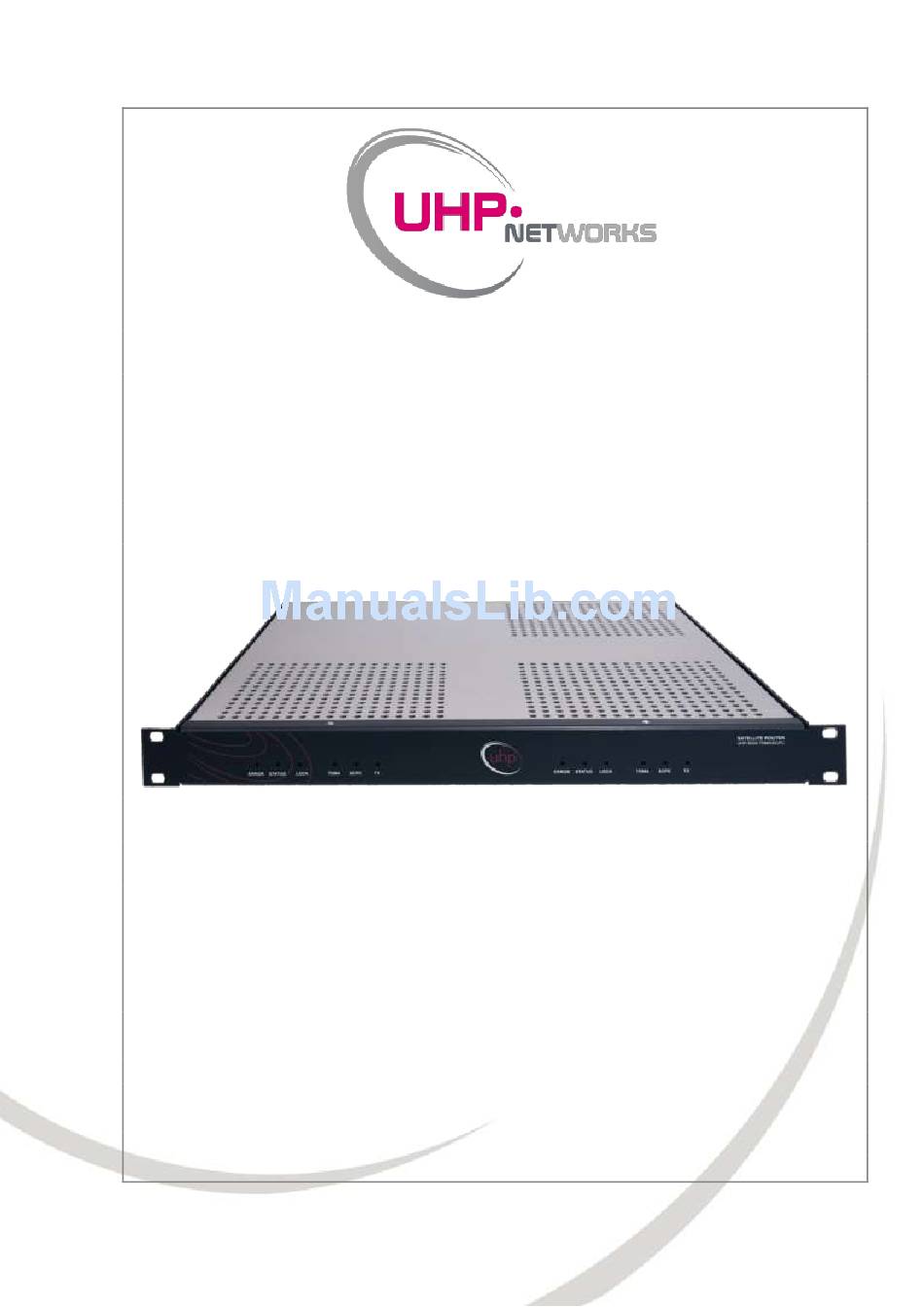

- Page 1 DUAL SATELLITE ROUTER UHP-8000 Romantis UHP-8000 GENERAL DESCRIPTION AND INSTALLATION GUIDE DOCUMENT RELEASE 3.2 [UHP.8R32.EN] JANUARY 2015...
-
Page 2: Table Of Contents
UHP-8000 DUAL SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 CONTENT Acronyms and Abbreviations ......................4 Introduction ............................. 6 Required level of qualification ........................6 Document version and applicability ......................6 Copyright ..............................6 General description ......................7 System overview ........................7 1.1.1... - Page 3 Figure 4 Standard internal configuration of UHP-8000 router ..............8 Figure 5 Internal configuration of UHP-8000 in Hub (HBIC) mode ............... 9 Figure 6 Internal configuration of UHP-8000 in dual Inroute (ICIC) mode ..........10 Figure 7 Satellite Router UHP-8000 series front view ................. 11 Figure 8 Example of router’s connection in a basic mode of operation.
-
Page 4: Acronyms And Abbreviations
UHP-8000 DUAL SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 ACRONYMS AND ABBREVIATIONS 16APSK 16 Amplitude and Phase-shift keying or Asymmetric Phase-shift keying, (APSK), is a digital modulation scheme that conveys data by changing or modulating both the amplitude and the phase of a reference signal (the carrier wave). - Page 5 UHP-8000 DUAL SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 SCPC Single Channel Per Carrier Short frames DVB-S2 frames 16200 bits long (including FEC). Advisable to use at lower symbol rates. Produce less delay than Long frames. SNMP Simple Network Management Protocol...
-
Page 6: Introduction
Router functional capabilities and its operating modes are determined by the installed software and its configuration. This manual is applicable to all UHP-8000 series satellite routers with software release 3.2 or higher. When ordering this document, please specify its ID: [UHP.8R32.EN]. -
Page 7: General Description
“mesh”-topology networks with several hierarchy levels and bandwidth-on-demand capabilities. UHP-8000 dual satellite router is an integrated chassis with two UHP-1000 routers and IF subsystem that can be used as two independent routers or as elements of some complex system (e.g. Hub, redundant modules, etc.). -
Page 8: Labeling And Sealing
UHP- 1000 router. Indications on the left side of the front panel are related to the router "A", the indications on the right side correspond to the router «B». The LAN and USB interfaces of each router are located on the rear panel of UHP-8000 chassis and marked with «A» and «B», respectively. © ROMANTIS 2015... -
Page 9: Power Connector (Power Input A/B)
Figure 5 Internal configuration of UHP-8000 in Hub (HBIC) mode 1.6.2 Power connector (Power input A/B) UHP-8000 router is powered with 100-240 VAC. UHP-8000 chassis has two independent power supplies (with individual AC inputs) for each of the router respectively. 1.6.3 USB CONSOLE (USB A/B) USB console ports provide local control of each of the integrated routers. -
Page 10: Lan Interface Connector (Lan A/B)
WARNING! T HE SUPPLY VOLTAGE AND THE REFERENCE SIGNAL SHOULD BE ACTIVATED ONLY ON THE ONE OF THE ROUTERS UHP-8000 modulators are compatible with most satellite transmitters/converters (BUC), except that require to explicit “TX On” FSK command. © ROMANTIS 2015... -
Page 11: Error" Indicator
GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 UHP-8000 is not provided with a separate protection on the transmitter power supply circuitry. Use is made of current protection for the power supply adapter. In case of a short circuit the router is de-energized and then gets restarted. -
Page 12: Scpc" Indicator
UHP-8000 DUAL SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 1.6.11 “SCPC” Indicator “SCPC” yellow indicator flashes every time a SCPC data placket is received via RX interface. 1.6.12 “TX” Indicator “TX” yellow indicator flashes every time a data placket is transmitted in the MCPC mode, and also a blank packet –... -
Page 13: Operations
2.2.2 Installation UHP-8000 Router is designed for installation in a 19” telecommunication rack or on a suitable flat surface. Make sure you have enough free space for ventilation of the power supply and the router (not less than 2 cm). -
Page 14: Powering On
Figure 8 Example of router’s connection in a basic mode of operation. Typically, the router UHP-8000 is connected to individual RF frequency equipment (ODU). In such configuration IF output of the modulator is connected to the power amplifier BUC, and the input of high-speed demodulator to LNB. -
Page 15: Local Access To Router Via Http Interface
Device Manager. To access the port use can be made of either the OS-integrated terminal (Hyperterminal) or third-party terminal programs. With the first connection of UHP-8000 Router to PC the system may request the device’s driver (not required for Windows 7 and newer OS). UHP.INF driver can be downloaded from our web site. -
Page 16: Operations
UHP-8000 DUAL SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 3. OPERATIONS UHP Routers belong to the class of unattended equipment and during its operation does not require any special staff exploitation. When operated as SCPC station or TDM/TDMA terminal the satellite router does not require any changes of settings or it is configured remotely from the Hub. -
Page 17: Troubleshooting
UHP-8000 DUAL SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 4. TROUBLESHOOTING Table 2 Troubleshooting guide Symptoms Possible reasons Actions Router doesn’t work AC power beyond the limits of allowed Check AC power voltage values Power cord is broken Check PSU cables and output voltage of PSU. -
Page 18: Replacement Of Modules
UHP-8000 DUAL SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 Symptoms Possible reasons Actions Low Rx carrier level Check Eb/No in demodulator’s statistics. Interferences Contact Hub administrator and investigate if the carrier is properly transmitting and local weather conditions do not attenuate the signal... -
Page 19: Storage, Transportation And Disposal
UHP-8000 DUAL SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 5. STORAGE, TRANSPORTATION AND DISPOSAL Storage and transportation of satellite routers must be performed in original packaging. Equipment can be stored and transported in pallet with height not more than 10 devices.
