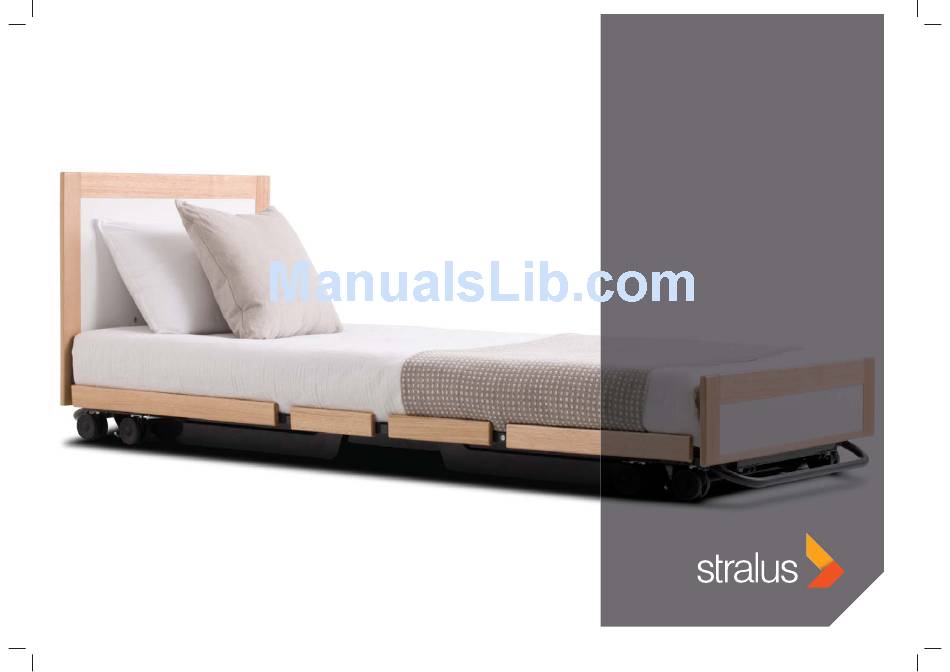

- Page 1 User Manual S Line Low Bed Important Please read before operation Model SLLS002 Version 1.0 (01-12-15)
-
Page 3: Table Of Contents
Using your S-Line Low Bed 1.1 Technical Specifi cations 3.1 Getting Started 1.2 Intended Use 3.2 Everyday Use 1.3 Unintended Use 3.3 Moving your Stralus Bed 1.4 Transportation Position 3.4 End of Product Life 1.5 Liability Keeping It Clean Functions and Features Maintenance 2.1 Overview... -
Page 4: Essential Information
Essential Information Thank you for choosing Stralus. Forward thinking healthcare products engineered and designed in Australia... -
Page 5: Technical Specifi Cations
Essential Information 1.1 Technical Specifi cations Mechanical Electrical Minimum Height 135mm Power In 230V AC, 50-60 Hz Maximum Height 700mm Power Out 24V DC, 8A Back Rest Angle 0 - 70º Duty Cycle 10%, 2min / 18min Knee Break Angle 0 - 30º... -
Page 6: Intended Use
Essential Information 1.2 Intended Use — 230kg Safe Working Load (SWL): The load on the bed can never exceed 230kg. This includes This product has been developed and tested for use accessories, mattress and style packs. The load under specifi c conditions. These are defi ned as the must be distributed evenly. -
Page 7: Unintended Use
Essential Information 1.3 Unintended Use — Person Transportation: This product is not intended for transportation of individual/s. The The following list of potential misuses would product should only be moved when in the constitute a signifi cant hazard to the resident, transportation position. - Page 8 This includes lying, sitting, leaning the bed in the transportation position. A step by step or resting on the bed. guide to moving your Stralus bed can be found in Section 3.1 — Not Supporting a Load: The bed may not...
-
Page 9: Liability
Essential Information 1.5 Liability Stralus accepts no liability for any injury, damage or loss, which may result directly or indirectly from use of this product outside the parameters defi ned by this document. It is the responsibility of the operator to ensure they obtain and read the latest version of all documentation. -
Page 10: Functions And Features
Functions and Features 2.1 Overview BACKREST KNEE BREAK FOOTREST HEADBOARD FOOTBOARD BRAKE PEDAL END BRAKING CASTORS... -
Page 11: Hand Control 11
Style Packs, designed to improve the resident’s experience. The Style Pack consists of Headboard, Footboard and Sideboards. BACKREST UP / DOWN Please contact your Stralus representative for information on Style Pack options. BED HEIGHT UP / DOWN FOOTREST UP / DOWN AUTO-CONTOUR UP / DOWN... -
Page 12: Mattress 12
Functions and Features 2.4 Mattress 2.5 Battery (Optional) The following mattress sizes are recommended Your Stralus bed can be fi tted with an optional for use with the S-Line Low Bed; battery backup pack, that allows operation without mains power. -
Page 13: Castors And Brakes 13
Functions and Features 2.6 Castors and Brakes Option 1: Individial Brakes Every Stralus bed comes fi tted with a braking Brake must be applied castor system, containing the following modes: to each castor individually. — Neutral — Brake BRAKE PEDAL... -
Page 14: Electronics And Software
Medical Devices). For more details please contact your sales representative. 2.8 Accessories A variety of Stralus accessories can be used with your bed. Only approved accessories are compatible. For a complete list of available accessories please contact your sales representative. -
Page 15: Using Your S-Line Low Bed
Using your S-Line Low Bed 3.1 Getting Started Before using your new Stralus S-line Low Bed, please make sure the following items have been assembled correctly, as shown. Assemble using 16mm wrench. Headboard Footboard Fasten Headboard to bed frame as shown;... - Page 16 Using your S-Line Low Bed Plug in Hand Pendant Control The Hand Pendant Control should be plugged in as shown; BATTERY CABLE POWER CABLE HAND PENDANT CONTROL CABLE CONTROL BOX...
- Page 17 Using your S-Line Low Bed Battery Charge If fi tted with the optional battery, ensure the battery is fully charged before using your Stralus bed. The battery will charge automatically once the bed is plugged into mains power, allow a minimum of 3 hours to fully charge the bed for the fi rst time.
-
Page 18: Everyday Use
Using your S-Line Low Bed WARNING - RISK OF ENTRAPMENT: 3.2 Everyday Use To minimise chance injury or entrapment, please complete the following checks before operating bed. Pre-Use Checklist Check brakes are engaged, and the bed WARNING - RISK OF ENTRAPMENT: Patient may become entrapped as they move on is stable the mattress surface. - Page 19 Using your S-Line Low Bed Bed Height Back Rest Bed height can be adjusted using the Back Rest section of the bed can be raised Hand Pendant Control. using the Hand Pendant Control. WARNING - RISK OF ENTRAPMENT: WARNING - RISK OF ENTRAPMENT: The operator must check that the area under bed The operator must check that the area under bed and behind the headboard are clear of:...
- Page 20 Using your S-Line Low Bed Knee Break Auto-Contour Knee Break can be raised using the Back Rest and Knee Break can be simultaneously Hand Pendant Control. raised using the Hand Pendant Control. WARNING - RISK OF ENTRAPMENT: WARNING - RISK OF ENTRAPMENT: The operator must check that the area between The operator must check that the area between the the knee break and the upper frame is clear of:...
- Page 21 Using your S-Line Low Bed Foot Position To raise foot section; Lift foot end and allow ratchet to click and lock The default for the foot position is to remain lowered foot height in place. when the Knee Break is raised. The foot position can be manually raised as shown below;...
- Page 22 Using your S-Line Low Bed Castors Cable Storage Instructions for use; When storing or transporting your Stralus bed, ensure the power cable is stowed correctly, — For individual castors with individual brakes, using the provided cable management bracket. raise the pedal for Neutral and lower the pedal for Brake.
-
Page 23: Moving Your Stralus Bed
3.3 Moving your Stralus Bed — Ensure the area under the bed and surrounding areas are clear of people or obstacles before Before moving your Stralus bed, the operator must transporting the bed. fi rst ensure that the bed has been put into the Transportation Position (see Section 1.4). -
Page 24: End Of Product Life
Using your S-Line Low Bed 3.4 End of Product Life Disposal of electronics, metals and plastics is governed by varying regional regulations. Consult your sales representative for the best practice and dispose of products responsibly. - Page 25 Keeping your Bed Clean In order to maintain consistent function and a healthy Safety Notes: environment the bed should be cleaned regularly, — This product cannot be cleaned by an auto and in accordance to the cleaning instruction below. washer or water jet cleaner. Raise the Backrest and Knee Break —...
-
Page 26: Maintenance
All maintenance must be performed by a trained 5.1 Regular Maintenance service technician. Please contact your sales Part of the care and upkeep of your Stralus bed is representative for details. regular maintenance. This product must be serviced at the frequency specifi ed in Section 1.2. Regular maintenance is also a condition of this product’s... -
Page 27: Troubleshooting
Contact your sales malfunctioning position, but bed does not representative or a qualifi ed stay in place Stralus service technician Bed does not move Bed is not plugged in Check if the power lead If unplugged, plug power up or down... - Page 28 Actuator wear Sound is persistent only Contact your sales ticking sound when actuator is being representative or a qualifi ed used Stralus service technician Squeaking or Mechanism wear Sound is persistent Contact your sales grinding sound representative or a qualifi ed...
-
Page 29: Appendix
The components listed below are covered by the This document is to be considered part of a following warranty periods: Stralus product and should only be held by owners/ — Stralus bed frames: Standard 10 year warranty operators of the relevant product. This document cannot be copied, transferred, distributed or altered —... -
Page 30: Notes
Notes... - Page 32 T/ 03 8833 7850 stralus.com.au Please email any suggestions or queries to: development@stralus.com.au...
