Summary of Contents for Oostwoud 3145

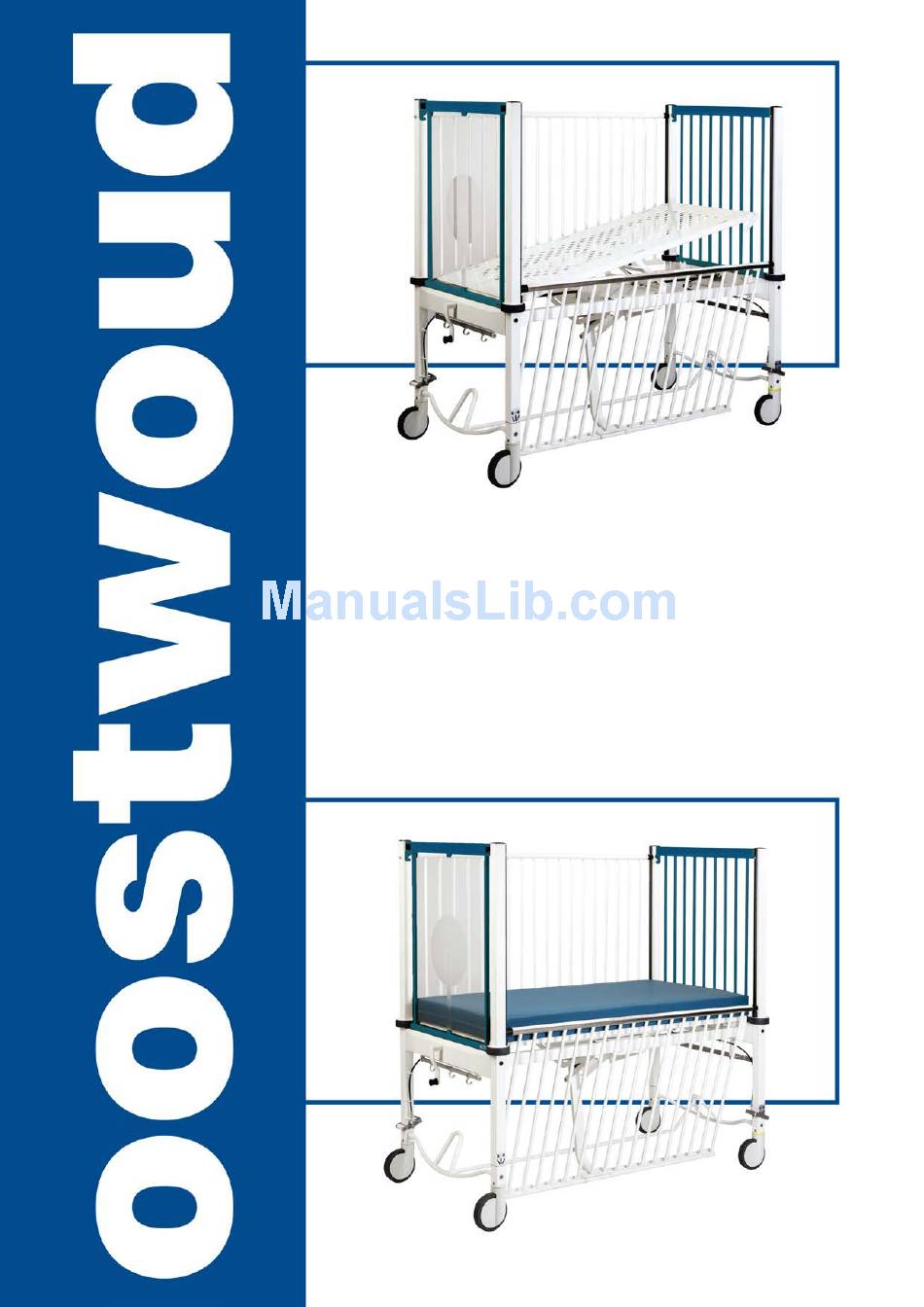

- Page 1 User Manual Sinnebêdsje 3144/3145 gaw3144-45_ENG G A W _ 3 1 4 4 - 4 5 _ E N G / 2 4 - 3 - 1 4 2 0 1 4 / P a g e 0 o f 1 2...
-
Page 2: Table Of Contents
MAINTENANCE AND SERVICE ........10 10 MACHINE WASHING ........... 11 11 SPECIFICATIONS SINNEBÊDSJE 3144 / 3145 ....12 Appendix: Declaration of Conformity G A W _ 3 1 4 4 - 4 5 _ E N G / 2 4 - 3 - 1 4 2 0 1 4 / P a g e 1 o f 1 2... -
Page 3: Foreword
INTERN ATION AL BV. This likewise applies to the accompanying drawings and parts lists. OOSTWOUD INTERN ATION AL BV r eserves the r ight to make changes to components at any t ime without prior or dir ect notif icat ion of the customer. -
Page 4: Technical Support
The bed’s serial number Week and year of manufacture This information can be found on a sticker on the side of the bed frame, near the foot end: OOSTWOUD INTERNATIONAL B.V. Harlingerweg 49b P.O. Box 502 8800 AM Franeker... -
Page 5: Central Caster Locking
3 CENTRAL CASTER LOCKING An operating pedal for the caster functions is located both at head end and foot end of the bed. Caution: never use excessive force when operating caster functions. If operating the pedals requires too much force, contact our technical service department. TRANSPORT MODE The pedals of the caster locking functions point outward as shown on the picture. -
Page 6: Operating The Side Rails
4 OPERATING THE SIDE RAILS S i d e r a i l s i n h i g h p o s i t i o n For safety reasons, the side rails are operated by two-point control. When standing at any long side of the bed and facing the bed, there’s a foot pedal at the bottom of the right bed leg, right above the caster. -
Page 7: Height Adjustment
5 HEIGHT ADJUSTMENT (not applicable for beds w ith fixed height) 5a: Height adjustm ent of mechanical beds Using the crank at t he f oot end of the bed, the height of the bed can be mechanically adjusted. Turning crank clock wise raises the bed while turning counter clockwise lowers the bed. -
Page 8: Tilting The Mattress Plate
6 TILTING THE MATTRESS PLATE The bed’s mattress plate can be tilted to Trendelenburg and reverse Trendelenburg positions. Adjusting the tilt of the mattress plate is supported by a gas spring. This gas spring only compensates for the weight of the mattress plate, the mattress plate still needs to be manually lifted or pressed down. -
Page 9: Removing The Head And Foot End Sections
7 REMOVING THE HEAD AND FOOT END SECTIONS The end sections at head and foot ends of the bed can be removed completely. Two slide latches that can be pushed inward to unlock the end section are located in the upper tube of each end section. -
Page 10: Placing Back The Head And Foot End Sections
8 PLACING BACK THE HEAD AND FOOT END SECTIONS Place the end section on the bed in such a manner that the lower tube is positioned between bed’s bumpers. The holes in the bottom side of the end piece fit over the cylindrical bolt heads that sit on top of the bed frame (marked with red circles in the picture). -
Page 11: Maintenance And Service
9 MAINTENANCE AND SERVICE As far as preventive maintenance is concerned, Oostwoud recommends having the Sinnebêdsje inspected at least every year. The following points should be checked. 1 Casters Check the locking functions. 2 Frame Check if the bolts in the inner corners of the bed frame are tightly fixed. -
Page 12: Machine Washing
10 MACHINE WASHING (for machine w ashable versions onl y) The washable versions of the Sinnebêdsje are suitable f or machine washing. These versions have been tested with the f ollowing washing agents : • Neodischer ® Dekonta (cleaning detergent) •... -
Page 13: Specifications Sinnebêdsje 3144 / 3145
11 SPECIFICATIONS SINNEBÊDSJE 3144 / 3145 The mattress plate is provided with six fastening brackets for restraining systems (see top view, marked with “A”). TAKE NOTICE: Restraining equipment may only be applied by certified personnel! Restraining equipment may only be applied to the fastening brackets in the mattress plate,...
