Page 1: Getting Started

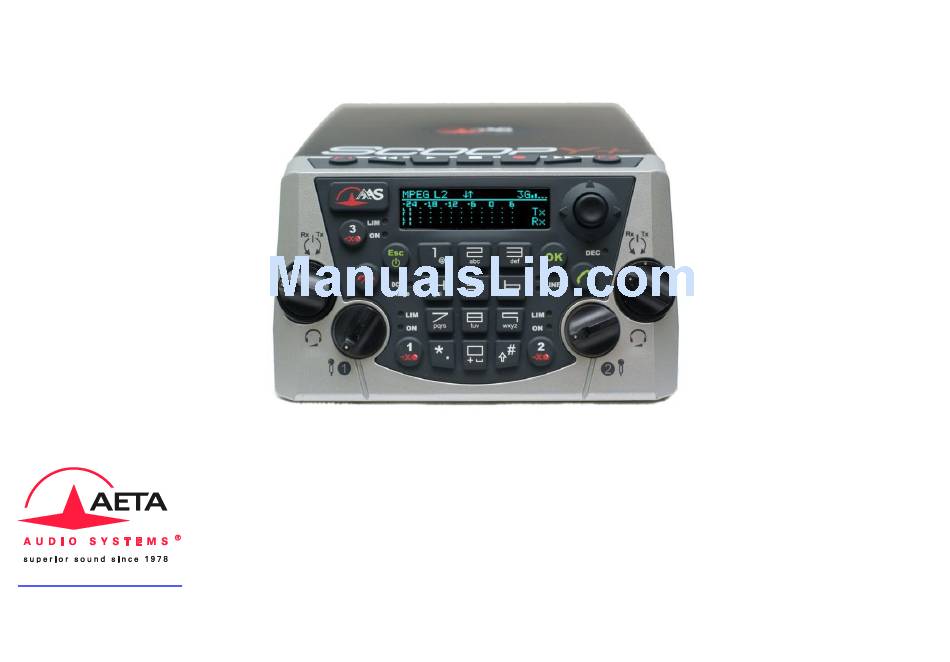

SCOOPY+ Getting started www.aeta-audio.com Characteristics may change without any prior notice for improvement purpose 55 000 073-C © 2015... - Page 2 Front panel and controls Hang up key: Press the Red phone key to release a connection Mic button 3 : To enable/disable microphone input 3 Esc / Power key : Hold it for 3 seconds to start the ScoopFone Power On/Off and Esc key OLED display OK / Menu...
- Page 3 Rear panel and Network interfaces 1. External DC Jack 2. Ethernet RJ45 Jack 3. Audio device extension connector, compatible with Mixy 4. POTS RJ11 Jack ( POTS Option) 5. USB interface to an external mobile module 6. ISDN RJ45 Jack ( ISDN Option 7.
- Page 4 Only NiMH batteries are supported by the full user manual on our web site: internal charger. www.aeta-audio.com Antenna (Wireless option) In this guide, we assume most of the main basics are The Scoopy+ has an optimal internal antenna. In place of...
- Page 5 Adjust your microphone(s) level SET A CALL Turn ON the mute LED indicator with the mute key, i.e. The Scoopy+ should have been configured before this for microphone 1 step. If it isn’t the case, go to network configuration Set the Level control ([9] for mic.
-
Page 6: General Setup
Set a call with a memory To select another NETWORK Press the key and select the directory menu select Remote Prof. Move to your profile with the Enter the menu by pressing , then Setup / Network. Select Change Network, and then scroll down using the joystick and press key to launch the call. -
Page 7: Ethernet Ip Network
Enter an IP address, for example menu Setup / Network / Change Network / Ethernet. stun.aeta-audio.com You can check if the Ethernet connection is active if you by using the front panel keyboard, then press can see a light on the RJ 45 connector and if the IP address is clearly identified. -
Page 8: Isdn Network
Hybrid mode. The encoded mode is compatible Technologies / Auto. only with AETA POTS codec. The Hybrid mode is Then in the menu select Access Point / APN: enter compatible with standard phones. the APN code for your operator using the keypad, Adjust the needed parameters (Line level, DTMF, etc.):... - Page 9 To select the coding algorithms: enter in the menu Setup To get HD Voice over mobile (7 KHz bandwidth) / Algorithm / Other then choose your algorithm according To get a HD Voice connection, some conditions are to the network quality and rate. required: Cellphone mode (internal mobile only) - Both devices in the connection must support HD voice...
- Page 10 Also, you enable the coordination return on each COORDINATION CHANNEL headphone by menu Setup / Audio / Outputs Headphones / Headphone x - This feature is available only with internal wireless option. Set a call - You don’t need to set the Mobile Service to the cell phone mode for having a coordination To set a call, select / Menu / Setup /...
- Page 11 Make a take (Extract a part of a recording) RECORDING (optional) Recordings are saved on the SD Card mounted in the During playback, press to mark the beginning and rear panel holster [7]. press to mark the end cue. Press to save your Recording selection into a new...
- Page 12 CONTACTS / RELAYS You can transmit 2 “contact” states along with the audio program during an established link. These contacts can e.g. control relays or lamps on the remote side. Conversely, 2 “relay” states can be received from the remote side. Note: to be effective, this feature should be enabled on both sides.
-
Page 13: Web Interface
WEB INTERFACE Once the SCOOPY+ is connected on an IP network, the first step is to get its IP address, from the menu: Tools / About / Local IP. On the control computer, launch the html browser and enter the IP address of the SCOOPY+ in the “address” or “URL” field. This gives access to the html server integrated in SCOOPY+, offering the status and full management of the unit:... - Page 14 NOTE ACCESSORIES _____________________________________________ Carrying bag _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Car adapter cable _____________________________________________ _____________________________________________ _____________________________________________ Spare AC/DC adapter _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ External multiband antenna _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Audio extension: MIXY _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Relay extension _____________________________________________ _____________________________________________...
- Page 15 AUDIO SYNOPTIC Level on display Gain power 0/16/32/48dB Gain Limiter 50Hz Mute P12v/48v Mic/Line -20dB Input PAD* Send Send Gain Line Output Receive Level on display 6.35mm Volume * : PAD available only on input 3...
- Page 16 HOT LINES FOR AETA CODEC TESTS ISDN: +33 1 41 36 12 68 POTS: +33 1 41 36 12 75 IP: 200@86.64.17.66 APN Codes (mandatory for wireless IP data) _____________________________________ _____________________________________ _____________________________________ Your own numbers _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ AETA AUDIO SYSTEMS S.A.S.
