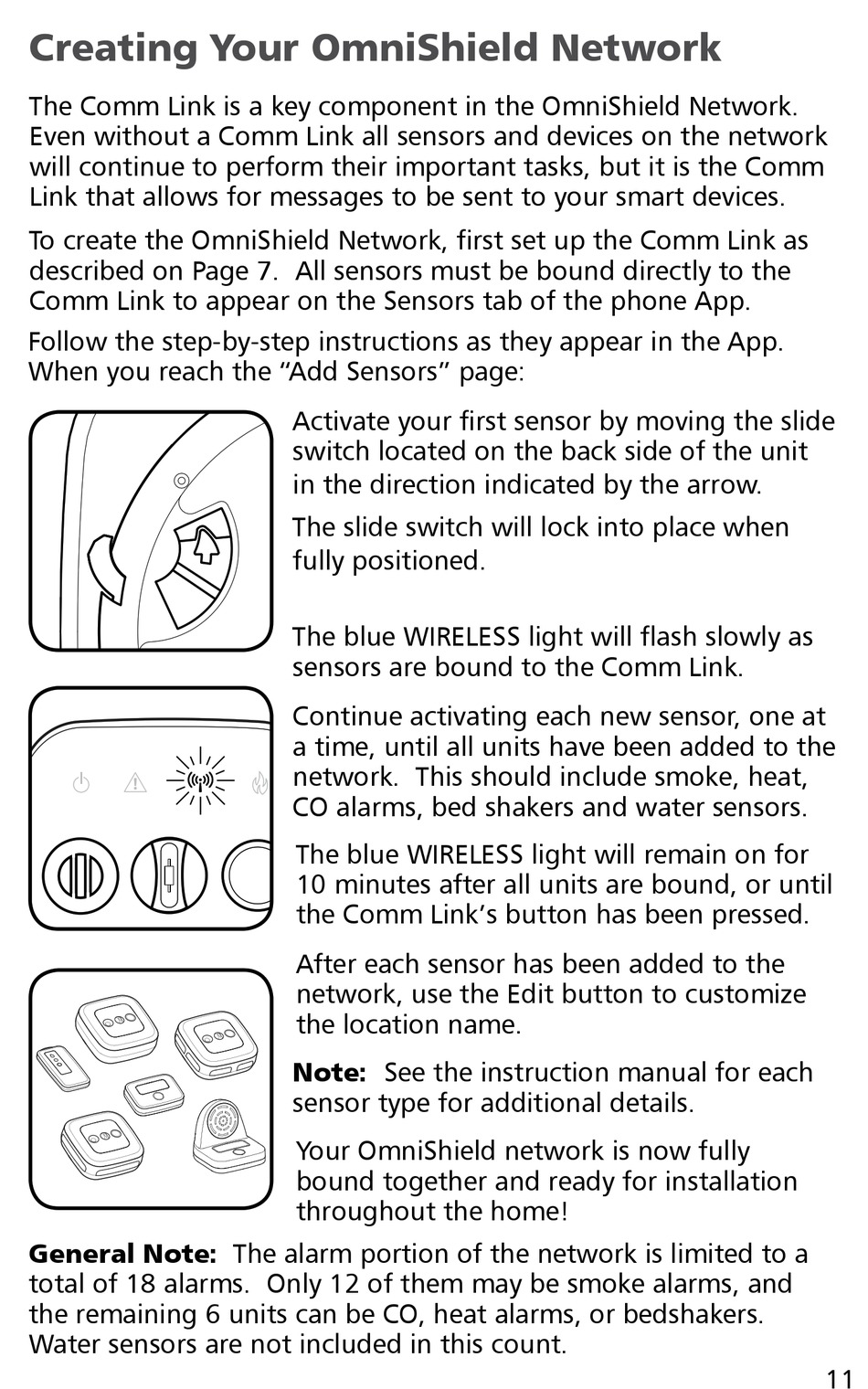

Creating Your OmniShield Network

The Comm Link is a key component in the OmniShield Network.
Even without a Comm Link all sensors and devices on the network
will continue to perform their important tasks, but it is the Comm
Link that allows for messages to be sent to your smart devices.
SHIPPED, DEACTIVATED
To create the OmniShield Network, first set up the Comm Link as
described on Page 7. All sensors must be bound directly to the
Comm Link to appear on the Sensors tab of the phone App.
Follow the step-by-step instructions as they appear in the App.
When you reach the "Add Sensors" page:
General Note: The alarm portion of the network is limited to a
total of 18 alarms. Only 12 of them may be smoke alarms, and
the remaining 6 units can be CO, heat alarms, or bedshakers.
Water sensors are not included in this count.
Activate your first sensor by moving the slide
switch located on the back side of the unit
in the direction indicated by the arrow.
The slide switch will lock into place when
fully positioned.
The blue WIRELESS light will flash slowly as
sensors are bound to the Comm Link.
Continue activating each new sensor, one at
a time, until all units have been added to the
network. This should include smoke, heat,
CO alarms, bed shakers and water sensors.
The blue WIRELESS light will remain on for
10 minutes after all units are bound, or until
the Comm Link's button has been pressed.
After each sensor has been added to the
network, use the Edit button to customize
the location name.
Note: See the instruction manual for each
sensor type for additional details.
Your OmniShield network is now fully
bound together and ready for installation
throughout the home!
11
