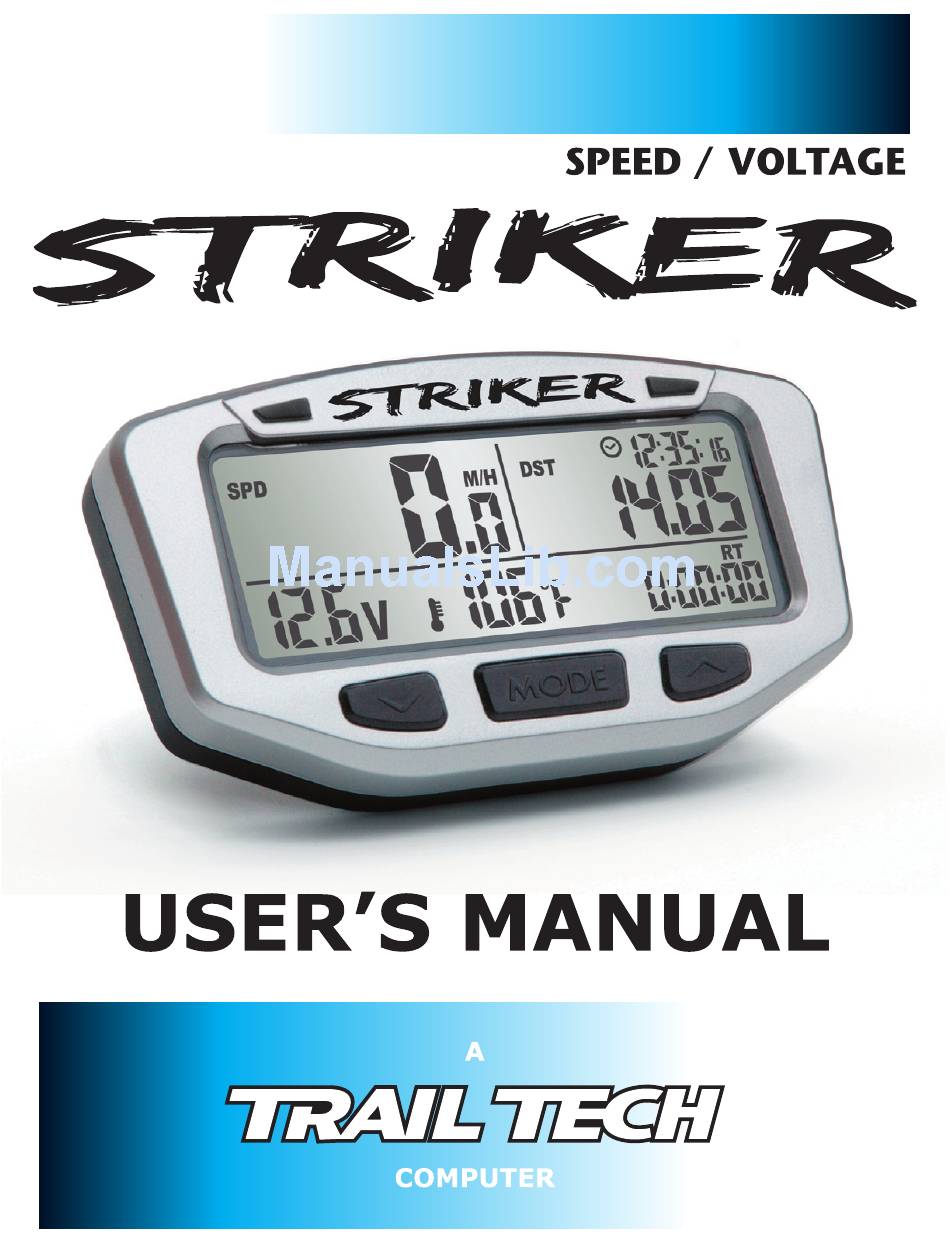

Trail Tech STRIKER User Manual
  1. Manuals
  2. Brands
  3. Trail Tech Manuals
  4. Bicycle Accessories
  5. STRIKER
  6. User manual

Trail Tech STRIKER User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STRIKER and is the answer not in the manual?

Questions and answers

Related Manuals for Trail Tech STRIKER

Summary of Contents for Trail Tech STRIKER

  • Page 3 Quick-start Normal Mode Backlight Switch Screens Stop Watch Setup Mode Enter Setup Switch Screens Scroll Value Next Digit Data Reset Reset Ride Data Adjust Trip Distance Mode Enter / Exit Scroll Value...
  • Page 4 Please read this manual carefully. If you call to request service for your Striker digital gauge, you need the date of purchase, dealer’s name, address, and telephone number. Warranty service requires proof of purchase.
  • Page 5 • Do not leave the main unit in cleaners. direct sunlight when not riding. • Striker can be used in the • Check gap between speed rain but should not be used sensor and magnet periodically.
  • Page 6 Specifications FUNCTION ICON UNITS RANGE Current Speed KM/H or M/H 4 - 299.9 Average Speed KM/H or M/H 4 - 299.9 Maximum Speed KM/H or M/H 4 - 299.9 (Trip) Distance KM or M 0.00 - 299999 Odometer KM or M 0.00 - 299999 Voltage VAC/VDC...
  • Page 7 Specifications PHYSICAL FEATURE DESCRIPTION Speed/Distance Sensor Non-contact Magnetic Sensor Temperature Sensors External Ambient and Engine Thermistor Sensors Voltage Sensor Red/Black Power Wire Remote Thumb Switch Optional, Mirrors Main Buttons Backlight 5 White LED Group Product Dimensions 106.93x59.46x23.7mm WxHxD (4.21x2.34x0.93”) Screen Dimensions 78.75 x 28.6mm (3.1 x 1.13”) Product Weight 3.9 oz.

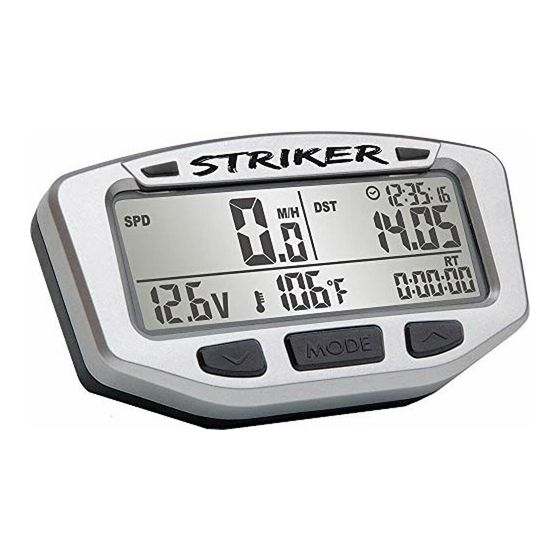

  • Page 8 Physical Features Striker Computer: Main Computer: • The Striker computer has 3 buttons and 2 LED’s. LEDs: • Amber Warning LED: Voltage [Flash], Temperature [Solid] • Red Danger LED: Voltage [Flash], Temperature [Solid] Remote Switch: • Duplicates buttons on the main computer (sold separately.)
  • Page 9 The speed sensor is mounted The remote switch mirrors the to the brake caliper on the buttons on the main unit, for wheel. Without the speed accessibility closer to the hand sensor mounted, Striker while riding. cannot display speed or gather distance data.
  • Page 10 HOLES Internal Battery: • Striker has an internal 3.0V watch type battery (#CR2032). The computer can be run from the internal battery without being connected to a vehicle power source. For proper, full-featured use (LEDs and voltage readouts), connect to vehicle power.
  • Page 11 Physical Features Bar Mounting: Place nuts and bolts as shown in picture. Temperature Sensors: Please see-model-specific instructions for mounting procedure. RADIATOR HOSE SPARK PLUG TEMP. SENSOR Cylinder Head Temperature Temperature Sensor Sensor for air-cooled machines. in-line in radiator hose for water-cooled machines.
  • Page 12 Physical Features Flat/Surface Mount: There are two screw holes on the back of Striker. Use the included M4 bolts to mount to any flat surface. If other than provided screws are used, make sure they are not too long for mounting holes.
  • Page 13 It is best to connect so power is not interrupted by the key switch. • The “LO” indicator will activate if voltage drops below 2.45V. • Striker draws too little power to drain the vehicle battery. • Striker is polarity independent. Power Wire...
  • Page 14 ATV Magnet Bolt The magnet spins around tripping the sensor switch each time-- giving Striker speed, distance and time data. The magnet is installed on the brake rotor because it spins with the wheel. The provided magnetic bolt can simply replace a stock rotor bolt (see above picture).
  • Page 15 Striker can tell how far and fast it’s traveled by how many times the magnet passes the sensor.
  • Page 16 Measure Wheel Size Overview: Knowing your exact wheel size it critical for Striker to calculate correct speed and distance data. The more accurate the wheel size, the better Striker performs. Method 1: Ruler Wheel Size = Find the Wheel Diameter(mm) x3.14...
  • Page 17 4. Use the numbers to solve for X in the following equation: (actual miles) x (current wheel size) (new wheel size) (current miles) 5 x 2110 4.95 10550 4.95 X = 2131 5. Enter the number found above into Striker.
  • Page 18 User Interface Normal Mode: All of the information that Striker provides is on one of these 3 screens. When riding, the user has the choice of staying on Screen 1 or Screen 2. Screen 3 contains statistical information and reverts back to screen 1 after a short period.
  • Page 19 (pg.21) • Max Speed (pg.21) • Odometer (pg.22) • Clock (pg.26) • Accum. Ride Time (pg.27) • Max Voltage (pg.24) • Min Voltage (pg.24) • Max Engine Temp (pg.25) Striker alternately displays min/max voltage and avg/max speed every 2 seconds.
  • Page 20 Accumulated Ride Time) • Temperature (Ambient Air and Engine) Sleep Mode: If Striker sees no activity (either wheel movement or a button press) for 5 minutes, it will enter sleep mode and only display the clock. Sleep mode will end when any...
  • Page 21 MAX SPD on Screen 3 By default, Striker alternately displays avg speed and max speed every 2 seconds on screen 3. Average speed can move to screen 2 using setup mode. If done, average speed will move to screen 2 and replace the current speed.
  • Page 22 1 ODO on Screen 3 from 3000-299,999. PERFORM A TRIP DATA RESET BY HOLDING THE LEFT AND CENTER BUTTONS FOR 3 SECONDS. (pg.30) Striker can display tenths (0.0) or hundredths (0.00) decimal places for distance and odometer. (pg.38)
  • Page 23 SCROLL DISTANCE VALUE BY PRESSING THE RIGHT OR LEFT BUTTONS. Hold to scroll faster. Striker will return to normal mode after 5 seconds of inactivity. Striker can display tenths (0.0) or hundredths (0.00) decimal places during trip distance edit mode.
  • Page 24 System Features Voltage: Description: The voltage function provides a display of voltage, maximum voltage, and minimum voltage. Voltage data is measured from the power input wire. It has a resolution of 0.1 volts and is accurate across the entire sensor range. Voltage: Displayed on screens 1 and 2 in the lower left with a...
  • Page 25 System Features Temperature: Description: The temperature function includes engine temperature, ambient temperature, and maximum engine temperature. The LEDs can alert of over-temp issues. Engine Temperature: Displayed on screen 1 in the lower middle with a thermometer icon. Engine Temperature on Screen 1 Ambient Temperature: Displayed on screen 2 with the AIR icon.
  • Page 26 System Features Time: Description: The time features consist of a clock, current ride timer, accumulated run time, and stop watch (TT.) Clock: Displayed in the upper right on all screens, the clock increments continuously and has a selectable 12H or 24H H:M:S display.
  • Page 27 System Features Ride Time: Displayed in the bottom right corner of screen 1. Ride time shows how long the bike has been rolling since the last trip data reset. Ride time only increments when the Ride Time on Screen 1 vehicle is in motion.
  • Page 28 2. Using the adjustable trip distance feature. 3. Resetting single-ride data. 4. Pressing the reset button on the back of Striker. When maintenance reminder setting screens are viewed in data setup mode, the icons will clear if they have been activated.
  • Page 29 Description: Striker is equipped with a quality LED backlight for night-time operation. Connected to Vehicle Power: The backlight will turn off and Striker will enter sleep mode after 5 minutes of inactivity (any button press or wheel movement.) Internal Battery Only:...
  • Page 30 Data Reset Data Reset: Description: After every ride, a trip data reset should be performed. The data will be reset to zero so that new information can be logged on the next ride. Values reset during a Data Reset: Avg Speed •...
  • Page 31 Setup Mode Overview: Description: Setup mode is crucial for Striker to operate correctly. SETTINGS ORDER VALUE DEFAULT A. Distance Units KM/H or M/H B. Tire Size Millimeters 2109mm C. Clock 12Hr or 24Hr 12Hr Time-of-Day 12:00:00 D. Temperature ºF or ºC ºF...
  • Page 32 M/H. TO CYCLE BETWEEN M/H AND KM/H, PRESS THE LEFT BUTTON. TO CONFIRM, PRESS THE CENTER BUTTON. Striker will move on to the next setting. Setup Wheel Size: See “Measure Wheel Size” on page 16 for more information. DEFAULT ATV:...
  • Page 33 Striker defaults to 12 Hr format. TO CYCLE BETWEEN A 12 HR OR 24 HR CLOCK, PRESS THE LEFT BUTTON. TO CONFIRM, PRESS THE CENTER BUTTON. Striker will move on to the next setting. Setup Time of Day: MODIFY DIGIT: LEFT BUTTON...
  • Page 34 LEDs to flash. Because a high engine temperature alert is a serious issue, it will override the voltage alert, should they happen to activate simultaneously. Striker must connect to vehicle power for LEDs to function.
  • Page 35 LEFT BUTTON NEXT DIGIT: RIGHT BUTTON TO CONFIRM, PRESS THE CENTER BUTTON. Striker will move on to the next setting. Setup Danger Temperature LED: If engine temperature reaches this setting, the red LED will turn on as a critical warning.
  • Page 36 MODIFY DIGIT: LEFT BUTTON NEXT DIGIT: RIGHT BUTTON TO CONFIRM, PRESS THE CENTER BUTTON. Striker will move on to the next setting. Setup Danger Voltage LED: If voltage falls below this setting, the red LED will flash as a critical warning.
  • Page 37 Setup Mode Setup Oil and Wrench Alerts: Set the number of kilometers or miles left until Striker displays the oil and wrench reminder icons. After setting <OIL>, the <CARE> setting will appear. 0 KM/H or M/H (default) disables these alerts.
  • Page 38 MODIFY DIGIT: LEFT BUTTON NEXT DIGIT: RIGHT BUTTON TO CONFIRM, PRESS THE CENTER BUTTON. Striker will move on to the next setting. Setup Distance Resolution: Choose if Striker should display one (0.0) or two (0.00) decimal places for distance and odometer.
  • Page 39 Notes Notes:...
  • Page 40 • Try the reset button on the back of Striker. • The internal battery may be dead, or Striker is not hooked up to vehicle power properly. Review installation procedure. What kind of electrical systems does Striker work with? •...
  • Page 41 • To replace the battery, use a coin to unscrew the round panel on the back of Striker. Remove the old battery and install the new one. Make sure the positive pole is facing up. Replace with common watch battery CR2302. See page 10.
  • Page 42 BACKLIGHT: The light that brightens up Striker’s display. (TRIP) DISTANCE (DST): The distance covered since the last data reset. LEDs: The LEDs at the top of Striker can be programmed to alert of problems with voltage or temperature. MAINTENANCE REMINDERS ( ): The user programmable countdown in miles or kilometers for oil and wrench reminder icons.
  • Page 43 RIDE TIME (RT): The amount of time the wheels have been rolling since the last data reset. SENSORS: The speed sensor works with the magnet to let Striker collect its wheel data; a second sensor measures the temperature. SLEEP MODE: If Striker doesn’t receive any sensory information it will go into Sleep Mode and only display the clock.
  • Page 44 LIMITED WARRANTY Within one year from the date of original purchase, Trail Tech will repair or replace, at its option, any Trail Tech powersport computer which is deemed defective in workmanship or materials. Please contact Trail Tech or the dealer where the item was purchased for assistance.
