Summary of Contents for Gefei MIO MVS - 4 HD

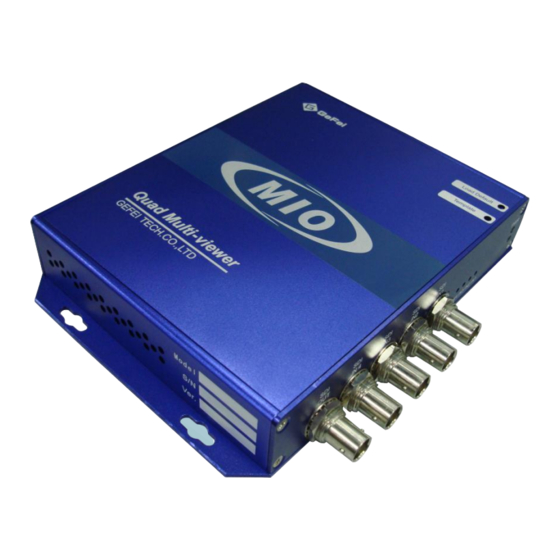

- Page 1 MIO MVS-4HD Quad Multi-viewer system User manual V2.2 Gefei Tech Co.,Ltd...
- Page 2 Copyright Copyright © 2009 Beijing Gefei Tech. Co., Ltd all rights reserved. This document may not be copied in whole or in part. Trademarks Gefei-Tech，Magi，MIO，VIO，XIO，MVS，MRS are either registered trademarks or trademarks of Beijing Gefei Tech. Co., Ltd in China and/or other countries. Other trademarks used in this document are either registered trademarks or trademarks of the manufacturers or vendors of the associated products.
-
Page 3: Table Of Contents
Content 1. Description ..................1 2. Features ..................1 3. Special Notice .................. 2 4. Panel Description ................3 4.1 Buttons Definitionl ..............3 4.2 Right Panel ................3 4.3 Left panel .................. 5 5. Application ..................5 6. How to Use the Remote Control Software ..........5 6.1 Attention before Use .............. - Page 4 Alignment tools ..............14 Full Screen ................15 6.3.2.8 Layout Management ...............15 Save Layout ...............15 Edit Layout ................15 Delete Layout ..............16 Download Layout File ............16 Upload Layout File ..............16 6.3.2.9 HDMI/HDSDI Output Resolution ..........16 HDMI Output Resolution ............16 HDSDI Output Resolution .............17 6.3.2.10 Audio Output Settings .............17 6.3.2.11 Ratio of Video ................17 6.3.2.12 Ratio of Channel ..............17...
- Page 5 Series Ports Settings ............25 Timing Settings ..............25 Upload Custom Picture ............25 6.3.2.19 Save ..................25 6.3.3 Detection Settings ..............26 6.3.3.1 Audio Detection ..............27 Audio Overload..............27 Audio in Silence ..............28 6.3.3.2 Video Detection ..............28 Loss of Signal ..............28 Video Frozen ..............28 Video Black ................28 6.3.4 User Configuration ..............28 6.3.5 Network Configuration ............29 6.3.6 Help ...................30...
-
Page 6: Description
Two forms of alarm: text alarm and icon alarm Support customized layout to preset various layouts for different application, such as studio, OB van, production room and so on Gefei Tech. Co., Ltd 1 / 32... -
Page 7: Special Notice
10. If the current output resolution of HDMI signal is not compatible with your monitor, you can change the output resolution on the web control server. Gefei Tech. Co., Ltd 2 / 32... -
Page 8: Panel Description
HDMI/DVI-OUT: Via DVI-I interface (female) to output DVI-D and HDMI signal. Although the device adopts DVI output interface, the HDMI signal can be obtained by using a DVI to HDMI adapter or cable. Gefei Tech. Co., Ltd 3 / 32... - Page 9 000000 (six zeros),The web server is remote control interface. GPI/RS232: Serial port. RS232, DB15 definition; Definition Definition CH1_TALLY CH2_TALLY CH3_TALLY CH4_TALLY Do„not connect Do‟not connect Do„not connect Do‟not connect Do‟not connect Gefei Tech. Co., Ltd 4 / 32...
-
Page 10: Left Panel
Correspondence between: IN1→SDI IN1，IN2→SDI IN2，IN3→SDI IN3，IN4→SDI IN4 5. Application 6. How to Use the Remote Control Software 6.1 Attention before Use Multi-viewer system has a built-in WEBSERVER, so user can configure it by Internet Explorer easily Gefei Tech. Co., Ltd 5 / 32... -
Page 11: Basic Physical Configuration
Open IE browser on Client PC, and input “http://192.168.1.76/config.html” in location bar to open web page of Physical Configuration. The page is shown as below. 6.2.1 Edit Input Source Edit name of input source for each input card on the left of web page. Gefei Tech. Co., Ltd 6 / 32... -
Page 12: Rotate Screen
Return to System: To release current name of input sources and arrangement of screens and jump to web page of 192.168.1.76 Rotation Configuration (Portrait Mode): Output can be rotated by four different angles. Based on actual installment direction of screen, you can select the appropriate one. Gefei Tech. Co., Ltd 7 / 32... -
Page 13: General Configuration
Default IP address is: http://192.168.1.76. Here appears a dialogue box for user login. Please input user name and initial password. Then click “login”, you will enter into the actual control interface. User name: admin; Password: 000000. Gefei Tech. Co., Ltd 8 / 32... -
Page 14: Function Overview
The descriptions are in detail as follows. Operation area for Choose Label area channels and other display language elements of each The list of input sources Parameters setting area Make/Delete signal marker Quick tool for Layout alignment management Gefei Tech. Co., Ltd 9 / 32... - Page 15 For example, if the needed channel is A4, click the bar of “Router3”, which turns blue. Step 2-Click pink button Step 3-Hold the mouse and drag a frame from top to bottom on the target screen. Gefei Tech. Co., Ltd 10 / 32...
-
Page 16: Choose Input Source
Step 1-Use the mouse to choose a needed input source in the list, and drag it out, Step 2-Drag the signal out of the list until it located on the target channel, and then release the mouse. Gefei Tech. Co., Ltd 11 / 32... -
Page 17: Make/Delete Signal Marker
The size of Logo and Analog Clock cannot be changed. You can change the size of Digital Timer, Count-down Timer, and Air Timer freely. Here are steps to create an Analog Clock/ Digital Timer/ Count-down Timer/ Air Timer/ Logo. Take Analog Clock as an example. Gefei Tech. Co., Ltd 12 / 32... -
Page 18: Delete An Object
Enter the numbers on three blank areas separately. Then press “OK” button to submit the data. The countdown timer is the interval time between air timer and current timer. 6.3.2.4 Delete an Object Choose the unnecessary objects (channels/ clock/ Timer/ LOGO), and then press the button Gefei Tech. Co., Ltd 13 / 32... -
Page 19: Clear All
Alignment tools All operations among these windows are aligned to the last selected one. : Align Top ：Align Bottom : Align Left : Align Right : Align Horizontal Center : Align Vertical Center Gefei Tech. Co., Ltd 14 / 32... -
Page 20: Full Screen
If the name of the layout is already existed, the newly-saved layout will take place of the old one. Edit Layout Click the thumbnail of the needed layout, and adjust the layout as you needed. After all the operation, click “save” button. Gefei Tech. Co., Ltd 15 / 32... -
Page 21: Delete Layout
HDMI output interface provides EDID detection from the monitor. And the resolutions from EDID are highlighted in the dropdown list. See the picture shown above. The output resolution of HDMI signal is up to 1920x1080p. Supports output resolutions as following: 1024x768x60p，1280x720x50p/60p，1280x768x60p 1280x800x60p，1280x1024x60p，1360x768x60p 1400x1050x60p，1600x900x60p，1680x1050x60p 1920x1080x50i/60i，1920x1080x50p/60p， Gefei Tech. Co., Ltd 16 / 32... -
Page 22: Hdsdi Output Resolution
UMD and Audio meters are changed. So for SD input signal, the aspect ratio of video image is 4:3；And for HD input signal, it is 16:9. 6.3.2.13 Ratio of Channel Gefei Tech. Co., Ltd 17 / 32... -
Page 23: Umd & Audio Meters Display
You can set the rows and columns to change the amount of lines and density of the cross points. If un-checking the box, there will be no lines across the screen. So objects are moved or adjusted Gefei Tech. Co., Ltd 18 / 32... -
Page 24: Position And Size
See the picture above. Enter the numbers on three blank areas separately. Then press “OK” button to submit the data. The countdown timer is the interval time between air timer and current timer. 6.3.2.18 OSD Elements Click the button “ ”，prompting the dialog box as following: Gefei Tech. Co., Ltd 19 / 32... -
Page 25: Umd Settings
1) Static UMD: Choose “Network” in the drop-down list, and click “Settings”. Upload UMD Text Type the characters in blank bar, change color of characters. Click “OK” to submit characters after all parameters are settled and all characters will be displayed in UMD bar. Gefei Tech. Co., Ltd 20 / 32... -
Page 26: Tally Settings
Tally Settings Two kinds of Tally mode are provided. They are Static Tally and Dynamic Tally. Choose “None” in the drop-down list The Tally function is disabled and Tally turns gray. Via GPI-Static Tally Gefei Tech. Co., Ltd 21 / 32... -
Page 27: Adjustment The Transparency Of Audio And Umd
0 to 15, and press “Enter” on keyboard. “0” stands for full transparency and “15” stands for opacity Attach to edge Gefei Tech. Co., Ltd 22 / 32... -
Page 28: Display Settings
HD-SDI signal is marked with 4:3 safe area markers, otherwise, not. Check the box “Border”, the selected channel is showed with border; otherwise, not. The border color of each channel can be configured freely. Please see the title below. Adjust Border Color Gefei Tech. Co., Ltd 23 / 32... -
Page 29: Extended Settings
Restore default button: to restore the factory default settings. Put the mouse on the cursor and drag it to the assigned position; or you can fill in the certain value, and press “Enter” on keyboard Gefei Tech. Co., Ltd 24 / 32... -
Page 30: Series Ports Settings
MIO MVS-4HD. The factory setting of timing mode is Local timing. Check the box “Local”, the local timing function is enabled, otherwise, not. Upload Custom Picture The function is reserved 6.3.2.20 Save Click the button “ ”,save "parameters setting area" parameter. Gefei Tech. Co., Ltd 25 / 32... -
Page 31: Detection Settings
Text is shown at the bottom of each channel. Video warning icon is shown at left edge of each channel, while audio warning is at the right edge. The video and audio input of each channel can report signal status and validity, with detection of (text and icons): Gefei Tech. Co., Ltd 26 / 32... -
Page 32: Audio Detection
The threshold and duration of detection can be configured for detection of each audio channel. The threshold means a maximum audio level. When actual volume is above this threshold, the system will prompt warning of audio overload. Gefei Tech. Co., Ltd 27 / 32... -
Page 33: Audio In Silence
It will prompt a warning picture as soon as video level is lower the threshold. This detection will take effect only if the box is checked. The duration of detection can be configured. 6.3.4 User Configuration The software provides password-protected function. The initial user name is admin, and the initial Gefei Tech. Co., Ltd 28 / 32... -
Page 34: Network Configuration
Change IP address User can modify the IP address. If modified successfully, the system prompts a message box labeled "Network has been configured successfully, please turn off the power and restart the device again.” Gefei Tech. Co., Ltd 29 / 32... -
Page 35: Help
Before the upgrade, the anti-virus software and firewall have to be closed to make sure that the upgrade data is transmitted to MIO MVS-4HD series system without rejection. 6.3.6 Help Show the version of firmware. Gefei Tech. Co., Ltd 30 / 32... -
Page 36: Contact Us
MIO MVS-4HD Quad Multi-viewer Gefei-tech Contact Us Technical support: Tel: 010-58858188 Fax: 010-58858189 Website www.gefei-tech.com E-mail：swang@gefei-tech.com Gefei Tech. Co., Ltd 31 / 32... - Page 37 MIO MVS-4HD Quad Multi-viewer Gefei-tech Address: Gefei Tech. Co., Ltd A-603 Power Creative Plaza NO.1 Shangdi E.Rd. Haidian District, Beijing 100085 To find more information, please visit www.gefei-tech.com Gefei Tech. Co., Ltd 32 / 32...
