TK SERIES USER GUIDE

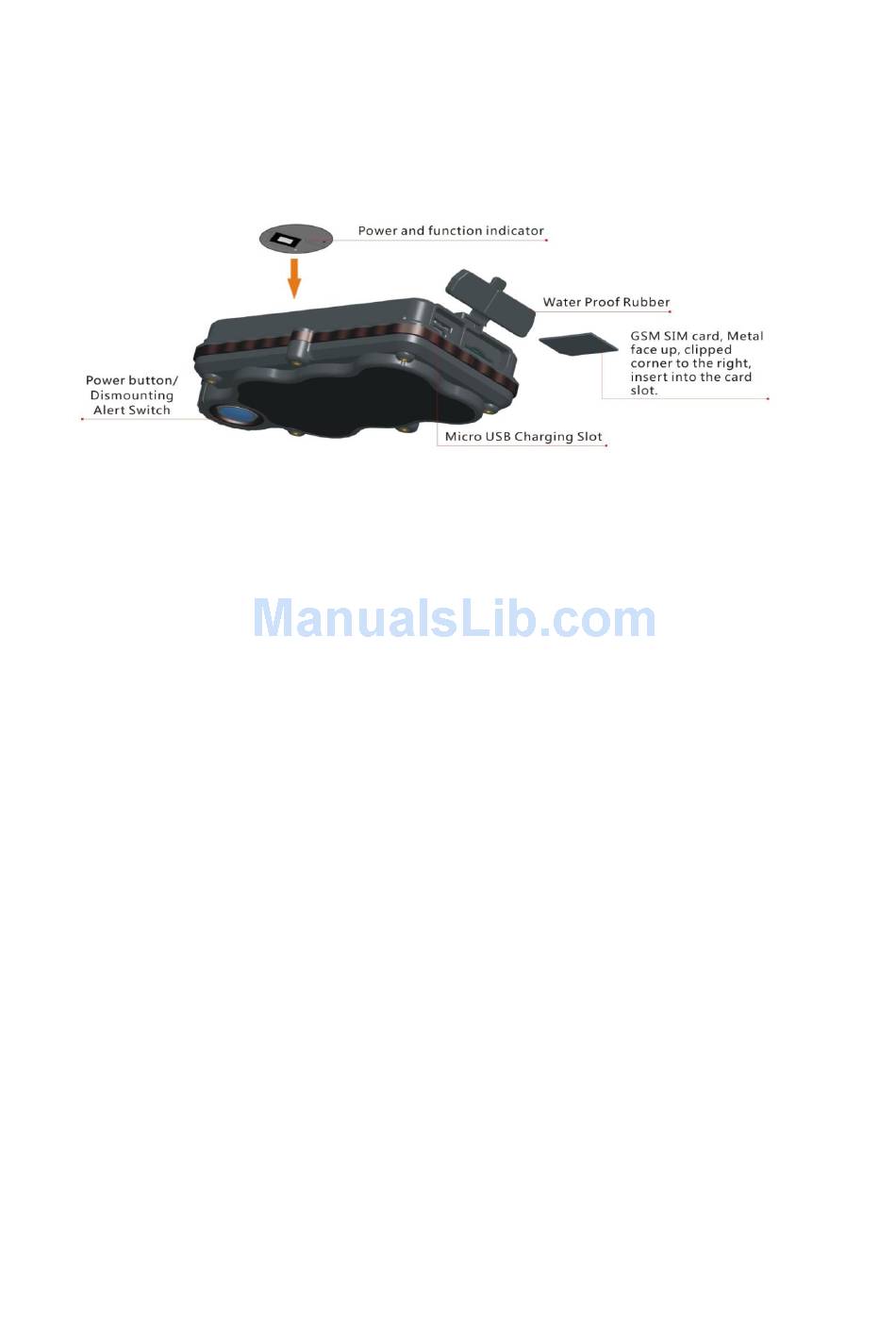

1. Product Image
Content of the packaging
a. Tracking device
b. Micro USB charging cable
c. Screwdriver and screws
d. User Guide
2. Installation Manual
2.1 SIM Card Pre-installation, specification note
a. GSM Normal SIM Only
b. SIM card should have its GPRS function enabled.
d. SMS request will function only if Caller ID function is enabled.
2.2 SIM Card Installations and Removal
a. Open waterproof rubber
b. Insert SIM card into the SIM slot, metal face up, clipped corner to the right.
c. Green light flashes once and turns to steadily on for 10 seconds, and then turns
off.
d. Call the device SIM number and it is supposed to get through without answer. (if you are
using a data SIM which is not supporting call function, ignore this step.)
e. Ensure the waterproof rubber is closed after SIM installation
2.3 Device Installations
a. Avoid all metal environment to make sure device is able to receive GSM and GPS
signal.
b. Avoid high temperature environment like above the car engine
