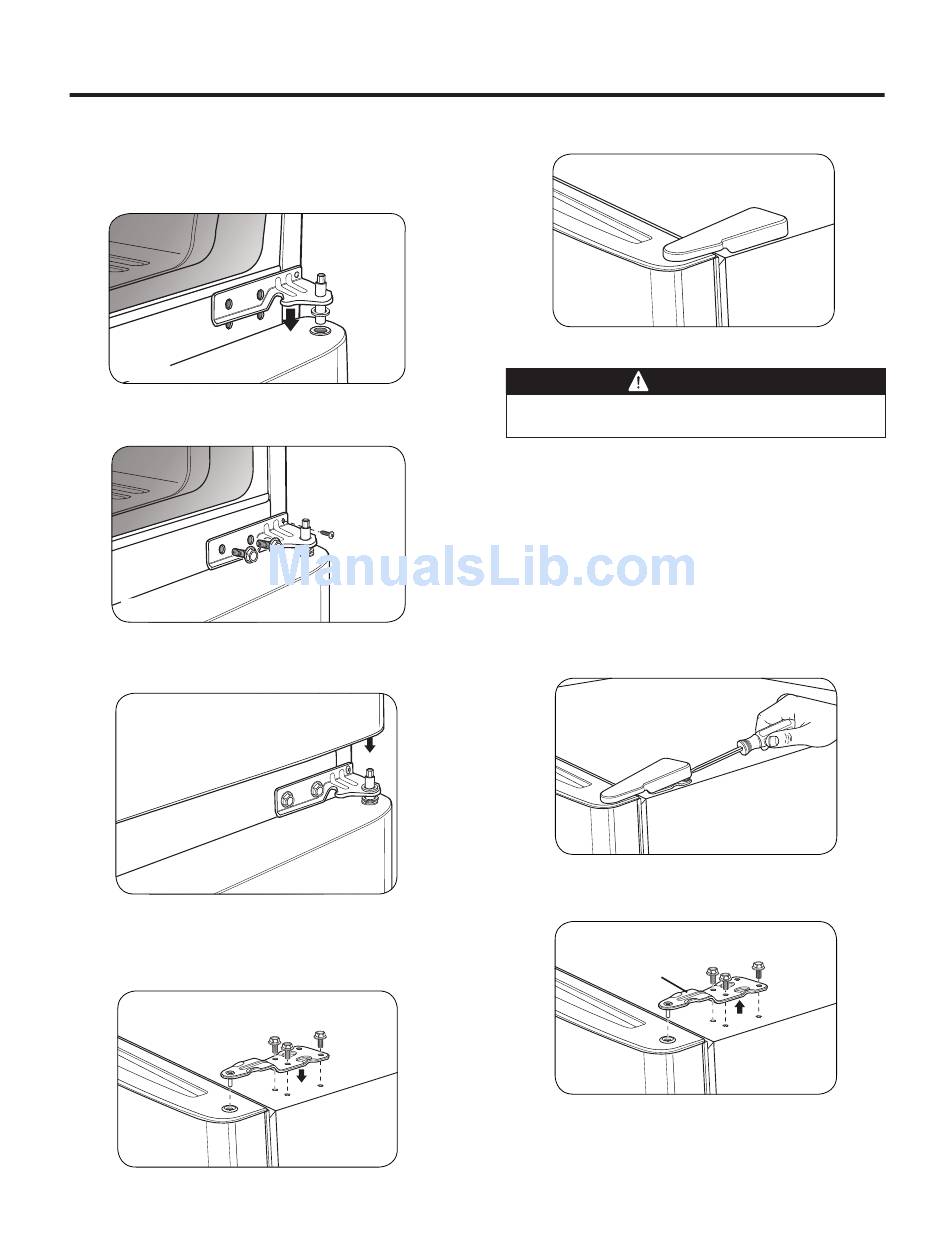

REPLACING THE REFRIGERATOR DOOR

Lower the door onto the bottom hinge pin. Place the hinge
pin of the middle hinge bracket inside of the hinge pin insert
on top of the door. Hold the door in place and line the middle
hinge bracket with the holes in the refrigerator housing.
Fig. 7
Use the two bolts and phillips screwdriver to refasten the
middle hinge bracket and door to the refrigerator housing.
Fig. 8

REPLACING THE FREEZER DOOR

Set the freezer door onto the Middle Hinge pin.
Fig. 9
Place the upper hinge pin in the top of the freezer door and
line up the upper hinge with the holes on top of the
refrigerator. Use the three bolts to replace the hinge.
Fig. 10
Carefully force-fit the top hinge cover back into place over
the hinge.
Fig. 11

REVERSING DOORS

Remove food and any Adjustable Shelves or Door Bins
from doors. Failure to do so could result in serious injury.
TOOLS NEEDED
‡  PP RU  LQFK VRFNHW ZUHQFK ZLWK  LQFK H[WHQVLRQ
for bottom door hinge).
‡ 1R  3KLOOLSV KHDG VFUHZGULYHU
‡  LQFK VRFNHW ZUHQFK
‡ )ODWKHDG VFUHZGULYHU IRU SU\LQJ
‡ $GMXVWDEOH ZUHQFK
‡  LQFK KH[ ZUHQFK
REVERSING THE FREEZER DOOR
Gently pry off the top hinge cover with a flat head screw-
driver and remove.
Fig. 12
8VLQJ  PP RU  LQFK VRFNHW ZUHQFK UHPRYH WKH
three bolts and lift off the top hinge. Set parts aside.
Top Hinge
Fig. 13
- 6 -
CAUTION
