Actions for each Trip and number of LED blinking
1. LED blinking 1 time (AD-offset Error)
Blink OFF Blink OFF
Cause : PCB Short, sensing part defect
Objective: to detect Motor voltage or current sensing defect

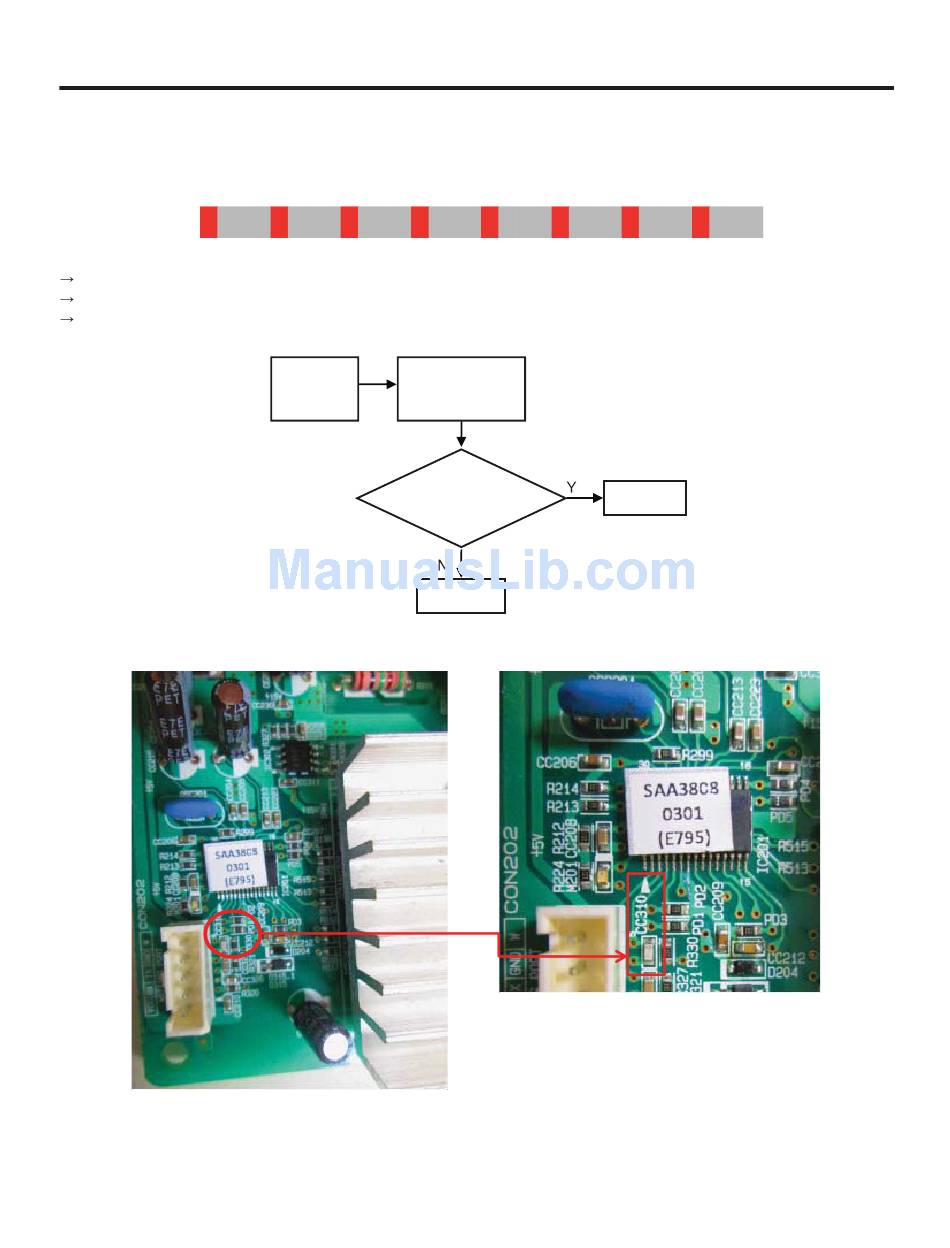

Actions: check CC310 voltage and if it is outside 2.2~2.8V, replace PCB
Check
LED blinking 1
time
protection
AD-offset Error
logic
Replace
Is it out of Spec.?
PCB
(2.2-2.8V)
Power Reset
- 14 -
