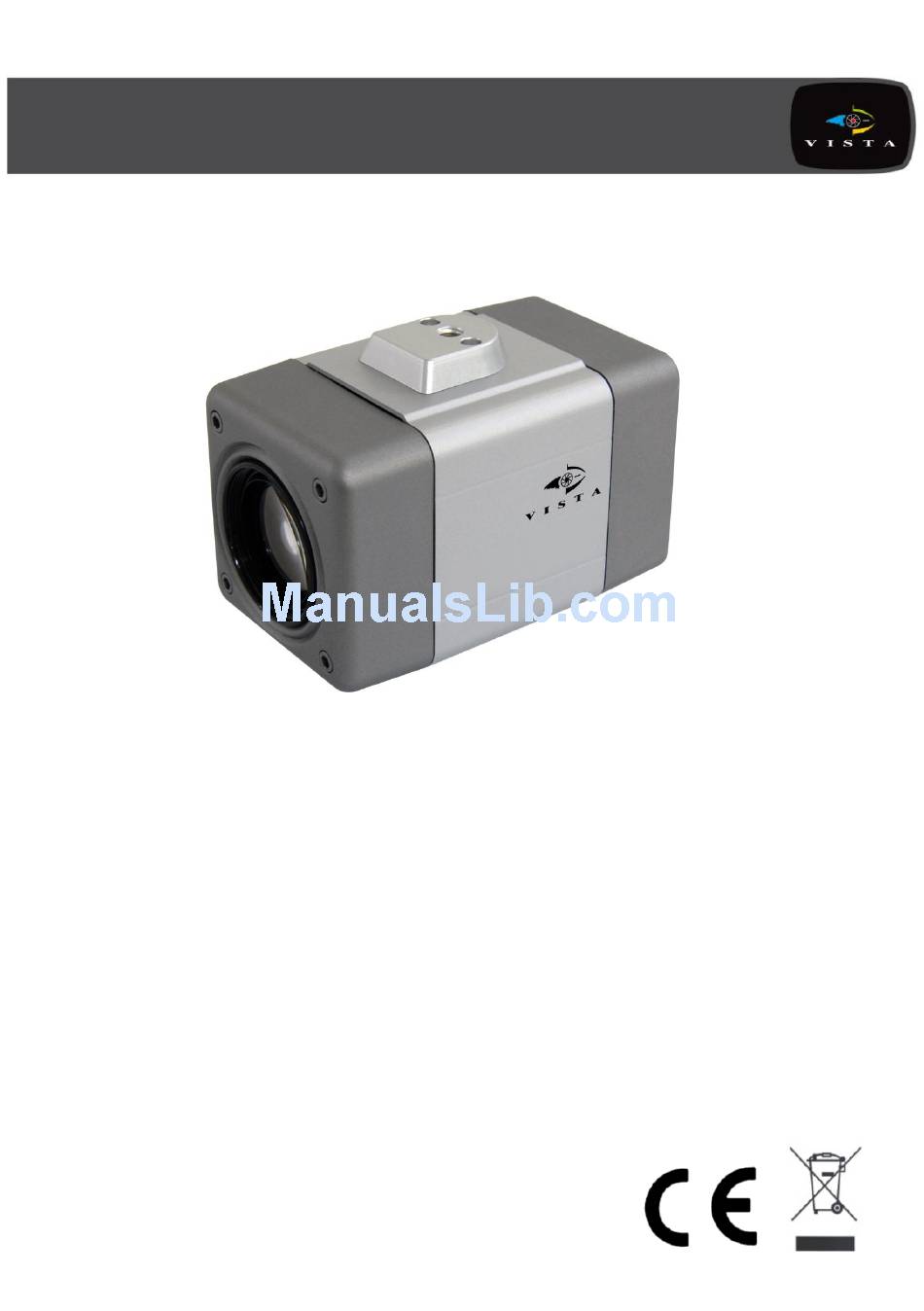

- Page 1 VZM22INT960H Manual MManualManual Set up and user manual for the VZM22INT960H camera...
- Page 2 For assistance in installing, operating, maintaining and troubleshooting this product refer to this document and any other documentation provided. If you still have questions, please contact Norbain Technical Support and Sales: Norbain SD Ltd, 210 Wharfedale Road, IQ Winnersh, Wokingham, Berkshire RG41 5TP, England. UK +44 (0) 118 912 5000 Note: You should be at the equipment and ready with details before calling Technical Support.
- Page 3 * This symbol indicates electrical warnings and cautions. ** This symbol indicates general warnings and cautions. NORBAIN SD LTD reserves the right to make changes to the product and specification of the product from time to time without prior notice.
-
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS Read the instruction manual before operating the equipment. Retain the manual for future reference. 2. CLEANING Turn the unit off and unplug from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use harsh cleansers or aerosol cleaners. 3. -
Page 5: Ce Compliance Statement
12. SERVICING Do not attempt to service the video monitor or equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 13. DAMAGE REQUIRING SERVICE Unplug the equipment from the wall outlet and refer servicing to qualified service personnel under the Following conditions: A. -
Page 6: Table Of Contents
TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------------------------------------- 7 CONTENTS OF PACKAGE ------------------------------------------------------------------------- 8 CAMERA OVERVIEW / CONNECTIONS -------------------------------------------------------- 8 CAMERA ADJUSTMENT / OSD ------------------------------------------------------------------- 11 TROUBLESHOOTING & MAINTENENCE------------------------------------------------------- 19 DIMENSIONS ------------------------------------------------------------------------------------------- 20 SPECIFICATIONS ------------------------------------------------------------------------------------- 21... -
Page 7: Introduction
INTRODUCTION ● Sony ¼” 960H SuperHAD CCD (700TVL Colour & Monochrome resolutions) ● 3.9mm ~ 85.8mm Zoom lens (F1.6 – wide / F3.7- tele) ● 22:1 Optical & x16 Digital (x352 zooming capability) ● 0.1 Lux (Colour), 0.01 Lux (B/W), 0.0001 Lux (Low-shutter) @ 1.6 Sensitivity ●... -
Page 8: Contents Of Package
Perform the following steps to install the camera. PACKAGE CONTENTS VZM22INT960H Camera 12pin Interface cable Instruction manual CAMERA OVERVIEW / CONNECTIONS 1. Day & Night Zoom Lens Integrated lens with 22x optical and 16x digital zoom. - Page 9 9. TELE, WIDE Button Zoom control: Push "WIDE" for wide angle views and "TELE" to zoom in. 10. MENU Button Menu functions in the OSD display can be controlled when the OSD menu is activated. 11. NEAR & FAR Buttons Press the "NEAR"...
- Page 10 RS-485 connection: Connecting to the RS-485: The camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex. Connect Market Rx+, Rx- to Tx+ and Tx- of the RS-485 control system (VISTA, PELCO-P, PELCO-D) External Input: This is a dual state input that allows both...
-
Page 11: Camera Adjustment / Osd
External Lens Control External switching input from an external device to active either: Zoom on Alarm Input or camera DAY/NIGHT operation. RS-485 CONNECTION EXTERNAL A/D KEY CONTROL (VZM22/REM) To connect the VZM22/REM to the camera the following connections need to be made: VZM Cable VZM22/REM... - Page 12 MAIN MENU FOCUS MODE Select Auto, Manual, Push Auto mode. DISTANCE Select minimum focus distance between camera and object. (0.1 / 1.0 / 1.5 / 2.5 / 6m) D-ZOOM Digital Zoom On / Off D-ZOOM END Select maximum Digital Zoom magnification (x2 / x3 / x4 / x6 / x8 / x12 / x16) ZOOM PRESET Select zoom preset number, that you want to adjust in the...
- Page 13 WB MENU (White Balance) MODE Select white balance mode (AWB / WAWB / INDOOR / OUTDOOR / MANUAL / CRS) - AWB Auto white balance mode (2500 to 9500'K) - WAWB Wide range auto white balance mode (1800 to 10500'K) -INDOOR Indoor white balance mode -OUTDOOR...
- Page 14 -SHUT PRI Shutter priority exposure mode -MANUAL Manual exposure mode SHUTTER Select shutter speed. (1/50 to 1/10,000) (Note: Can only be changed while in SHUT PRI & Manual mode) GAIN Gain control (0 to 30dB) Digital slow shutter: On / Off MAX DSS Select maximum slow shutter value (x2 to x512) FLICKERLESS...
- Page 15 ALARM/MD MENU MODE Select alarm type, Motion Detection (MD), External input (EXT) or both (MD+EXT) (OFF / MD / EXT / MD+EXT) AREA SEL Select MD area number (1 to 4) Select MD enable/disable. DEFAULT Revert MD area to the default size & location ADJ TOP/LEFT Adjust the location of the MD area with boundary top and left...
- Page 16 PRIVACY MASK SEL Select mask area number (1 to 16) Select mask enable/disable DEFAULT Set mask area as default ADJ TOP/LEFT Adjust the location of the mask area with boundary top and left ADJ BOT/RIGHT Adjust the location of the mask area with boundary bottom and right COLOUR Select mask colour (1 to 8)
- Page 17 HI-RES Select high resolution mode (LOW / MID / HIGH) (Note: the camera is optimized to provide 960H resolution, changing the setting in HI-RES may appear to make the resolution better but this will be at the expense of digital artifacts (increased digital noise) being apparent in the image.
- Page 18 CAM SET CAM ID Select the camera ID (1 to 255) BAUD RATE Select serial communication speed (2400 / 4800 / 9600 / 19200bps) PROTOCOL Select the operating protocol. (VISTA-485 / PELCO-P / PELCO-D) DISP MODE Select display mode (On / Off / PUSH ON) ON –...
-
Page 19: Troubleshooting & Maintenence
SAVE Save preset parameters of CAM SET MENU. This must be done if changes to the BAUD RATE or PROTOCOL are made TROUBLESHOOTING AND MAINTENANCE TROUBLESHOOTING If problems occur, check the installation of the camera with the instructions in this manual and with the other equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. -
Page 20: Dimensions
DIMENSIONS... -
Page 21: Specifications
SPECIFICATIONS MODEL VZM22INT960H Image Sensor 1/4" 960H EXview HAD CCD II Resolution 700TVL (Colour & Monochrome) Total Pixels 1028(H) x 596(V) Scanning System 2:1 interlace Scanning Frequency 15.625KHz(H), 50Hz(V) Sync. System Internal Optical / Digital Zoom 22:1 Optical / x16 Digital Focal Length 3.9 mm - 85.8 mm (F1.6 - 3.7) - Page 22 Norbain SD Ltd, 210 Wharfedale Road, IQ Winnersh, Wokingham, Berkshire RG41 5TP United Kingdom VZM22INT960H Manual version 1.0 (Manual is subject to change without notice) 50302760A...
