Summary of Contents for Gold Line GL386

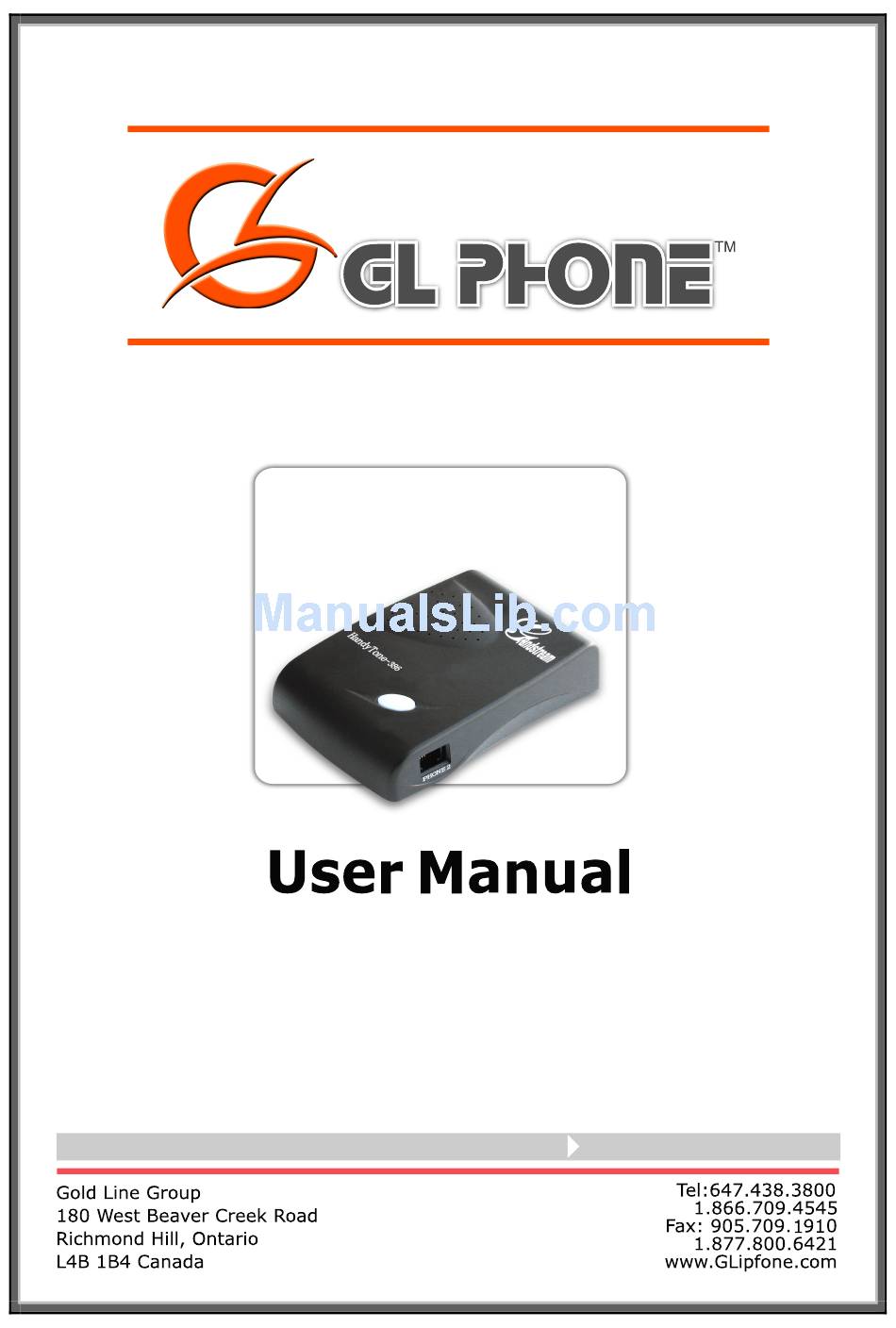

- Page 1 Adapter GL386 User Manual is available in other languages at www.GLipfone.com...
- Page 3 GL386 User Manual Contents: Chapter 1 Introduction ---------------------------------------------------------------- Chapter 2 Getting to Know the Phone Adapter -------------------------------------- Chapter 3 How to Connect the Cables ----------------------------------------------- Chapter 4 Making Phone calls -------------------------------------------------------- Chapter 5 911 Registration ----------------------------------------------------------- Chapter 6 Star Command Services and Messages ----------------------------------- 9...
- Page 4 Chapter 1 Introduction Gold Line Group is proud to announce its revolutionary new product, GL 386 adapter; a state-of-the-art IP based telephony service that is used with your Internet connection. GL Phone is a telephone that operates over Internet rather than over telephone lines.
- Page 5 Chapter 2 Getting to Know the Phone Adapter Adapter Ports (Figure 1 & 2) The Phone Adapter’s ports are located on the back and one side. PHONE 1 Port for your primary Internet phone line, allows you to connect your telephone to the Phone Adapter using an RJ-11 telephone cable (not included).
- Page 6 Chapter 3 How to connect the cables This chapter gives instructions on how to connect the Phone Adapter to your network, telephone or fax machine. Figure 3 is a diagram displaying a typical connection setup. (Figure 3) Internet Cable/DSL Router Phone adapter Telephone modem...
- Page 7 Figure 5 3. Connect the included power adapter to the “DC 5V” port on the back panel of the Phone Adapter. Connect the other end to a standard electrical outlet. (Figure 6) Figure 6 4. The phone LED button will be frequently lit in red when the Phone Adapter is not ready for use.
- Page 8 To summarize, below are the steps to install a GL-386: 1. Connect a standard touch-tone analog telephone (or fax machine) to Port 1. 2. Connect another standard touch-tone analog telephone (or fax machine) to Port 2. 3. Insert a standard telephone cable into the LINE port of GL-386 and connect the other end of the telephone cable to a wall jack.
-
Page 9: Making Phone Calls
Chapter 4 Making phone calls Calling phone or extension numbers There are currently two methods to call an extension number: a) Dial the numbers directly and wait for 4 (default) seconds. b) Dial the numbers directly and press # Examples: •... -
Page 10: How To Register
Chapter 5 911 Registration GL Phone service does not support traditional 911 or E911 access to emergency services. We offer a feature known as "911 Dialing" which is a limited emergency calling service that differs from traditional 911 or E911 emergency services calling. You should familiarize yourself with the contents of this page and follow all necessary requirements and directions. - Page 11 Terms of Service By accepting the Terms of Service, the Customer acknowledges and understands the following; ♦ 911 Services are not automatically set for this phone service and it is the responsibility of the Customer to activate such services. ♦ It is the responsibility of the Customer to ensure that his/her family and other potential users of this Service are aware as to how to use the 911 Services.
- Page 12 Chapter 5 Star Command Services and Messages GL Phone, like other telephone services, provides many different services for its users. All these services are available by default in the factory settings of the phone. Commands start with * and are followed by one or two numbers or characters. For ease of use, these services are activated and deactivated using almost the same procedure.
- Page 13 Reject is rejected by callee. Rejection is ON or OFF. Caller’s phone number is *67+1(area code)+number*# Call Id Block/per hidden if command is call entered before *67+011+(country code)+number*# telephone number Alerts of incoming calls Call waiting is ON or Call Waiting *68# *78# and allows switching...
- Page 14 Chapter 6 Using Voicemail 3 (Advanced options) 1 (Send a reply) 3 (Hear the msg envelop) 5 (Repeat) 5 (Leave a msg) 6 (Next msg) * (Return to main menu) Date & Time Announcement 7 (Delete) Date & Time Announcement 4 (Previous msg) 8 (Forward To another user) 3 (Advanced options)
-
Page 15: Frequently Asked Questions
Chapter 7 Frequently Asked Questions 1. Q: What are the customer service access numbers? A: You can access a customer service representative from your GL Phone by dialing *0. If you are calling from a phone other than GL Phone, please use the following access numbers: Toll free: 1.866.709.4545 Local Toronto: 1.647.438.3800... - Page 16 A: Our system will automatically detect your location but the service will not be accessible if you are not located in North America. 11. Q: How do I add an additional number with a different area code to my account? A: Call our customer service for additional information regarding cost and area codes available.
- Page 17 A: You may have activated the “send all calls to voicemail” service. Dial *53 to deactivate it. 23. Q: I forgot my Voicemail PIN. How do I get a new one? A: Call our customer service center by dialing *0 or Toll-free number 1.866.709.4545.
- Page 18 Notes:...
