Johnson Controls S1-CVD070T01A Owner's Manual

Johnson Controls
Unitary Products
PLEASE LEAVE THIS MANUAL WITH THE HOMEOWNER
Installed by: _________________________________ Installer Phone: _______________________ Date Installed: _______________

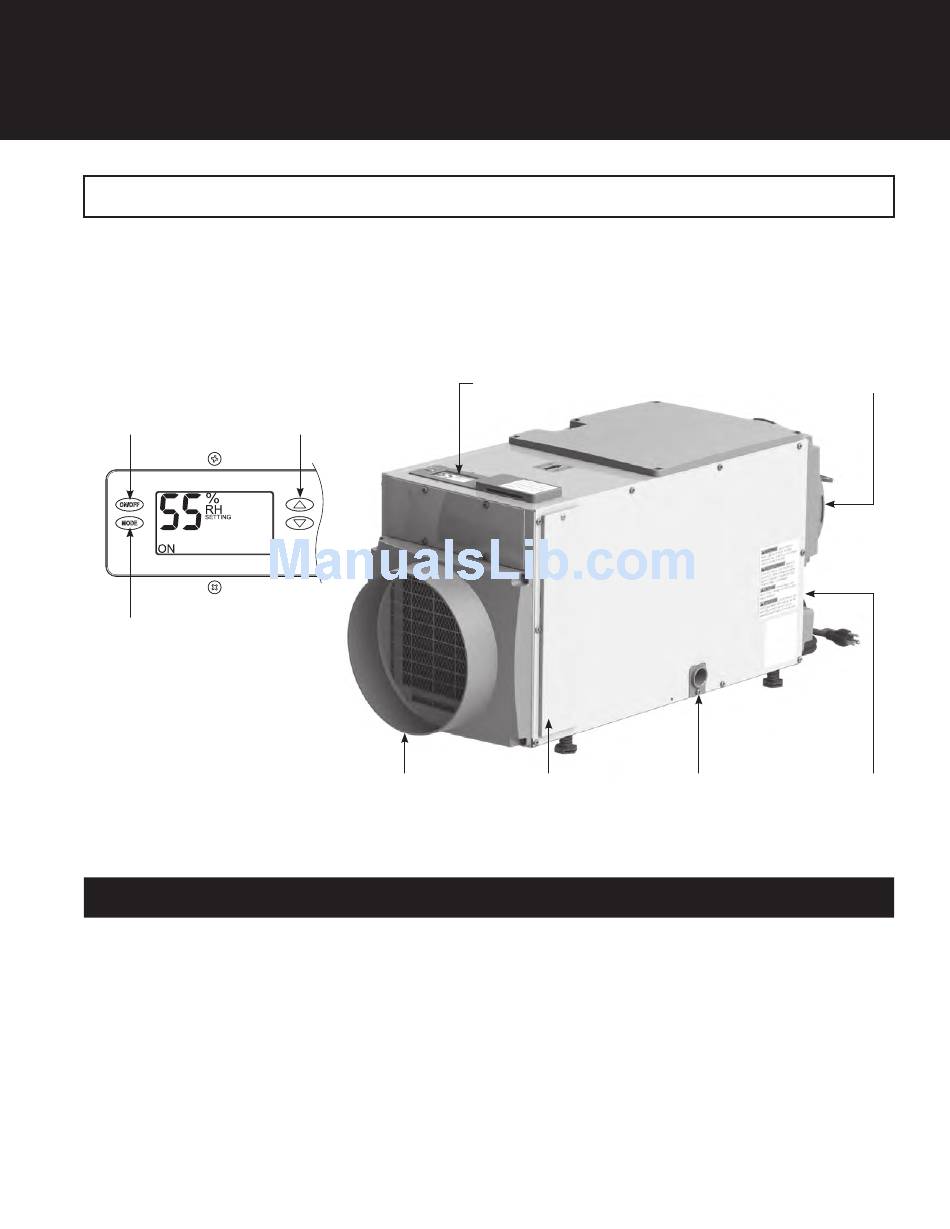

ON/OFF button
used to turn buttons used to
dehumidifier on change humidity
and off
MODE button
used for optional
ventilation feature
WHOLE HOME DEHUMIDIFICATION
The Central Dehumidifier controls the humidity level in your entire home. A powerful blower inside the dehumidifier draws air into the cabinet,
filters the air and removes moisture, then discharges the dry air into the HVAC system or dedicated area of the home. Inside the cabinet, a
sealed refrigeration system removes moisture by moving the air through a series of tubes and fins that are kept colder than the dew point of
the incoming air. The dew point is the temperature at which moisture in the air will condense, much like what occurs on the outside of a cold
glass on a hot summer day. The condensed moisture drips into the dehumidifier drain pan to a drain tube routed to the nearest floor drain or
condensate pump. After the moisture is removed, the air moves through a second coil where it is reheated before being sent back into the home.
The air leaving the dehumidifier will be warmer and drier than the air entering the dehumidifier.

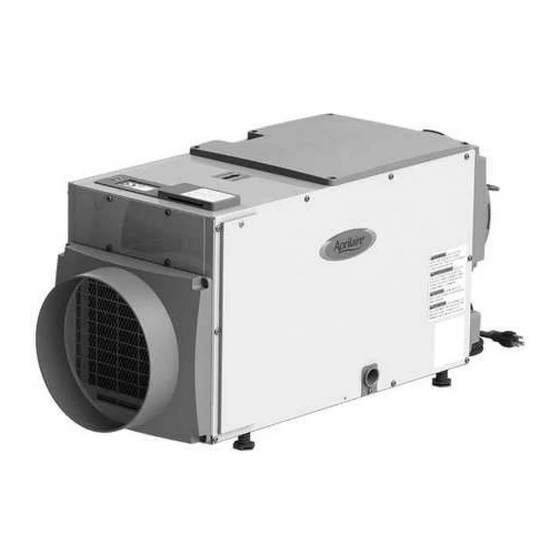

S1-CVD070T01A / S1-CVD095T01A / S1-CVD130T01A
Up/Down
setting
Inlet
Central Dehumidifier Owner's Manual
Dehumidifer Control
Filter Access
Door
Outlet
Drain Power
Switch
90-1874
