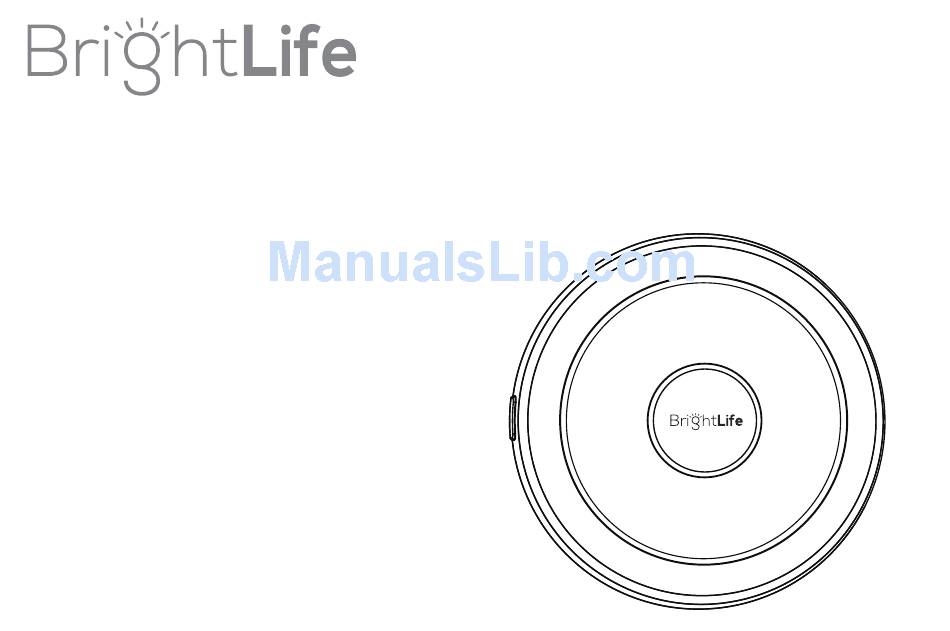

User Manual Zigbee Range Extender Ceiling Type BrightLife www.sa-brightlife.com BrightLife is a registered trademark of Circuit Cells Co. www.ccc-ksa.com... -
Page 3: Table Of Contents
Content Welcome to use BrightLife Product Display Features Mobile Application Installation Instructions Operation Preparation (Option 2 camera gateway) Installation Instructions Important Installation Instructions Specification Parameter Purchase Information... - Page 4 trademarks of their respective owners. ● Please read this manual carefully for the proper use of this product. ● BrightLife Smart Repeater (hereinafter referred to as “this product”) is a smart home product of BrightLife. This product shall be used with “BrightLife In Hand” App as well as the supplied accessories. BrightLife is not responsible for any loss due to improper installation and/or usage of this product. ● Please check BrightLife website periodically for manual and App updates availability and other relevant publications. ● Using this document does NOT give the user the authority/right to copy all or part of the contents of this manual, without the written consent of BrightLife. Any illegal or unauthorized use of this document or its content including BrightLife logo and trademarks, will be pursued according to law. ● For more information about BrightLife products, Please visit : www.sa-brightlife.com...
-
Page 5: Product Display
Product Display Indicator Function Key Power Socket Front Side of Main Body Back Side of Main Body... -
Page 6: Features
Features ● Support IEEE 802.15.4 ZigBee/SmartRoom protocol. ● Strengthen Zigbee network signal, and expand communication network coverage area. ● It’s elegant in appearance and design. Made of high shock-resistance and temperature - resistance material, shell is sturdy and durable. -
Page 7: Mobile Application
Mobile Application In order to configure and use this product, you will need to download “BrightLife in Hand” mobile App. The application is available for both iOS and Android platforms. You search for the application in the online store, or, you can visit www.sa-brightlife.com and scan the QR code available there to redirect you to the application in the online store. -
Page 8: Installation Instructions
Installation Instructions Option 1 Installation Conditions: The wall or ceiling already has hole drilled (or drilling a hole is possible). The hole required for this option should be (68mm to 80mm). Installation List: Repeater Main Body / Ceiling mounting base Step 1: Attach the ceiling mounting base to the repeater main body. (Aim the mounting slots on the base to the equivalent on the Repeater Main Body and rotate accordingly). Mounting Slot Mounting Slot Main Body Base (ceiling) - Page 9 Installation Instructions Option 1 Step 2: Connect with power line. CAUTION: Disconnect electricity before installation. Be careful as electric shock is increasingly possible. Non-professionals installation is strictly prohibited.
-
Page 10: Operation Preparation (Option 2 Camera Gateway)
Operation Preparation (Option 2 camera gateway) Option 1 Step 3: Pull up the spring, and then push the repeater and the power line in the mounting hole to complete installation. -
Page 11: Installation Instructions
Installation Instructions Option 2 Installation Conditions: The ceiling or wall does not have a hole already drilled, and drilling a 75mm hole is not possible. However, small holes can be drilled to the ceiling or wall to fix screws. Installation List: Repeater Main Body, Wall-mounting Base, Screws support and Screw. Step 1: Fix Wall-mounting base on the wall/ceiling with 2 screw support units and screws (provided in the package). - Page 12 Installation Instructions Option 2 Step 2: Connect with power line.
- Page 13 Installation Instructions Option 2 Step 3: Attach main body to the base, rotate clockwise until the repeater is in place.
-
Page 14: Important
Important Connectivity Scenario Smartphone Tablet Smart Multifunctional Gateway IR Motion Detector Important: Please make sure the gateway (purchased separately) is working properly. Ensure that this product is installed within the effective communication range of the gateway. -
Page 15: Installation Instructions
Installation Instructions Join Zigbee Network [System Indicator] flashes for 4 times first, and then goes OFF after staying lit for 2 seconds. This indicates the joining Zigbee network was successful. 1. Quickly click [Multi-Functional Key] 4 times... - Page 16 Important Exit Zigbee Network [System Indicator] Flashes 4 times and then goes off, indicating that exiting Zigbee network was successful Push and hold for 10s Notes: This product restores to factory setting when exiting ZigBee network.
-
Page 17: Specification Parameter
Specification Parameter Communication Protocol IEEE 802.15.4 (ZigBee/ SmartRoom) Antenna Type PCB Antenna Power Parameter AC 110-240V Transmission Distance 100 M (Visual) Material & Color PC, White Installation Method Ceiling-mounted, Wall-mounted Dimension (Diameter x 98 × 46 Thickness, mm) Net Weight (g) 105.3 Flame Retardant Rating UL94 V-0 Temperature -10℃ ~ +45℃ Operating Temperature and Humidity Humidity ≤95%RH (Noncondensing) -
Page 18: Purchase Information
Purchase Information Product Name Smart Repeater Part Number BLCORECEAC-1-01-008-16 Material/Color PC, White... - Page 20 BrightLife Email: info@brightlife.com - www.sa-brightlife.com Circuit Cells Co. P.O. Box 6709, Riyadh 12281 BrightLife is a registered trade mark of Circuit Cells Co. All rights reserved ®...
