Golding Audio DVS1080 Manual

Hd compact video audio player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
G G
)
)
A
)
Golding Audio Ltd
Typical Applications: Interactive kiosks
Features
Two default modes: Basic play
Interactivity :
DVS1080
HD Compact video audio player
Manual iss1 04-01-2012
Theme park attractions
Point Of Sale
In-vehicle video systems
Digital signage
Direct trip
Supports 8 buttons
PIR input (trip 1)
Serial port control
www.goldingaudio.co.uk
T: +44 (0)1206 762462 F: +44 (0)1206 762633
8 Peartree Business
Centre
Stanway
Colchester
Essex
CO3 0JN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVS1080 and is the answer not in the manual?

Questions and answers

Summary of Contents for Golding Audio DVS1080

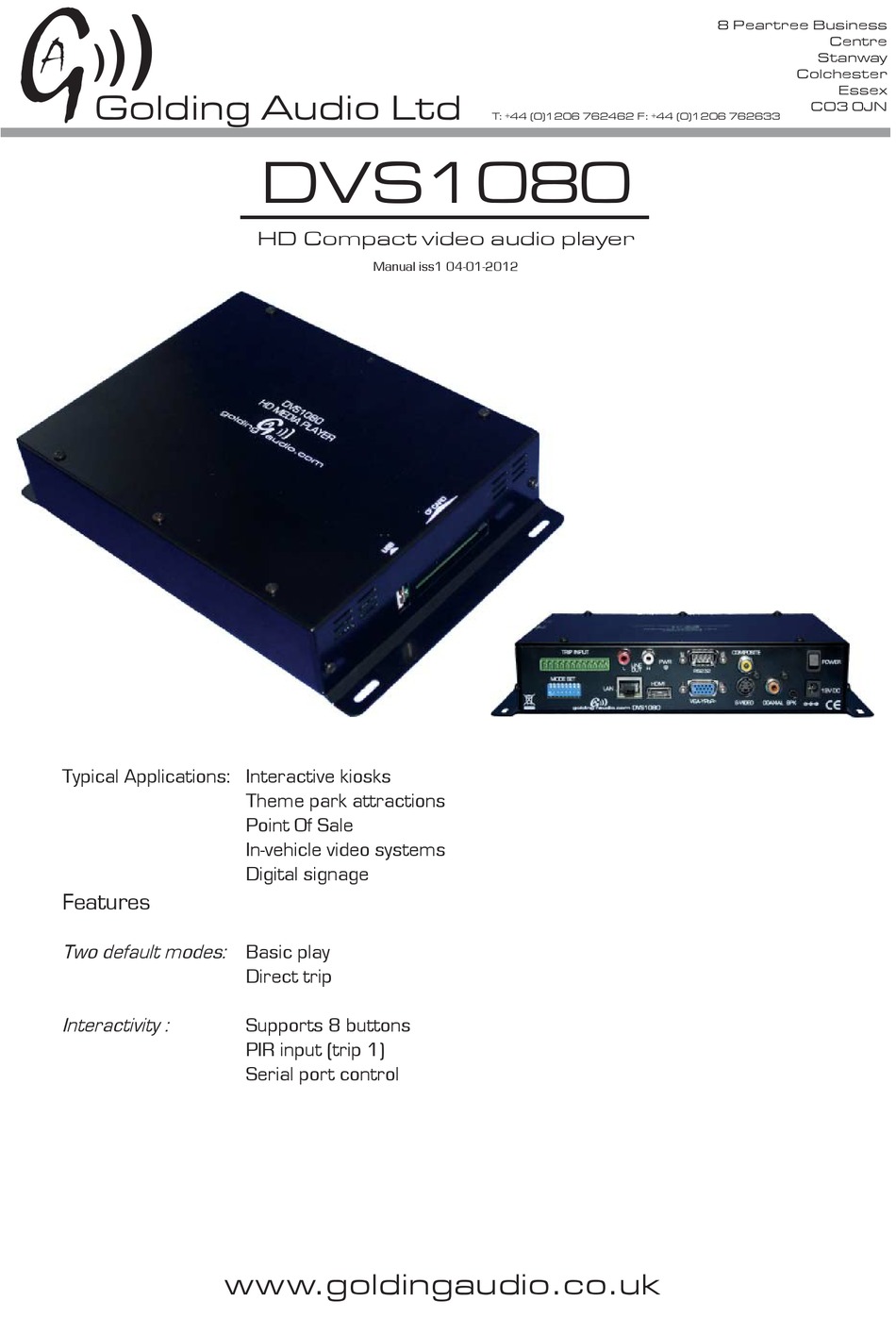

  • Page 1 8 Peartree Business Centre Stanway Colchester Essex Golding Audio Ltd CO3 0JN T: +44 (0)1206 762462 F: +44 (0)1206 762633 DVS1080 HD Compact video audio player Manual iss1 04-01-2012 Typical Applications: Interactive kiosks Theme park attractions Point Of Sale In-vehicle video systems...

  • Page 2: Table Of Contents

    Table of Contents Page Introduction Guide to the DVS1080 Basic setup Compact Flash card Video content JPEG images Display DIP switch settings I/O Pin-out connections OSD configuration menu Operating modes Basic play mode Direct trip mode Specifications 4.1 Hardware 4.2 Video content...

  • Page 3: Introduction

    1 Introduction 1 Introduction The DVS1080 is a powerful yet easy to use commercial HD (High Definition) digital media player designed for retail point of purchase (POP) product promotions, product demonstration videos and similar applica- tions such as museum information displays.

  • Page 4: Basic Setup

    2 Basic setup 2 Basic setup When powered on the DVS1080 will automatically start to play video or still images found in the media folder of an installed Compact Flash (CF) card. Files will be played in alphanumeric order. (if no playlist file (.pll) is present) Basic setup involves 4 main steps: 1.

  • Page 5: Dip Switch Settings

    2.5 DIP Switch settings: 2.5 DIP Switch settings: HDMI/DVI HDMI/DVI Component (YPbPr) Component (YPbPr) 1920x1080p 1920x1080p 1920x1080i @60Hz 1920x1080i @60Hz HDMI/DVI HDMI/DVI Component (YPbPr) Component (YPbPr) 1280x720p 1280x720p 1280x720p @60Hz 1280x720p @60Hz HDMI/DVI HDMI/DVI Component (YPbPr) Component (YPbPr) 1600x1200 1600x1200 NTSC NTSC HDMI/DVI...

  • Page 6: Osd Configuration Menu

    2) Using the USB update process. The new media, and playlist if required, is copied to a USB flash drive. This can then be updated to the DVS1080’s CF card using the USB update process, refer to the application note.

  • Page 7: Operating Modes

    3 Operation Modes. The DVS1080 unit can operate in various modes but is shipped to operate in one of the two modes detailed below. If you re- quire control options or specific interactivity other than those listed below, please contact us to discuss your requirements.

  • Page 8: Direct Trip Mode

    Trip inputs: Trip inputs: Accessing trip 1 replays TRACK1.MPG, accessing trip 2 replays TRACK2.MPG etc. After playback of a particular track has finished the, DVS1080 will display the ’STANDBY.MPG’ file until a new valid trip input is applied. One shot operation: One shot operation: Trip inputs have one shot operation i.e.

  • Page 9: Direct Trip Mode

    DVS1080 are being played. This file can be replaced by another video file with the same name contain ing text, a logo, a still image or a video track. This new file will then be displayed whenever the DVS1080 is not playing a tripped file.

  • Page 10: Specifications

    4. Specifications 4. Specifications 4.1 Hardware 4.1 Hardware Playable formats MPEG-2 (.mpg) MPEG-4 DivX (.avi) MPEG-4 H.264/AVC (.ts / .mp4 / .mov*) JPEG (.jpg) up to 1920x1080 pixels Note: Depending on the features desired, customer/purchaser may be required to obtain a video codec license with the relevant organisations.

  • Page 11: Video Content

    4.2 Video 4.2 Video The following are the recommended encoding specifications for video content on the DVS1080. MPEG-4 Screen size (recommended) 16:9 screen (e.g. 1280x720, 1920x1080) H.264 Resolution 1920x1080 specifications Encoding bit rate 12-15Mbit/s Audio bit rate 224Kbit/s, 48kHz at 16bits sample rate Frame rate 25Hz / 29.97Hz...

  • Page 12: Advanced Functions

    Firmware upgrade: From time to time the operating system of the DVS1080 may be upgraded providing bug fixes and new features. With compatible hardware it is possible to install these upgrades through a simple process.
